Applications
The DSP9612 modem is designed for point-to-point and multipoint
data communications. Figure 1-1 shows a typical multipoint
configuration.

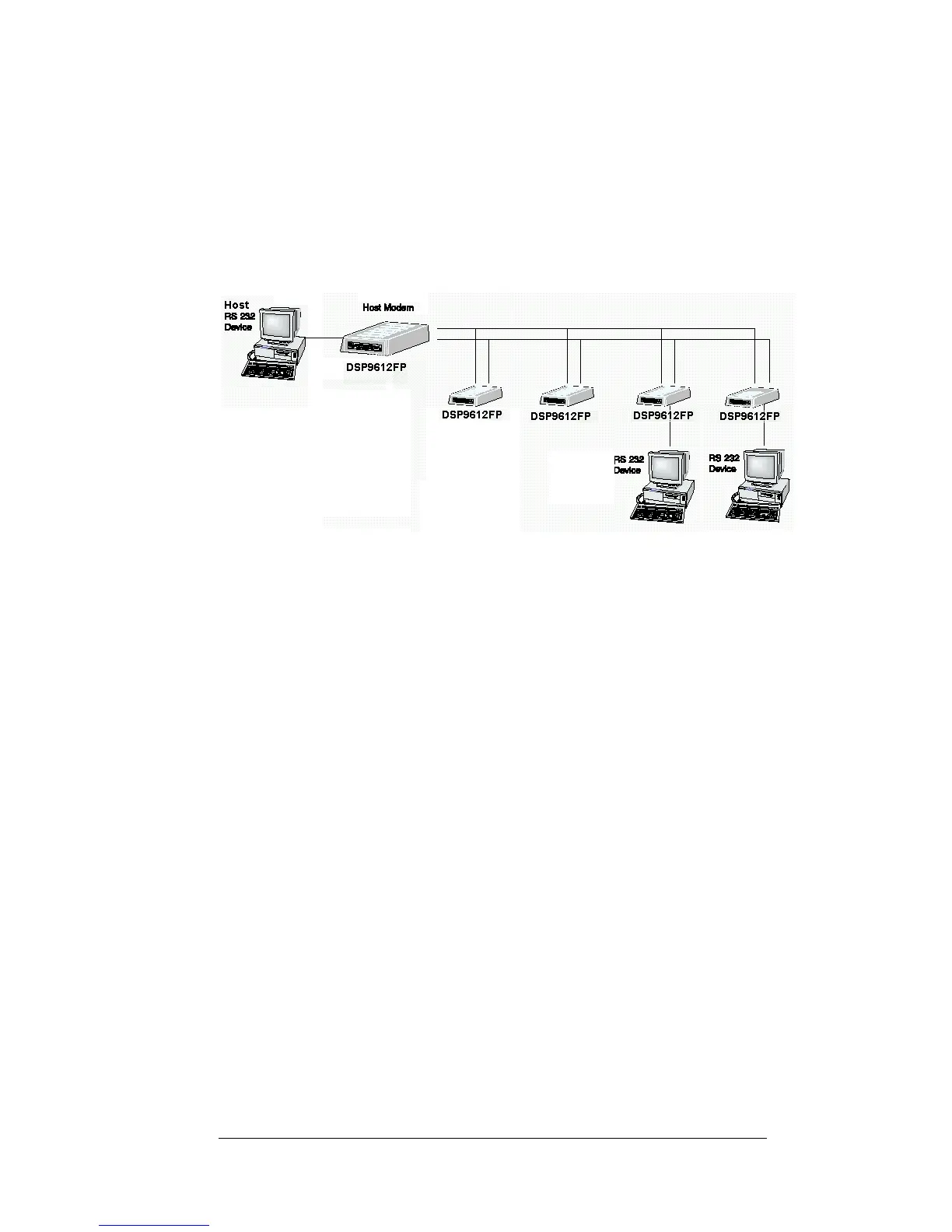

Figure 1-1. Network of Multipoint Configuration
There are a number of factors that can affect the network’s and
modem’s operation and performance. These include:
Operating speed
2-wire or 4-wire configuration
Transmission line characteristics, noise, and line impairments
Network configuration (point-to-point or multipoint)
Number of nodes on the network
