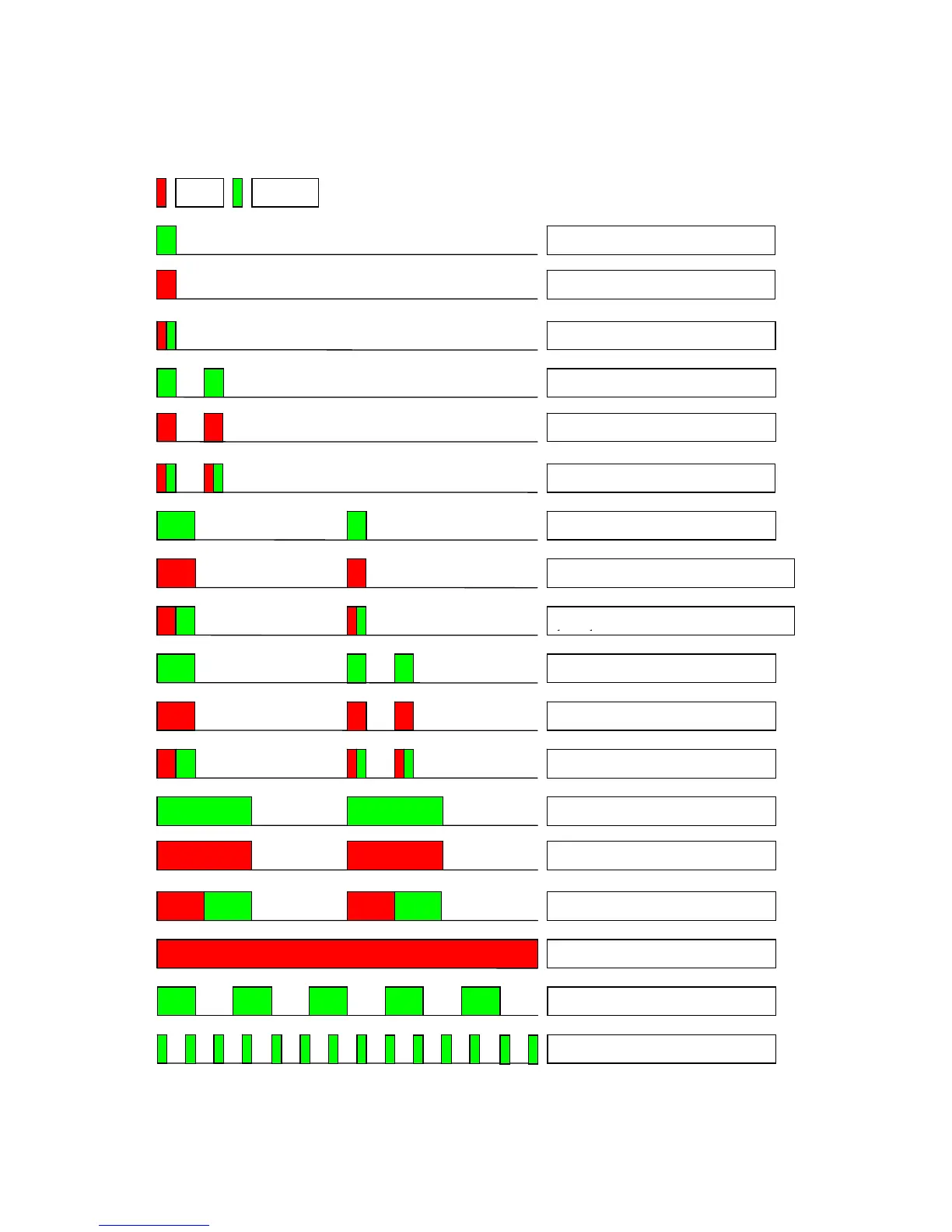

Table 2.6.1-1
LED Indications (Continued)
Red Green
Batt OK, Slave logged on to network
Batt LOW, Slave logged on to network
Batt CHARGING, Slave logged on to
Batt OK, Master
Batt LOW, Master
Batt CHARGING, Master
Batt OK, CONNECTED Slave logged
Batt LOW, CONNECTED Slave logged
Batt CHARGING, CONNECTED Slave
ld
Batt OK, CONNECTED Master
Batt LOW, CONNECTED Master
Batt CHARGING, CONNECTED
Batt OK, Out of Range
Batt LOW, Out of Range
Batt CHARGING, Out of Range
POWER_UP or MALFUNCTION
SW DOWNLOAD READY
SW_DOWNLOADING
