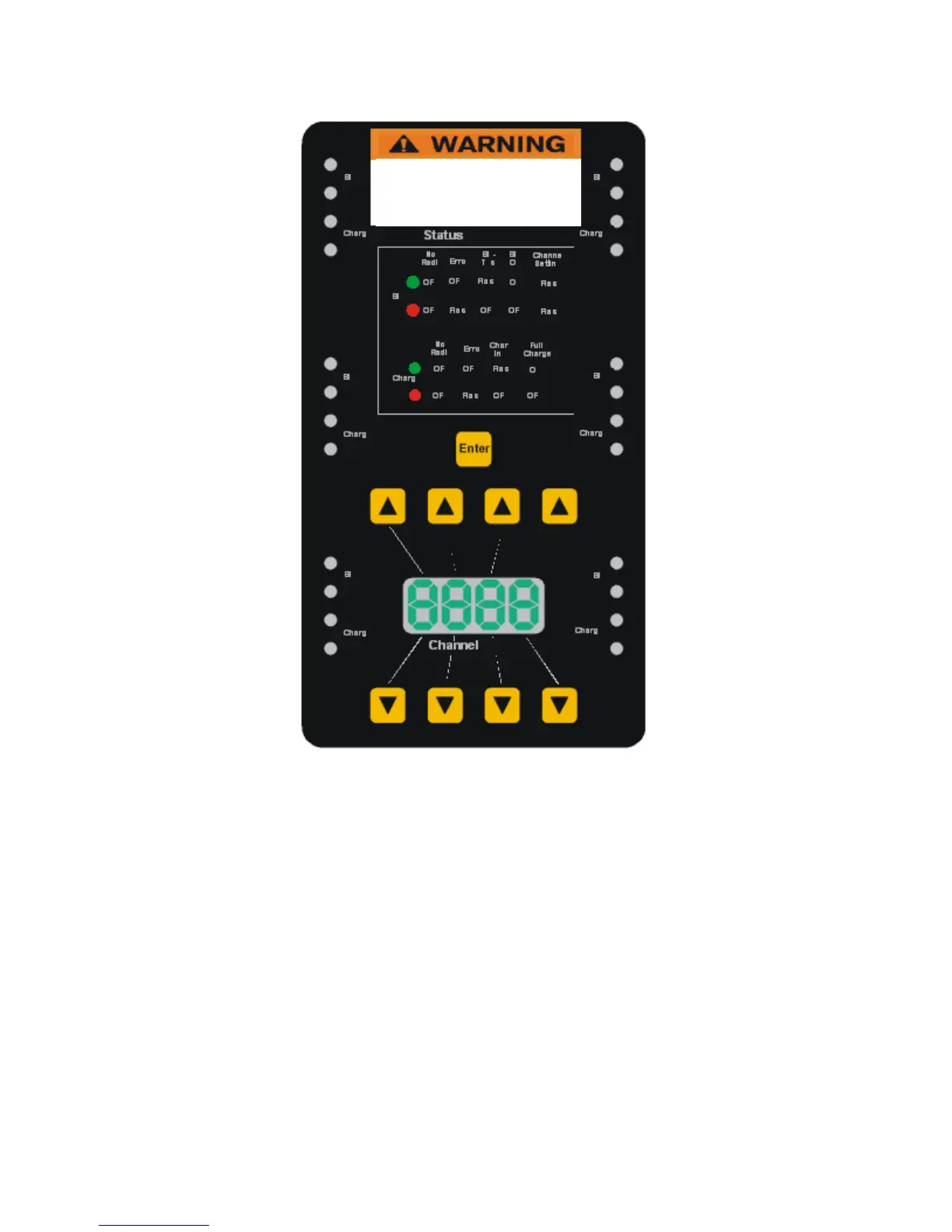

Figure 5.2-2. TSS Display Overlay
5.3 CHARGE INDICATION
The display overlay consists of two LEDs (red and green) for charge indication at each TPT plug-in
bracket. The charge LED indications are shown in Table 5.3-1.
