T ELEPHONICS C ORPORATION
TM115007 REV A (04/07) B-9
USE OR DISCLOSURE OF DATA CONTAINED ON THIS PAGE IS SUBJECT TO THE
RESTRICTION ON THE TITLE PAGE OF THIS DOCUMENT.
C
OMMUNICATION S YSTEMS D IVISION

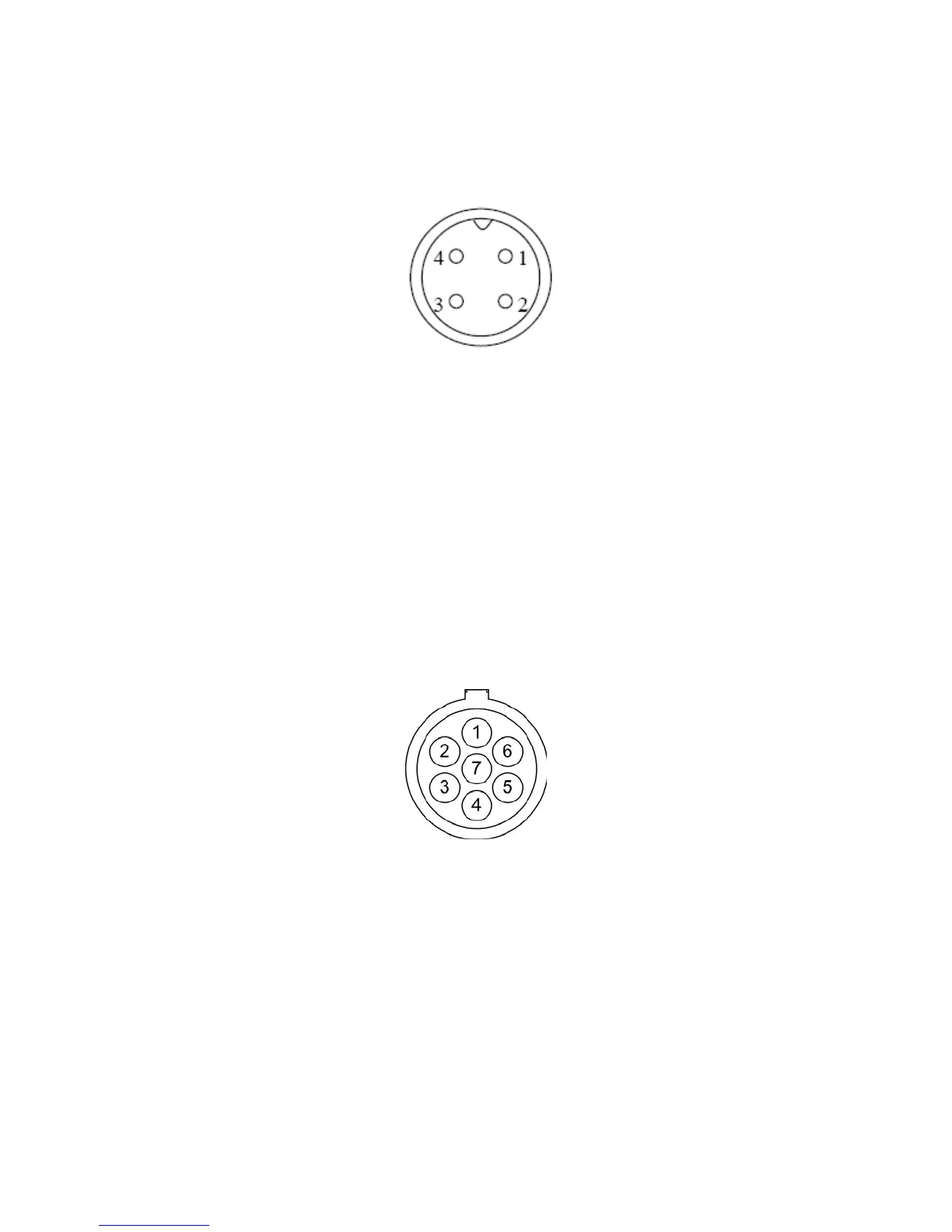

TSS CONNECTORS
Power Input
Connector: AMPENOL T3110000
Pin 1 – Neutral
Pin 2 – Line
Pin 3 – Not Connected
Pin 4 - Ground
TPT Plug-in Bracket Connector for SS.
The TPT plug-in bracket connector is a NEXUS plug connector having four segmented connections
as shown below:
DUAL PORT TRANSCEIVER CONNECTORS
Headset Interface
The connector is a female 7-pole ODU/Lemo type jack.
Figure 1. Headset Connector Outside View
CONNECTOR PIN-OUT
The pin-out of the connector is defined as:
