4. INPUTS – 1. WIRING
Zone connection styles
Set connection style for zones – it is common for all used zones in the system, including the
keyboard zones. Choose a number from according the realized zone connection.
ECLIPSE 8 supports only single connection in the zones.
ECLIPSE 16 supports only single connection in the zones.
ECLIPSE 32 supports both single and doubling connection in the zones.

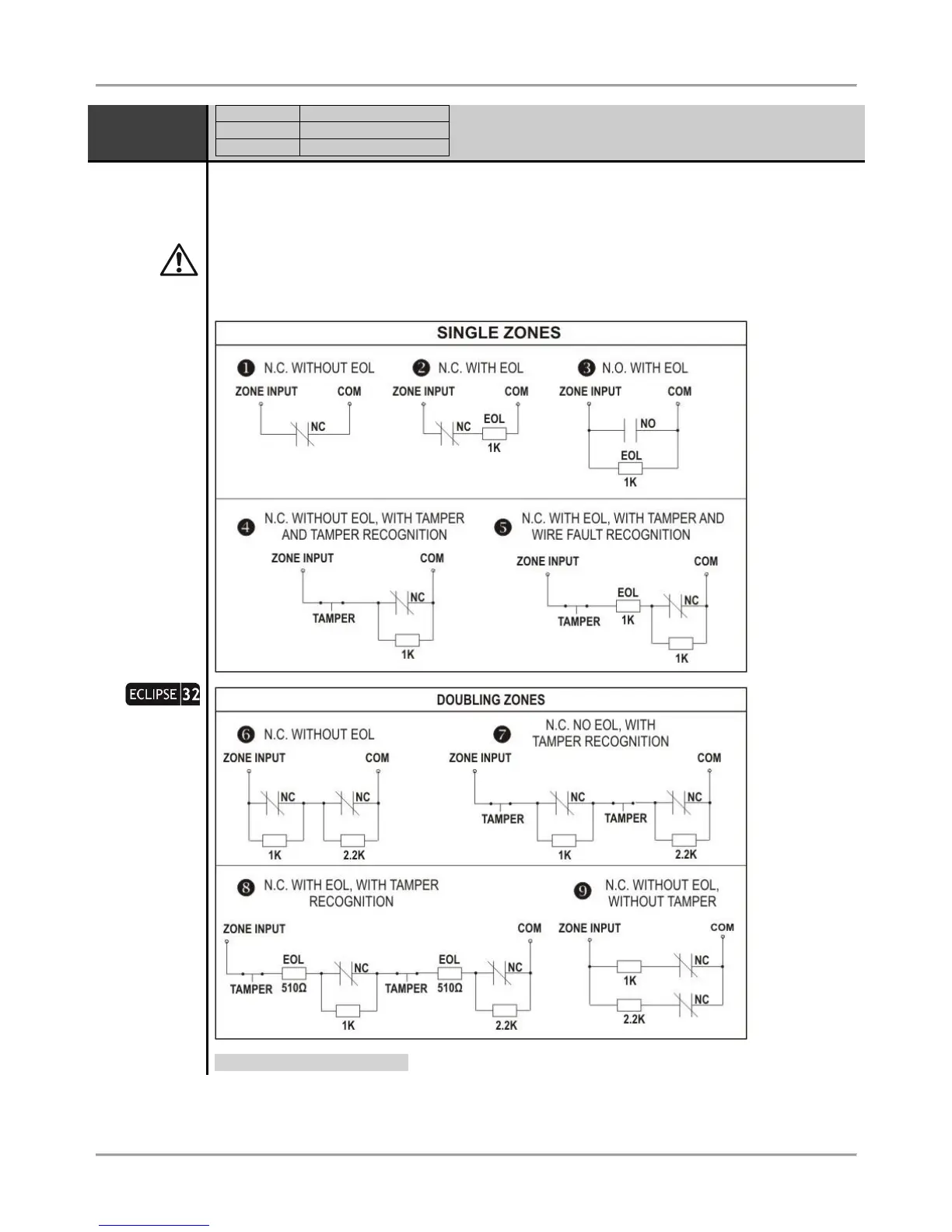

Connection Style Diagrams:
Default connection style: [2]
