Teletek electronics ECLIPSE 32 - APPENDIX 5. Text Tree-Structure Menus

Eclipse 8/ 16/ 32 Series - Engineer Programming Manual
84
APPENDIX 5. Text Tree-Structure Menus ECLIPSE Series
To the 2. SETTINGS Menus
There are several ways for setting parameters in text menus – that depends on the
menu:
- When the submenu allows choosing only one option or attribute, or parameter
from a list, the installer scrolls down to the desired one and confirms his choice with
button. The set option is displayed with a “check” mark in front of it. The exit of
the submenu is automatic. See Example 1.
- When the submenu allows choosing of several options or attributes, or parameters
at the same time then the installer has to scroll down to each one and to enable it with
pressing the button. The set option is displayed with a “check” mark in front of it.
The installer has to move to the next option using the arrow buttons and so on. To
disable an option scroll down to it and press button – the “check” mark will be
deleted. When all the desired options are selected, the choice is confirmed with
button. See Example 2.

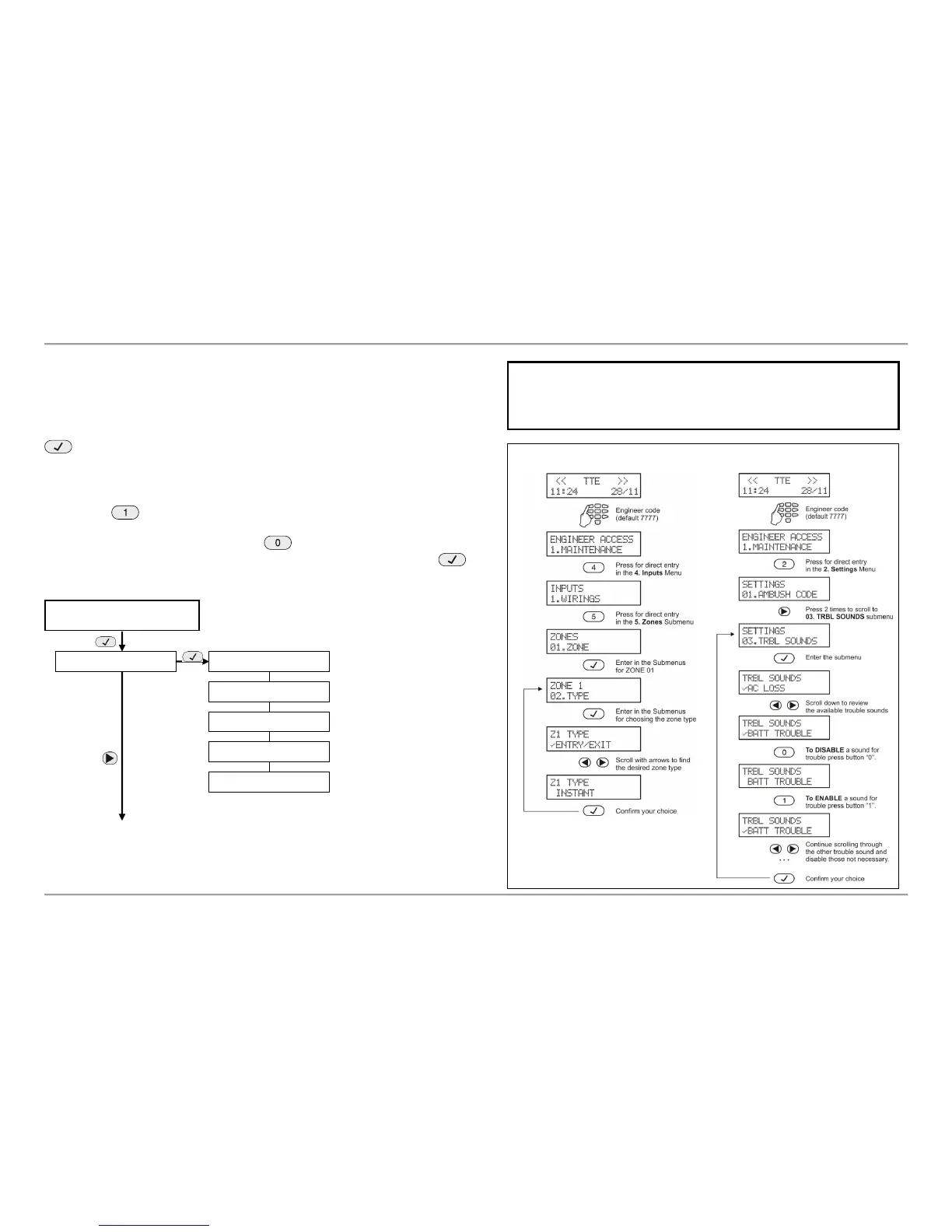

Example 1 (ECLIPSE 8)
Example 2 (ECLIPSE 8)
The text menus are available only in operation with LCD keyboard!
Some of the text menus are not available in ECLIPSE 8/ 16 Control panel -
refer to the detailed descriptions in item 7!
Engineer Code (7777)
1. MAINTENANCE
1. VIEW LOG
2. WALK TEST
3. PGM TEST
4. COMMTEST
5. SW REVISION
