Eclipse 8/ 16/ 32 Series - Engineer Programming Manual
4
1. GENERAL INFORMATION
ECLIPSE Series are control panels providing security and management of small and medium residential or office sites.
The ECLIPSE family includes:
ECLIPSE 8 for management of small sites up to 8 zones organized in 1 common area.
ECLIPSE 16 for management of small to medium sites up to 16 zones organized in 3 independent areas.
ECLIPSE 32 for management of medium sites up to 32 zones and 8 independent areas.
The programming of options, parameters and attributes is organized in menus and the engineer can choose among
three programming styles according his preferences:
1. 4-digit addresses;
2. 3-digit operations;
3. Text menus (tree-structure).
The default programming style is the one using text tree-structure for the engineer menus. To change the programming
style at the beginning you have to enter first the engineer menu with valid code (7777 by default) and choose in
sequence:
7777 – 2.SETTINGS – 14. MENU STYLE: TEXT, ADDRESS or OPERATION
Confirm your choice with ENTER button – the keyboard will confirm the operation with a sound signal. The next
entering in the engineer menu will be with the selected programming style.
For installer’s convenience, the menus in this manual are presented with all programming styles as they are pointed at
the head and the functionality in details is described in the table under it.
The engineer menus are available for programming only when the system is disarmed and the engineer
access is enabled from the Manager programming menus.

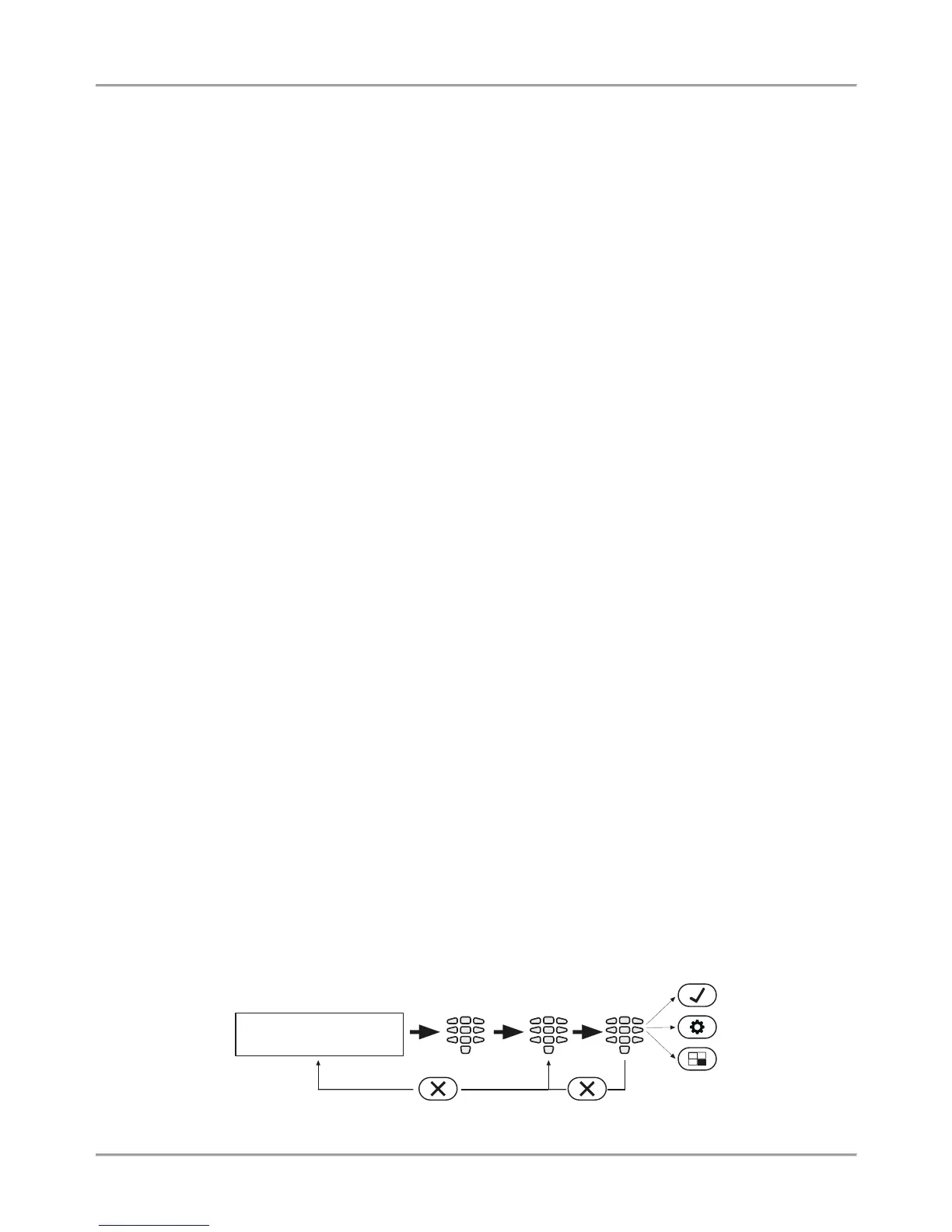

General information about the programming styles
4-digit addresses. The programming of the system parameters is organized with 4-digit address codes. The
menus have the following structure:
o 0ххх – General Settings Menu.
o 1xxx – General User Menu; 1uuy – User Settings, where “uu” is a user number from 01 to 64, and “y” is an
option.
o 2xxx – General Zone Settings Menu; 2zzy – Zone settings, as “zz” is a zone number from 01 to 32, and “y”
is an option.
o 3xxx – General Setting for PGM 4; 3ppy – Settings for PGMs, as “pp” is a PGM number from 01 to 32, and
“y” is an option.
o 4xxx – General Areas Menu; 4aay – Area Settings, as “aa” is an Area from 01 to 08, and “y” is an option.
o 5tty – Timeslots Settings, as “tt” is a time slot number from 01 to 08, and “y” is an option.
In addition, at addresses 5411 to 5524 are set holidays and nonworking days by months.
o 60хх – General Settings for the digital communicator; 6nny – Phone Settings, as “nn” is a phone number
from 01 to 04, and “y” is an option.
o 61xx – General settings for the voice dialer; 61ny – Phones settings, as “n” is a phone number from 1 to 8,
and “y” is an option.
o 69хх – General settings for UDL remote programming.
o 8ddy – Device Menu, as “dd” is a device number from 01 to 31, and “y” is an option.
Note: The Device 01 is always the main PCB of the control panel.
