PGM 4 has a special functionality and can be programmed for different operation in ECLIPSE 8/32/99 control panels.
In ECLIPSE 8, when set at address 3000, PGM 4 can be used for serial connection to TP2000 transmitter. The
serial link is realized with connection between the AC terminal of the transmitter and PGM 4 on the ECLIPSE 8 –
Figure 21.

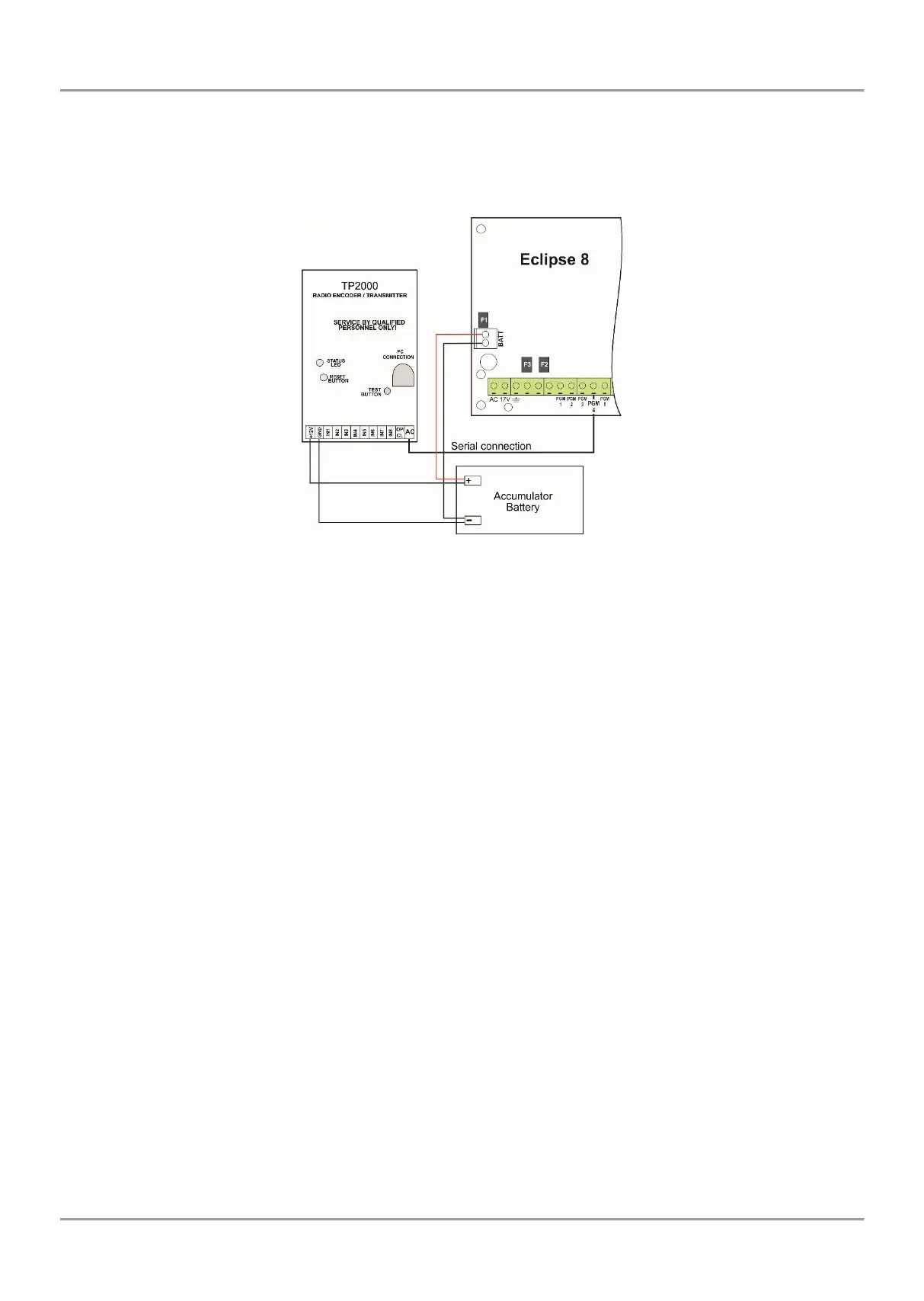

Figure 21. Serial connection between TP2000 transmitter and ECLIPSE 8 control panel
In ECLIPSE 32 and ECLIPSE 99, when set at address 3000, PGM 4 can be used for fire zone operating with
standard 24V fire base – see Figure 12 D.
