MAX MAX
# #
STATIONS RELAY
RS485 LINK TO UP TO
16 REMOTE MODULES
INTERNAL TERMINATION
RESISTOR AT LAST UNIT
Up to 48 remote sensors consisting of
Up to 16 hot cathode remote modules
(with no displays) each with up to
2 additional sensors in a daisy
chain hook up of up to 4000’
* optional local thermocouple,
convection, diaphragm or cold
cathode gauges. Maximum is
2 additional sensors but only 1
cold cathode

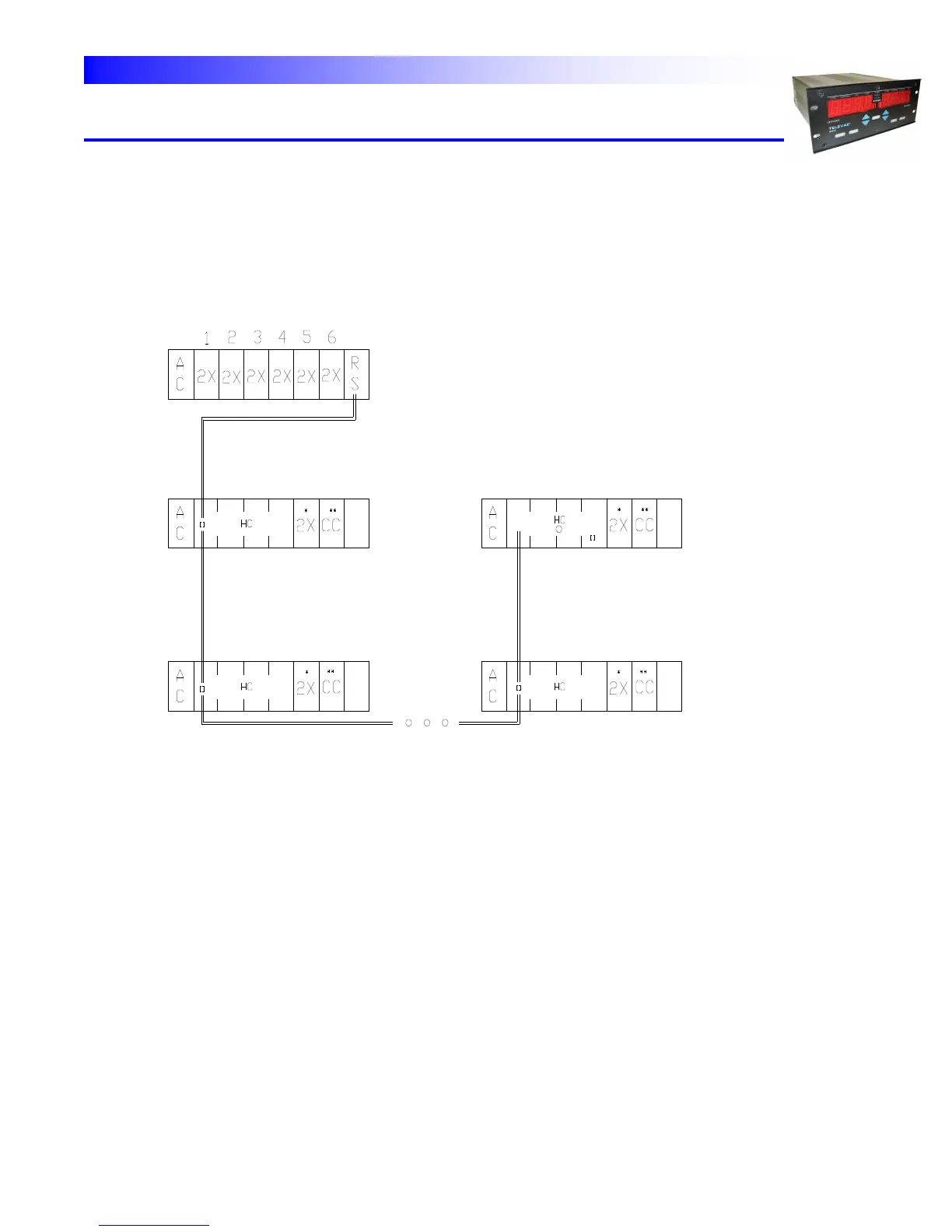

REMOTE HOT CATHODE MODULE(S) VIA` MM200
One of several possible combinations using the remote hot cathode module
To Next Page
