2. HARDWARE TEST SETUP
This section describes the hardware test setup required to perform RF testing in QRCT/Factory
Test mode.
Prerequisites
• Two laptops:
o One with Windows7/10 OS
o One with Linux OS (x86 or i.MX Platform with Ethernet port)
• WE866C3 EVB for Linux host
• Rohde & Schwarz CMW500 RF Tester
• RF cable to connect the WE866C3 module to RF tester
• Three ethernet cables to connect the AP ( or Ethernet switch) to two laptops and
RF tester

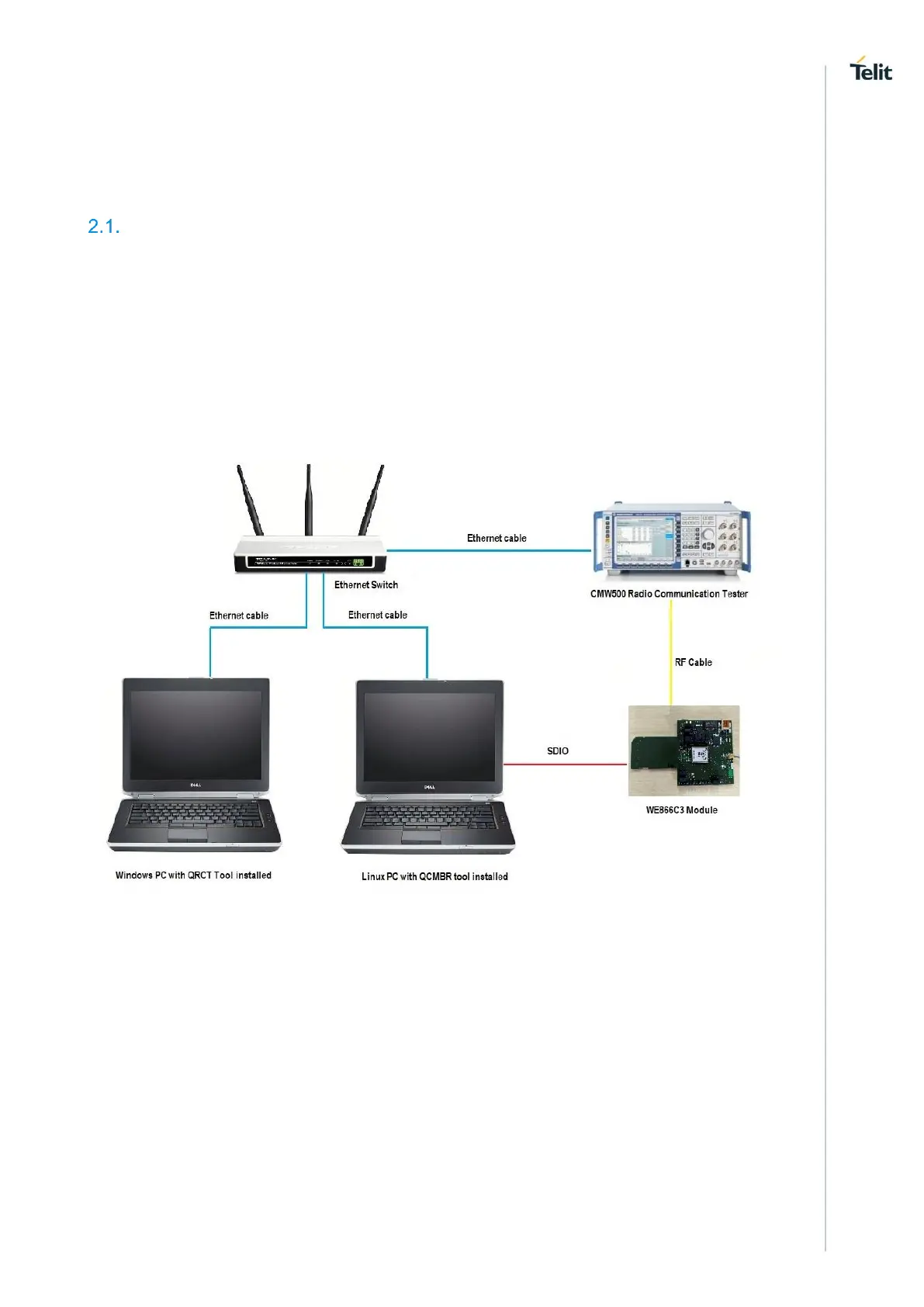

Figure 2-1, illustrates the hardware test setup.
Figure 2-1 RF Test Setup
