WE866C3-P Linux Companion RF Test User Guide
1VV0301640 Rev. 0 Page 20 of 28 2019-12-09
4.2.1. WLAN Tx Settings for 2.4GHz Band, CH. 6, 802.11b rates

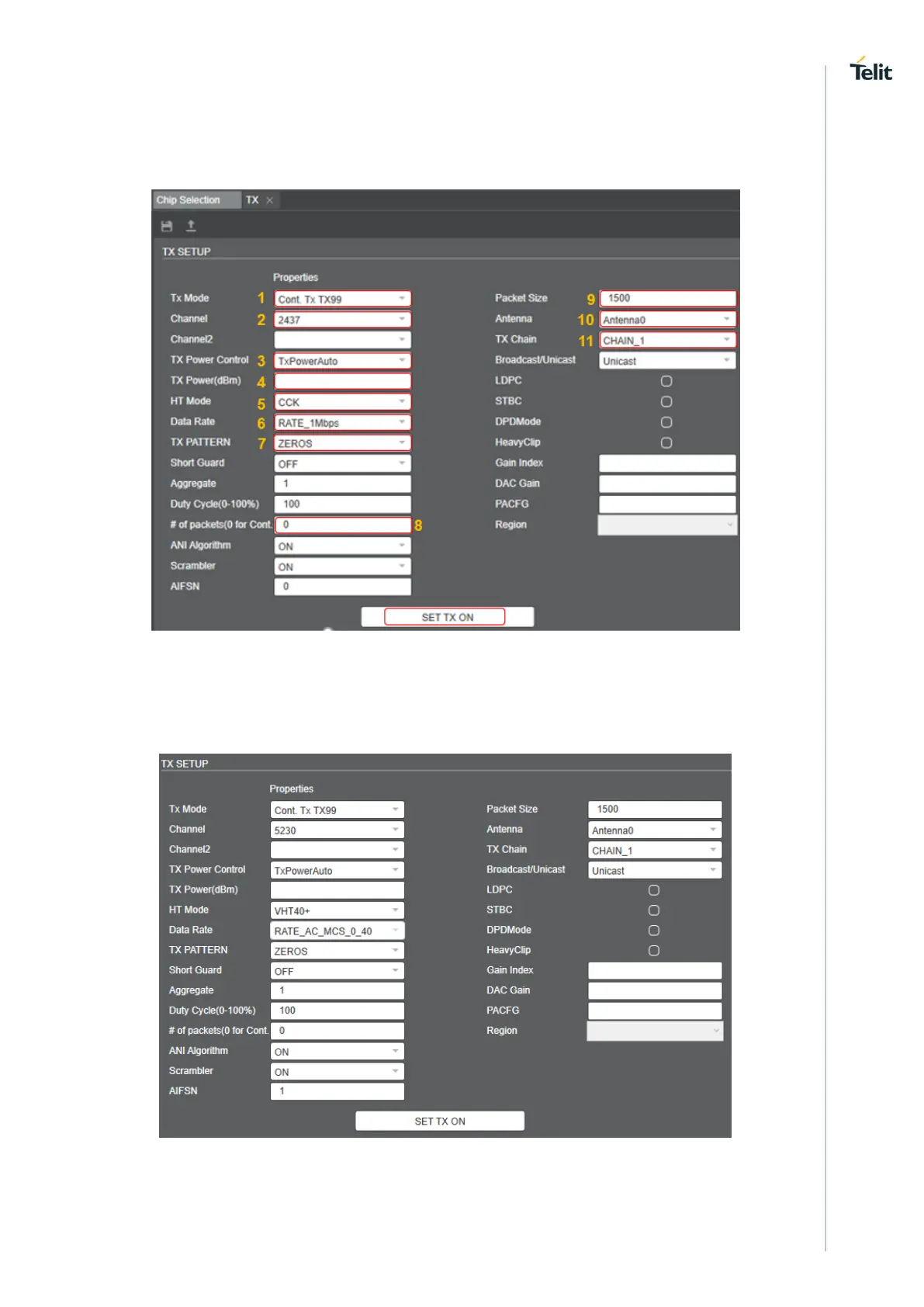

Figure 4-5, displays the WLAN Transmit settings for 2.4GHz band CH. 6, 802.11b rates
Figure 4-5 WLAN Tx Settings for 2.4GHz Band CH. 6, 802.11b Rates
4.2.2. WLAN Tx Settings for 5GHz Band, CH. 46, 802.11ac, MCS0, 40MHz
Figure 4-6Error! Reference source not found., displays the WLAN Transmit settings for 5GHz
band, CH. 46, 802.11ac, MCS0, 40MHz
Figure 4-6 WLAN Tx Settings for 5GHz Band, CH. 46, 802.11ac, MCS0, 40MHz
