WE866C3-P Linux Companion RF Test User Guide
1VV0301640 Rev. 0 Page 24 of 28 2019-12-09
4.4.1. WLAN Rx Settings for 2.4GHz Band, CH.6, 802.11b rates

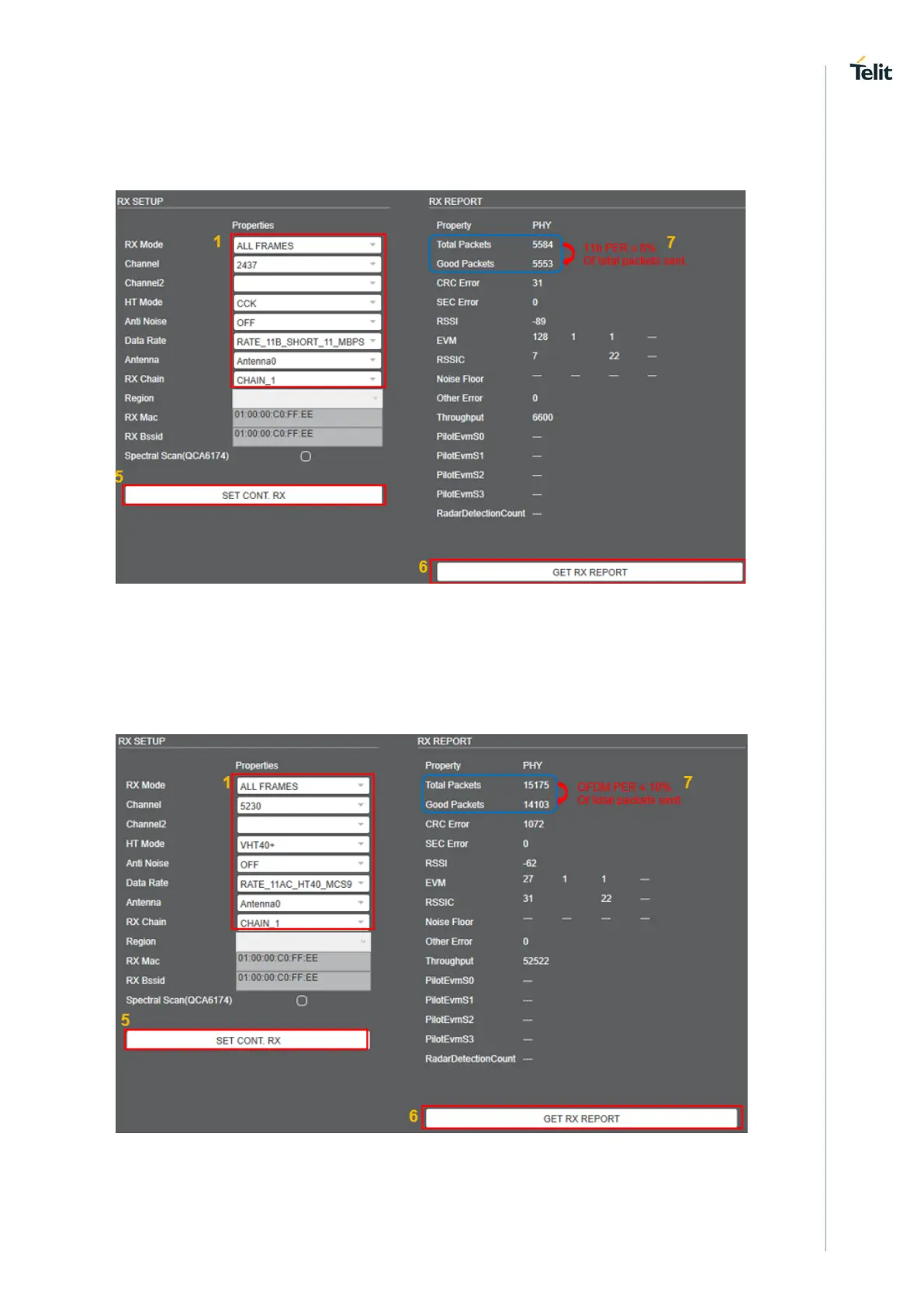

Figure 4-7, displays the WLAN Reciever settings for 2.4GHz Band, CH.6, 802.11b rates
Figure 4-7 WLAN Reciever Settings for 2.4GHz Band, CH.6, 802.11b rates
4.4.2. WLAN Rx Settings for 5GHz Band, CH.46, 802.11ac, MCS9, VHT-40MHz
Figure 4-8, displays the WLAN Reciever settings for 5GHz Band, CH.46, 802.11ac, MCS9,
VHT-40MHz
ABS waveform on VSG: WLAN_11ac_VHT_BW40_MCS9_LEN4096.wv
Figure 4-8 WLAN Reciever Settings for 5GHz, 802.11ac MCS9, VHT-40MHz, CH.46
