Chapter 1 | 1

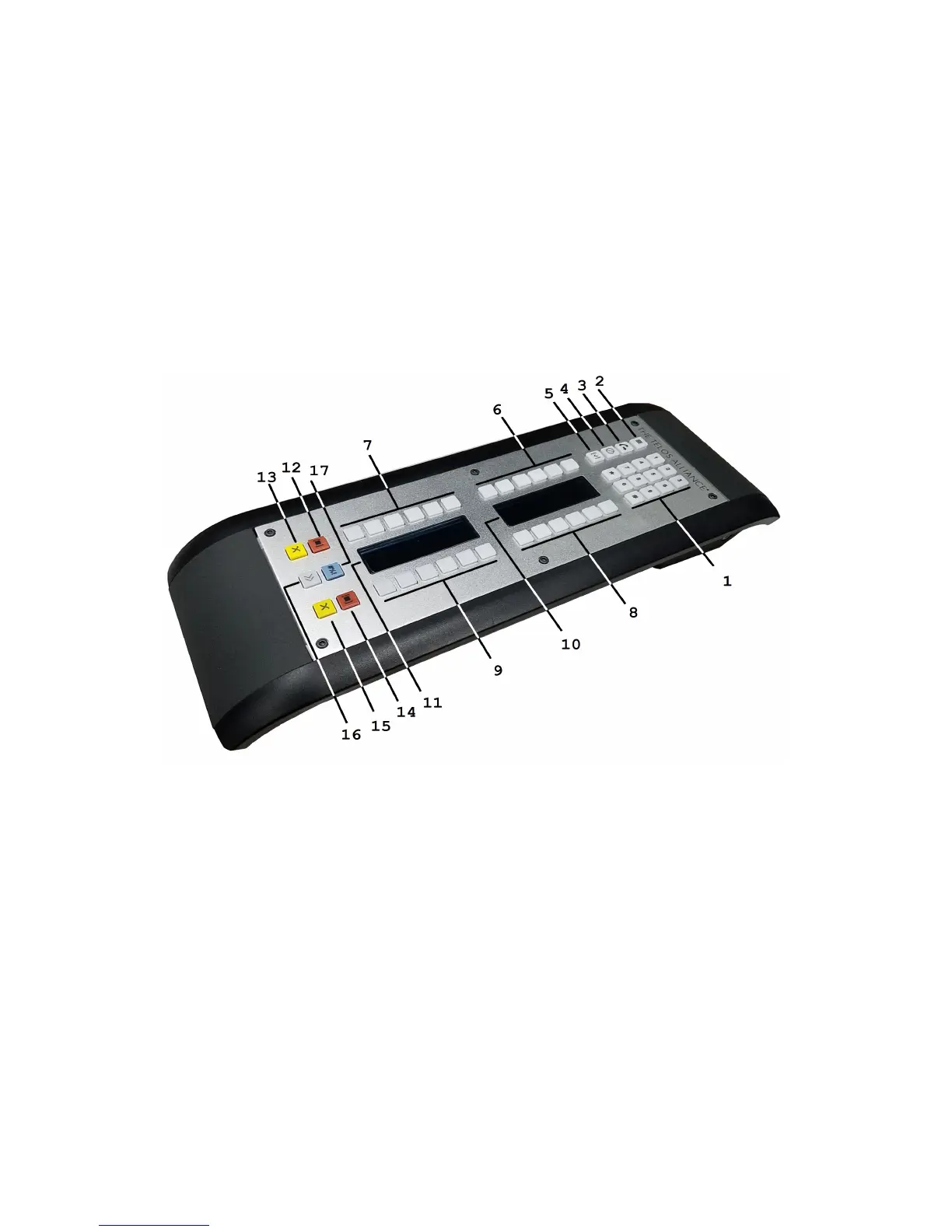

VSet Desktop Controller Anatomy
1 VSet Desktop Controller Anatomy
1. Number Keypad
2. Menu Button
3. Hook-Flash / Transfer Button
4. Block All Button
5. Screen Hold Button
6. Left Line 1-6 Buttons
7. Left Line 7-12 Buttons
8. Right Line 1-6 Buttons
9. Right Line 7-12 Buttons
10. Top Display
11. Bottom Display
12. Left Hold Button
13. Left Drop Button
14. Right Hold Button
15. Right Drop Button
16. Next Button
17. User Dump GPIO Button
