Pinout
Table 1 OBDII pinout
PIN NUMBER
PIN NAME
DESCRIPTION
2
PWM_BUS+/VPW
4
GND (-)
Ground
5
GND (-)
Ground
6
CAN_H
CAN high
7
K-Line
10
PWM_BUS-
14
CAN_L
CAN low
15
L-Line
16
VCC (10 - 30) V DC (+)
Power supply (+10-30 V DC)

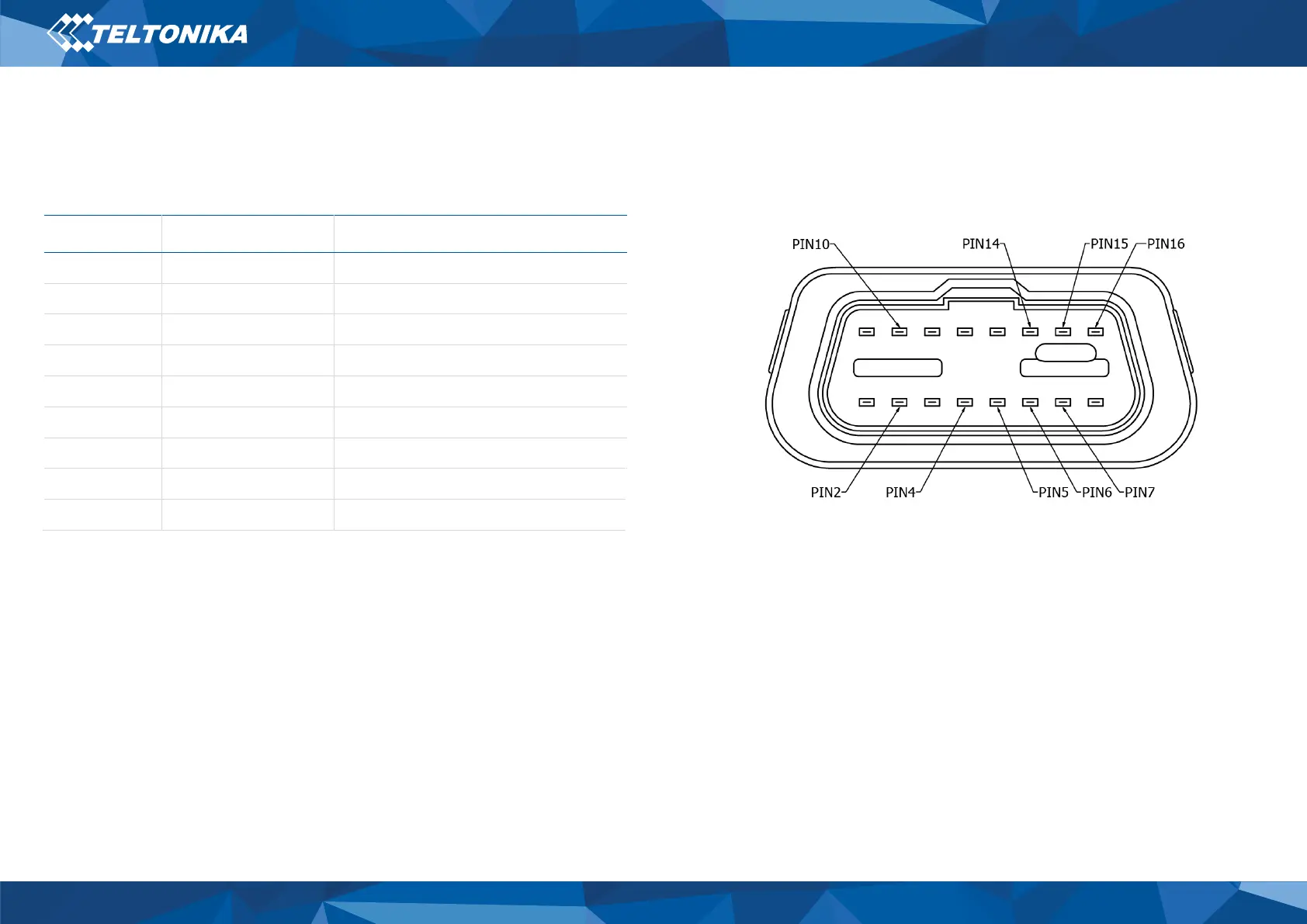

Figure 2 FMB002 OBDII socket pinout
