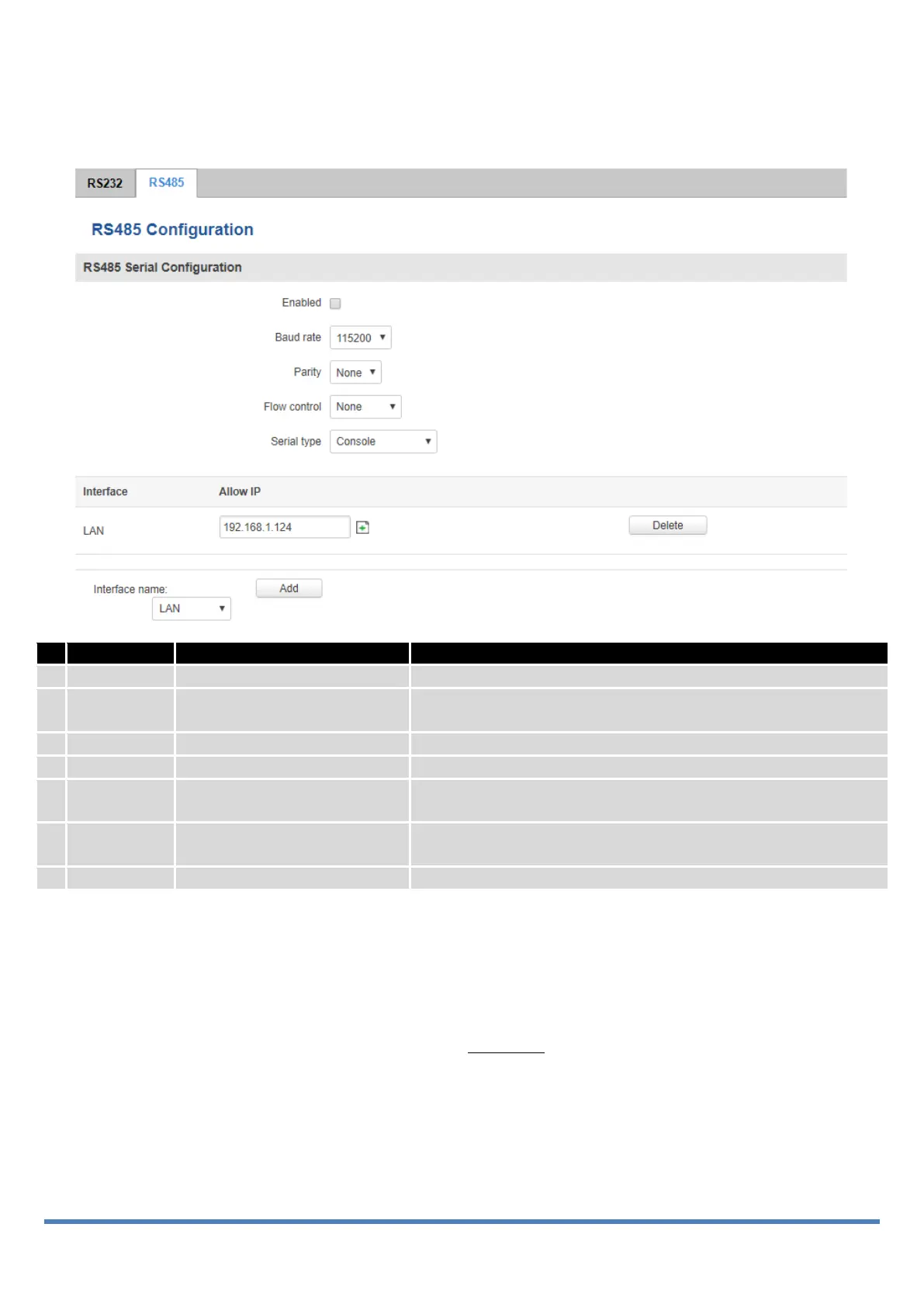

9.6.2 RS485
RS-485 is a different serial data transmission standart for use in long ranges or noisy environments.
Field name
Possible values
Explanation
1.
Enabled
Enable/Disable
Check the box to enable the serial port function
2.
Baud rate
300/1200/2400/4800/9600/
19200/38400/57600/115200
Select the communication speed of the serial interface
3.
Parity
None / Odd / Even
Parity bit setting is used for error detection during data transfer
4.
Flow control
None/RTS-CTS/Xon-Xoff
Specifies what kind of characters are to be used for flow control
5.
Serial type
Console/Over IP/Modem/
Modbus Gateway/NTRIP Client
Specifies the function of the serial interface
6.
Interface
LAN/ WAN/
VPN/L2TP/PPTP/GRE/HOTSPOT
Interface used for connection
7.
Allow IP
192.168.1.102
Allow IP connecting to server
9.6.2.1 Maximum data rate vs. transmission line length
RS-485 standart can be used for network lengths up to 1200 meters, but the maximum usable data rate decreases
as the transmission length increases. A device operating at the maximum data transfer rate (10Mbps) is limited to a
transmission length of about 12 meters, while the 100kbps data rate can achieve a distance up to 1200 meters. A rough
relation between maximum transmission length and data rate can be calculated using this approximation:


󰇛

󰇜




󰇛
 
 󰇜
Where Lmax is the maximum transmission length in meters and DR is maximum data rate in bits per second.
Twisted pair is the prefered cable type for RS-485 networks. Twisted pair cables pick up noise and other
electromagnetically induced voltages as common mode signals, which are rejected by the differential receivers.
