Page 10 of 24
Heat Pump Water Heaters
MWP Series
Installation
Follow these Installation Instructions to ensure optimum
performance, reliability and durability.
Units must be installed in accordance with all national and
regional regulations and bylaws. National Health and Safety
regulations must be followed to avoid personal injuries.
The appropriate local permits must be acquired and
adhered to.
Local regulations on maximum boundary noise need to
be considered when positioning the unit.
Remove equipment from packaging and inspect for transit
damage. Report any damage immediately
to Temperzone.
Dispose of packaging in an environmentally
thoughtful manner.
WARNING: Keep appliance area clear and
free from combustible materials, gasoline
and other ammable vapours and liquids.
The Magnus MWP heat pump should be located on a rigid base
or foundation, eg concrete pad, and set on rubber vibration
isolation pads.
Allow sufcient space around the unit to facilitate water pipe
connection, future service, and maintenance requirements,
working space in front of the electrical panel and unobstructed
air ow through the unit. Refer to the minimum clearance
requirements illustrated here (Fig.3a) and pages the relevant
Specication Data sheet supplied for your model.
In all installations it is preferred that the coil be installed
perpendicular to the wall (Fig.3a). In installations where this is
not possible, the unit must be installed with a minimum of
500mm clearance between the coil and the wall (Fig.3b). If
multiple units are installed adjacent there must be 1m clearance
between facing coils.
There must be no restriction to air ow above the unit.

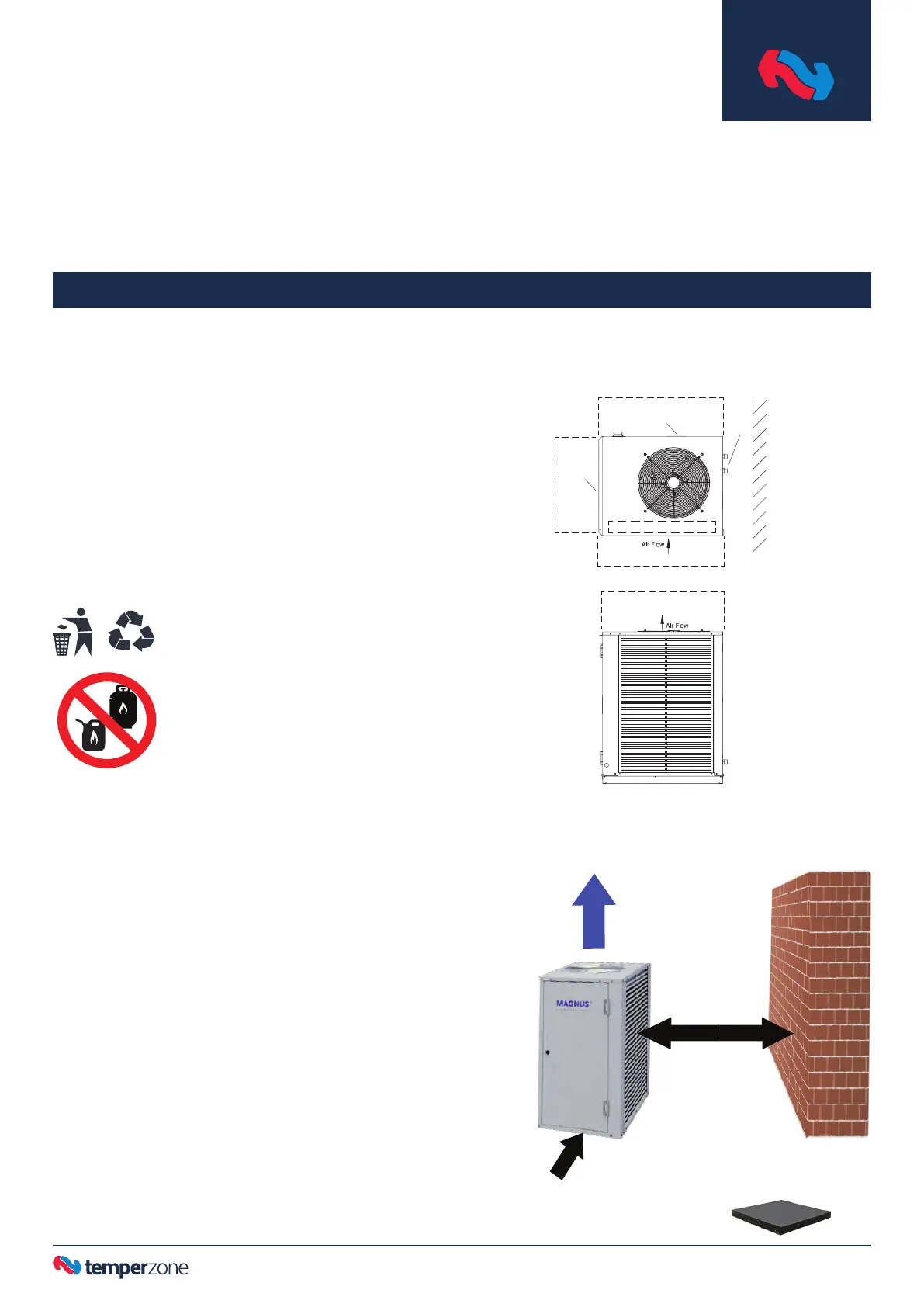

Figure 3a Minimum Clearances
500mm
Set the unit on rubber vibration isolation pads
Minimum
1000mm min. clearance
750 MIN. CLEARANCE
1000 MIN. CLEARANCE
500 MIN. CLEARANCE
WATER
CONN’S
ELECTRICAL
PANEL
ACCESS
PANEL
Figure 3b Alternative Orientation
