MIC Connector (2)
Front panel jack used for connection of a
microphone. The Eagle features the common
8-pin microphone jack used in many amateur
radio transceivers. Most dynamic or Electret
Microphones can be used. When adapting a
microphone, please refer to the wiring
diagrams in Figures 2.2-1 and 2.2-2

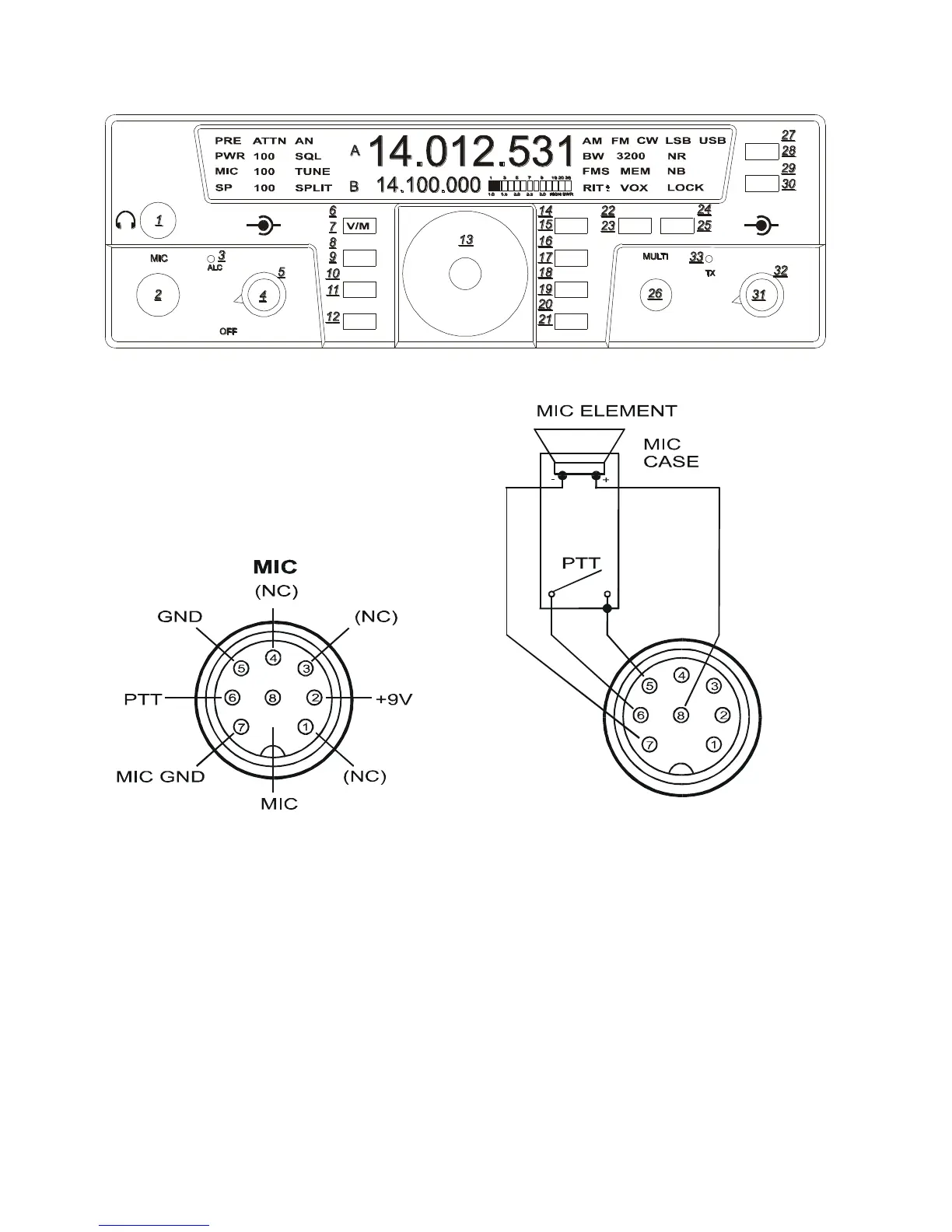

Figure 2.2-1 Transceiver Microphone Jack
Front View
Figure 2.2-2 Transceiver Microphone Jack
Recommended Cable Wiring
Pin 2 (+9 Vdc) need only be connected if the
microphone element in use is an electret
condenser requiring a polarizing voltage.
TEN-TEC
AF RF
MR
AN
SP-CW
BW PBT
A=B
VOX
PWRRITAGC
PRE
SQL
MON
E
AGLE
NR
MIC
FNC
LOCK
ATTN
FAST
BAN
MOD TUNE
A/B
NB
