Fuse Auto Style 25A (41)
Anderson Power Pole Connector (42)
ACC 1 (40)

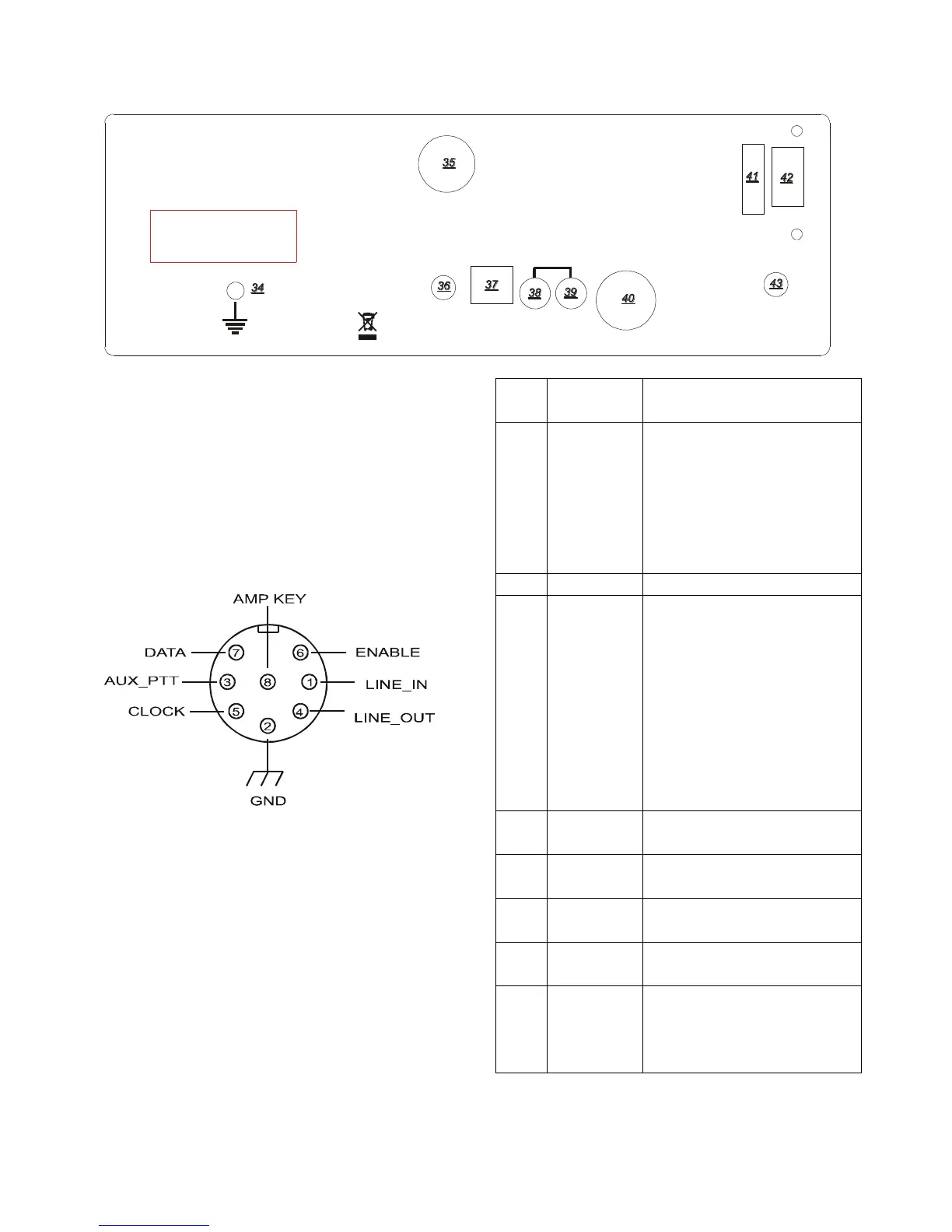

The Eagle is equipped with an 8 pin
accessory connector. Refer to following
figure for the pin definitions as viewed from
the rear panel.
Figure 3-2 ACC1 Pin out
The pin out and function are listed in the
following table:
Pin
Name /
Direction
Usage
1
Line In /
Input
Line level Audio input
from an accessory device
(like a TNC or sound card
for digital mode
operation.) Selected using
the front panel MIC
button.
2
Ground
Grounding
3
Aux PTT
/ Input
In Voice Modes, when
grounded, this pin will key
the radio and begin
transmitting. In CW
Mode, this pin can be used
as a keying input for an
external device such as an
external keyer or a
computer running a CW
generator program.
4
Line Out /
Output
Line Level Audio output.
5
Clock /
Output
Future Use (Do NOT
connect to this pin)
6
Enable /
Output
Future Use (Do NOT
connect to this pin)
7
Data /
Output
Future Use (Do NOT
connect to this pin)
8
Amp Key
Line
Used to key an external
device, such as an
Amplifier. Occurs ~17ms
before RF is generated.
Table 3-1 ACC1 Pin out
IN
25A
KEY
ANT
USB ACC 1
SPKR
EXT
13.8V
FUSE
DC
MODEL 599
TEN-TEC, INC.
SEVIERVILLE, TN
MADE IN USA
WWW.TENTEC.COM
DC OUT
.5 A MAX
-
+
FCC ID DJ7-599 This device complies with
Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
