Tenda AC11 User Manual

7

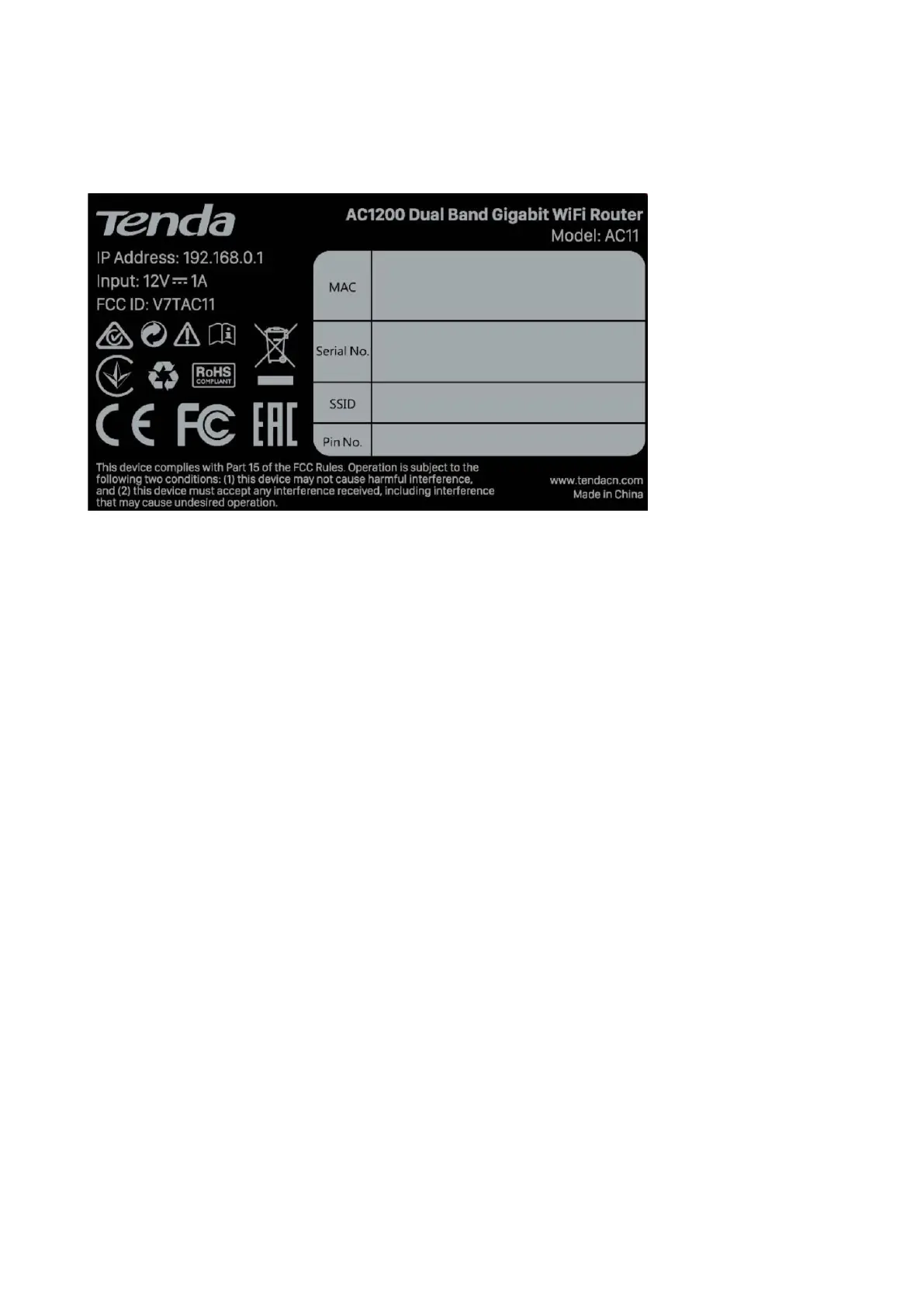

1.3 Label
The bottom label shows the login IP address, MAC address, serial number, SSID and PIN number of
the router. See the following figure. Here AC11 is used for illustration.
IP Address: It is the default address used to log in to the web UI of the router.
MAC: It specifies the MAC address of the router.
Serial No.: It is required if you need technical assistance.
SSID: It specifies the default WiFi name of the router.
Pin No.: It specifies the PIN code of the router.

Tenda AC11 Specifications

General

Max WiFi Speed	1200 Mbps
Frequency Bands	2.4 GHz, 5 GHz
RAM	128 MB
MU-MIMO	Yes
WiFi Standard	IEEE 802.11ac
Wireless Standards	IEEE 802.11ac/a/n/g/b
Wireless Speed	300 Mbps (2.4 GHz) + 867 Mbps (5 GHz)
Antennas	5 external antennas
Ports	1 x 10/100Mbps WAN port, 3 x 10/100Mbps LAN ports
Interface	Web-based Interface
Button	WPS/Reset
Security	WPA-PSK/WPA2-PSK
Power Input	100-240V AC, 50/60 Hz
