Tenda AC11 User Manual

23

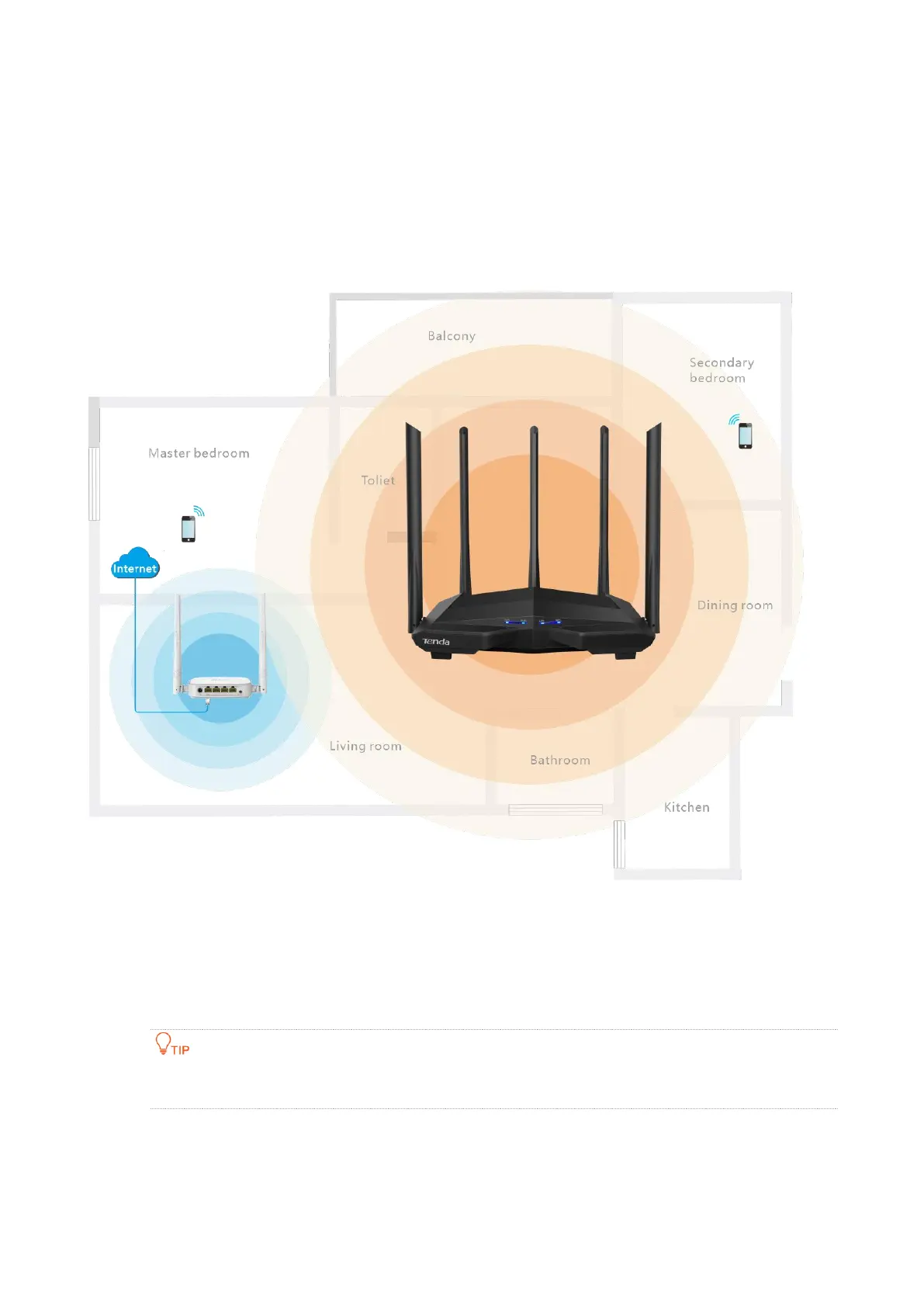

4.3 Serve as a WiFi extender
If you have a router which is connected to the internet and want to extend the WiFi coverage, you
can refer to this chapter.
Assume that the information of your existing WiFi network is as follows:
− WiFi name: My_home_WiFi
− WiFi password: TendaAC947
Method 1: Set the router to WISP mode
Configuring procedures:
Step 1 Start a web browser on a device connected to the router and visit tendawifi.com to log in
to the web UI of the router.
If you use the router for the first time or have reset router, proceed with the following steps. If you
have already configured the router, skip Step 2.
Step 2 Set Connection Type to Dynamic IP Address, and click OK. You will be direct to the Status
page.
New router
Original router

Tenda AC11 Specifications

General

Max WiFi Speed	1200 Mbps
Frequency Bands	2.4 GHz, 5 GHz
RAM	128 MB
MU-MIMO	Yes
WiFi Standard	IEEE 802.11ac
Wireless Standards	IEEE 802.11ac/a/n/g/b
Wireless Speed	300 Mbps (2.4 GHz) + 867 Mbps (5 GHz)
Antennas	5 external antennas
Ports	1 x 10/100Mbps WAN port, 3 x 10/100Mbps LAN ports
Interface	Web-based Interface
Button	WPS/Reset
Security	WPA-PSK/WPA2-PSK
Power Input	100-240V AC, 50/60 Hz
