Tenda D301-V2 User Manual

Wireless Modem Router
35
_________________________________________________________________________________________________
Note:
1. DNS Server Interfaces can have multiple WAN interfaces served as system DNS servers but only one will be used
according to the priority with the first being the highest and the last one the lowest priority if the WAN interface is
connected. Priority order can be changed by removing all and adding them back in again.
2. In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server IP addresses
must be entered.
3. If you cannot locate the static DNS server IP information, ask your ISP to provide it.
_________________________________________________________________________________________________

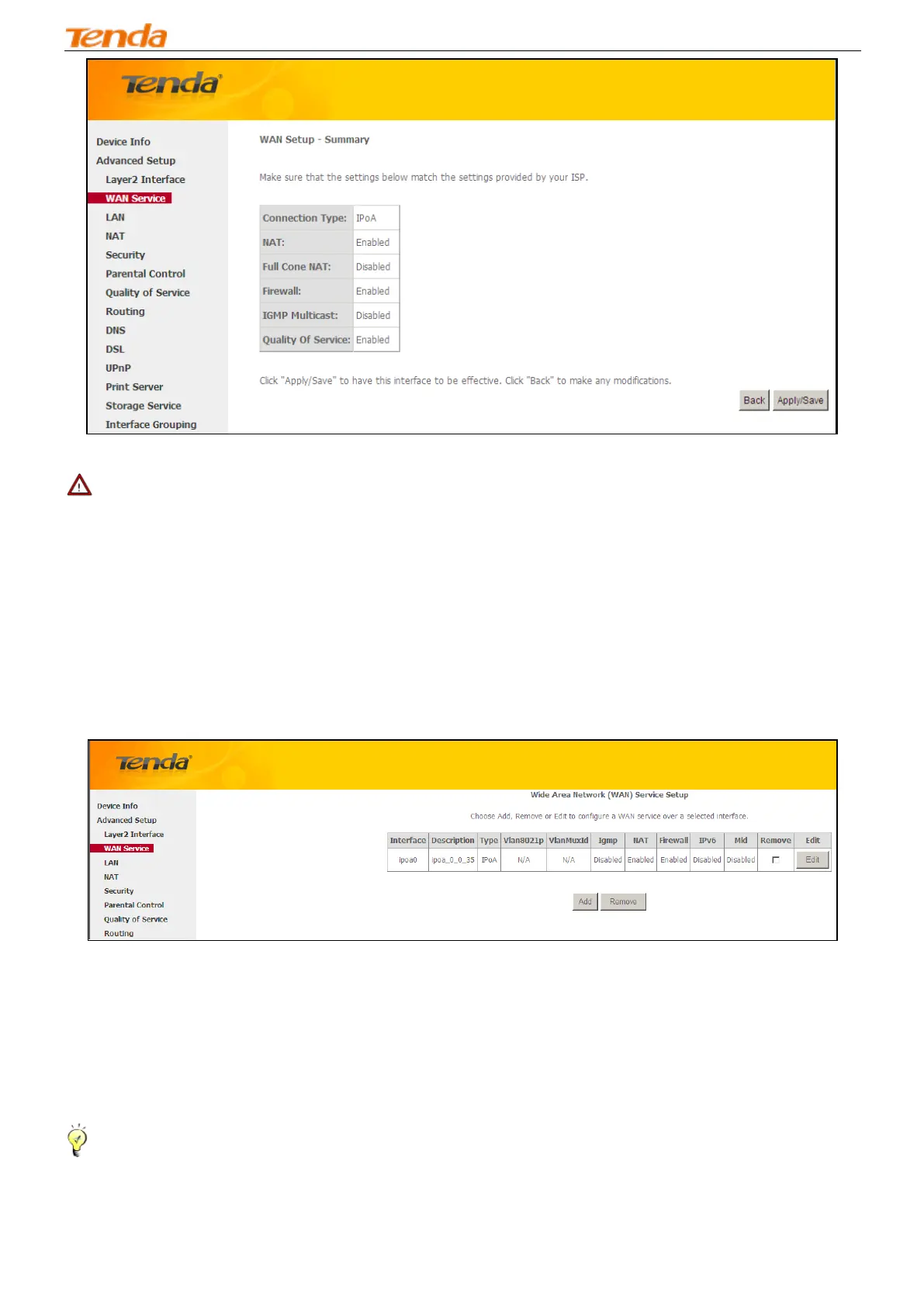

Confirm your settings and then click Apply/Save to apply and save your settings. Your settings will then be displayed on
the screen below:
To Set up WAN Service for ETH Interface
If you select and configured the ETH Interface (Ethernet uplink), follow steps below to configure the WAN service:
Two Internet connections: PPP over Ethernet (PPPoE) and IP over Ethernet (IPoE) are available in the Ethernet uplink
mode.
_________________________________________________________________________________________________
Tip:
eth0, eth1, eth3 and eth3 respectively represent the LAN port1, LAN port2, LAN port3 and LAN port4 of the device.
_________________________________________________________________________________________________

Tenda D301-V2 Specifications

General

Wireless Standards	IEEE 802.11b/g/n
Frequency	2.4 GHz
Wireless Speed	300Mbps
WAN Ports	1 x 10/100 Mbps
LAN Ports	3 x 10/100Mbps
Antenna	2 x 5dBi external antennas
WAN Connection Type	PPPoE, Dynamic IP, Static IP
Security	WPA/WPA2, WEP
Button	Reset/WPS Button
DHCP Server	Supported
Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 70°C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Weight	210g
