Tenda N301 User Manual

34
Procedure

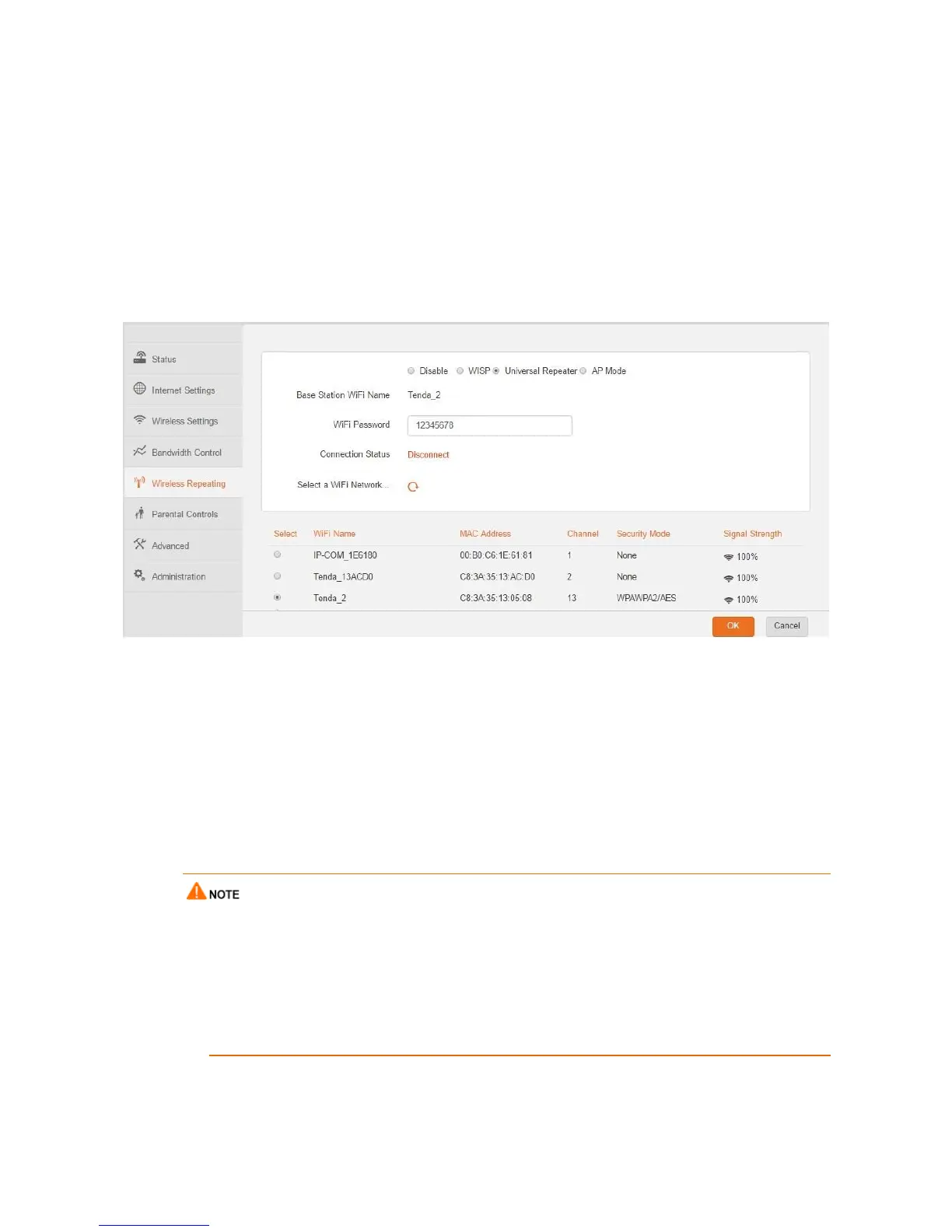

Step 1 Select the Universal Repeater mode.
Step 2 Select the WiFi name of the original router from the WiFi Name list. In this example, select
Tenda_2.
Step 3 (If the password is not set on the original router, go to step 4 directly.) Enter the WiFi password of
the original router in the WiFi Password text box. In this example, enter 12345678.
Step 4 Click OK.
Step 5 Click OK on the dialog box that appears.
The router restarts automatically, and the settings take effect after the router restarts.
---End
Verification
After the "Bridged successfully in Universal Repeater mode." message appears on the Status page, you
can access the internet through the WiFi network of the new router.
 If the LAN IP address of the new router is the same as that of the original router, you can only log in to
the web UI of the new router at tendawifi.com. If the LAN IP address of the new router is in the
different network segment from the original router, it will be changed to an IP that is in the same
network segment as but different from that of the original router. In this case, you can log in to the web
UI of the new router at tendawifi.com.
 In Universal Repeater mode, the DHCP server of the upstream router must be enabled.

Tenda N301 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Frequency range	2.4 - 2.472 GHz
WLAN data transfer rates supported	11, 54, 300 Mbit/s
Ethernet LAN (RJ-45) ports	3
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Antennas quantity	2
Antenna gain level (max)	5 dBi
Product color	White
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoH
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	127.4 mm
Width	90.5 mm
Height	26 mm
Weight	- g
