requirement can be addressed using the port forwarding function. The following figure shows the

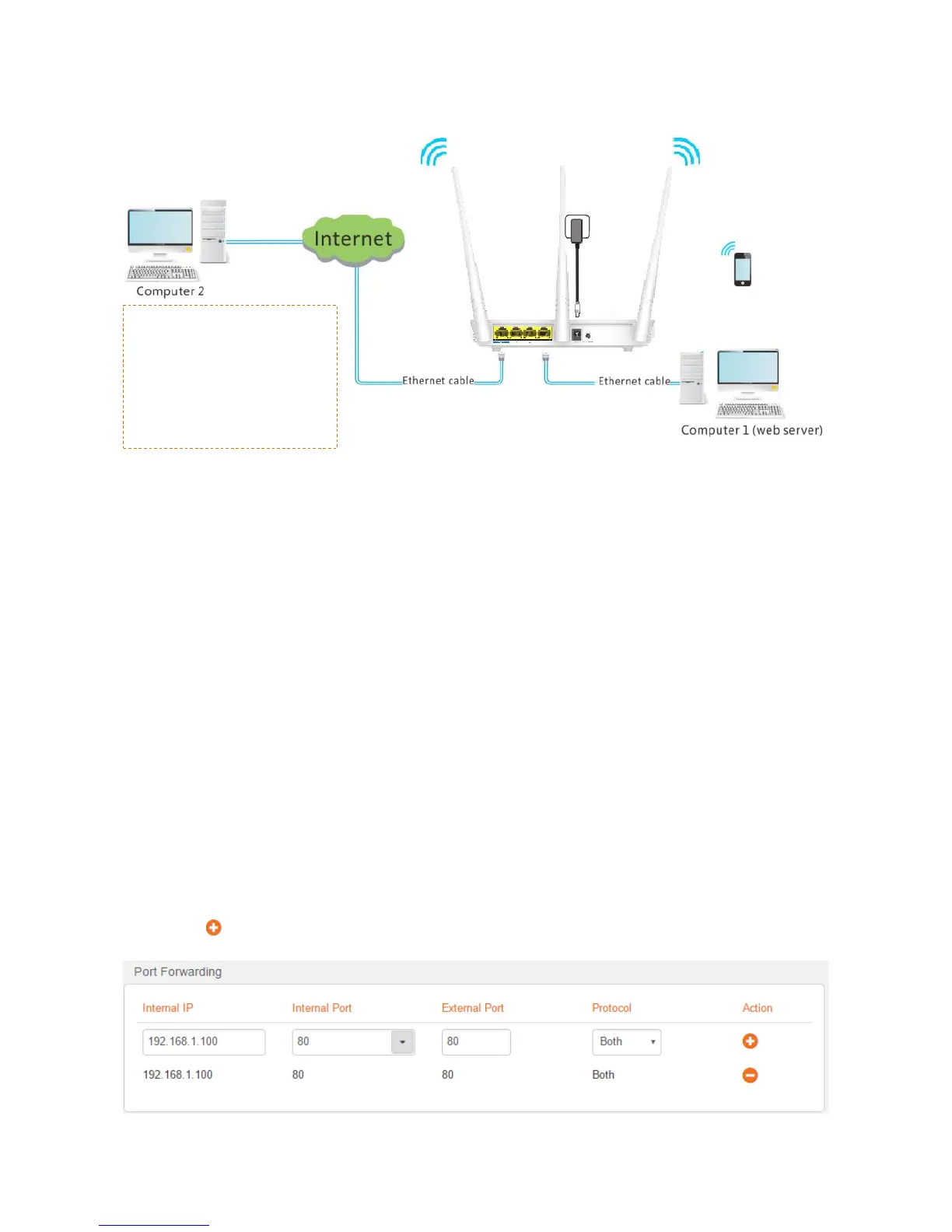

application scenario.
Prerequisites

The WAN port of the router is assigned a public IP address.

Computer 1 is assigned a static IP address (Refer to DHCP Reservation function).
The default gateway IP address is the LAN IP address of the router.

All the firewall and antivirus software that may deny internet users' access to LAN
servers is disabled when port forwarding function is used.
Procedure
Step 1 Choose Advanced > Port Forwarding.
Step 2 Set Internal IP to the IP address of a LAN server. In this example, enter the IP address of
computer 1, which is a web server. In this example, it is 192.168.1.100
Step 3 Set Internal Port to the port number of the web service, which is 80 in this example.
External Port is set automatically.
Step 4 Set Protocol to the protocol of the web service. Both is recommended.
Step 5 Click , and then OK.
WAN IP address of the router:
102.33.66.88
IP address of the web server:
192.168.1.100

Tenda N301 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Frequency range	2.4 - 2.472 GHz
WLAN data transfer rates supported	11, 54, 300 Mbit/s
Ethernet LAN (RJ-45) ports	3
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Antennas quantity	2
Antenna gain level (max)	5 dBi
Product color	White
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoH
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	127.4 mm
Width	90.5 mm
Height	26 mm
Weight	- g
