Tenda O1 User Manual

161
Example of configuring remote web management
The device is used to bridge to the ISP hotspot for internet access in a house in the countryside,
and the device is set to WISP mode.
Networking requirement
The host needs to troubleshoot the network when he is on business. So he needs to access the
device’s web UI on WAN.
You are recommended to use the remote web management function to solve the problem.
Assume that:
− The WAN IP address of the device is 202.105.106.55
− The IP address of the computer which is allowed to access the device on WAN is
202.105.88.77
− Port number is 8080
Configuration procedures

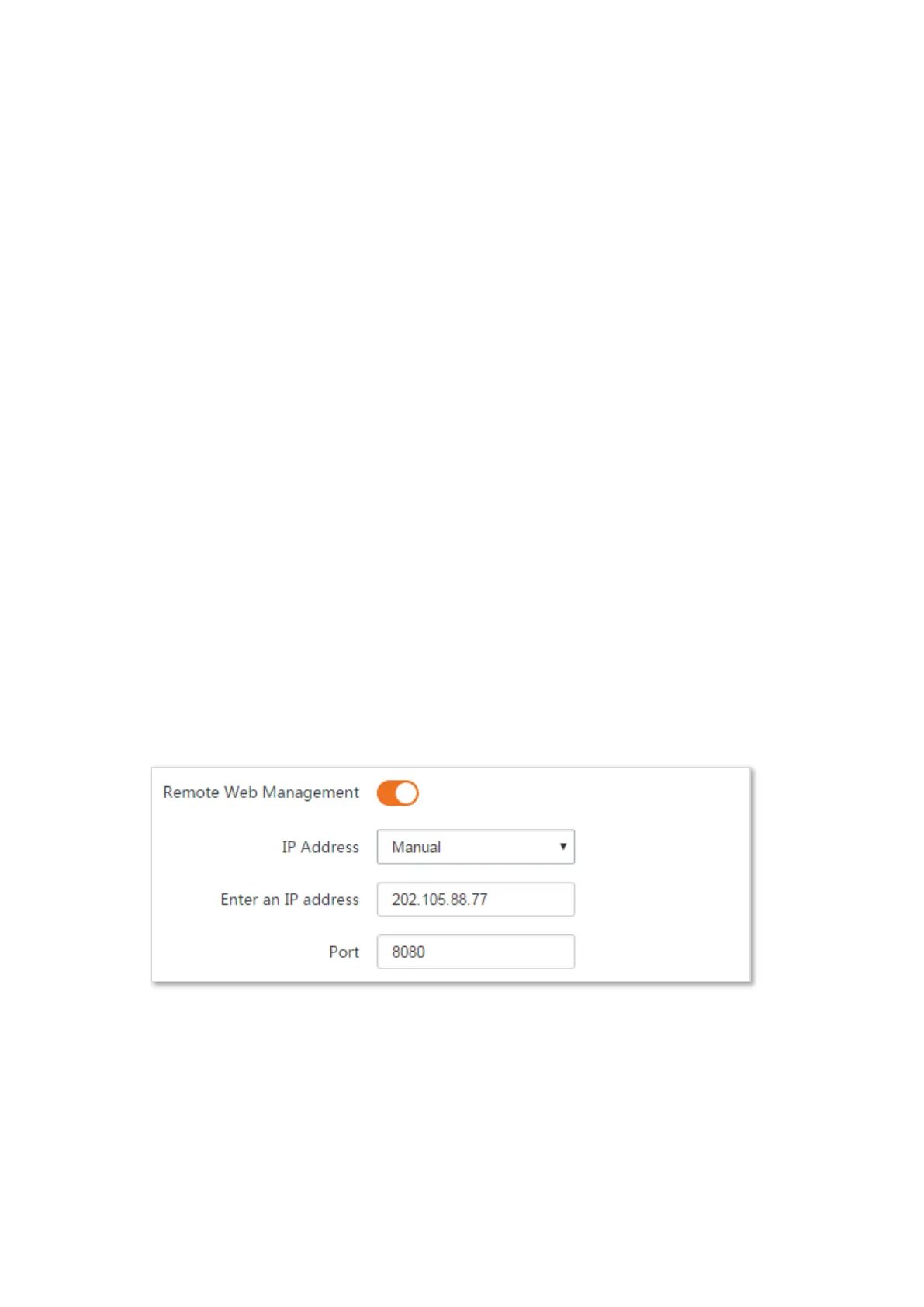

Step 1 Start a web browser on the computer connected to the CPE, visit 192.168.2.1 and choose
Advanced > Network Service.
Step 2 Enable the Remote Web Management function.
Step 3 Set IP Address to Manual.
Step 4 Enter the IP address of the computer which is allowed to access the device on WAN,
which is 202.105.88.77 in this example.
Step 5 Enter the port number, which is 8080 in this example.
Step 6 Click Save in the bottom of this page.
----End
Verification
The host can use his computer to log in to the web UI of the device by access
http://202.105.106.55:8080.

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
