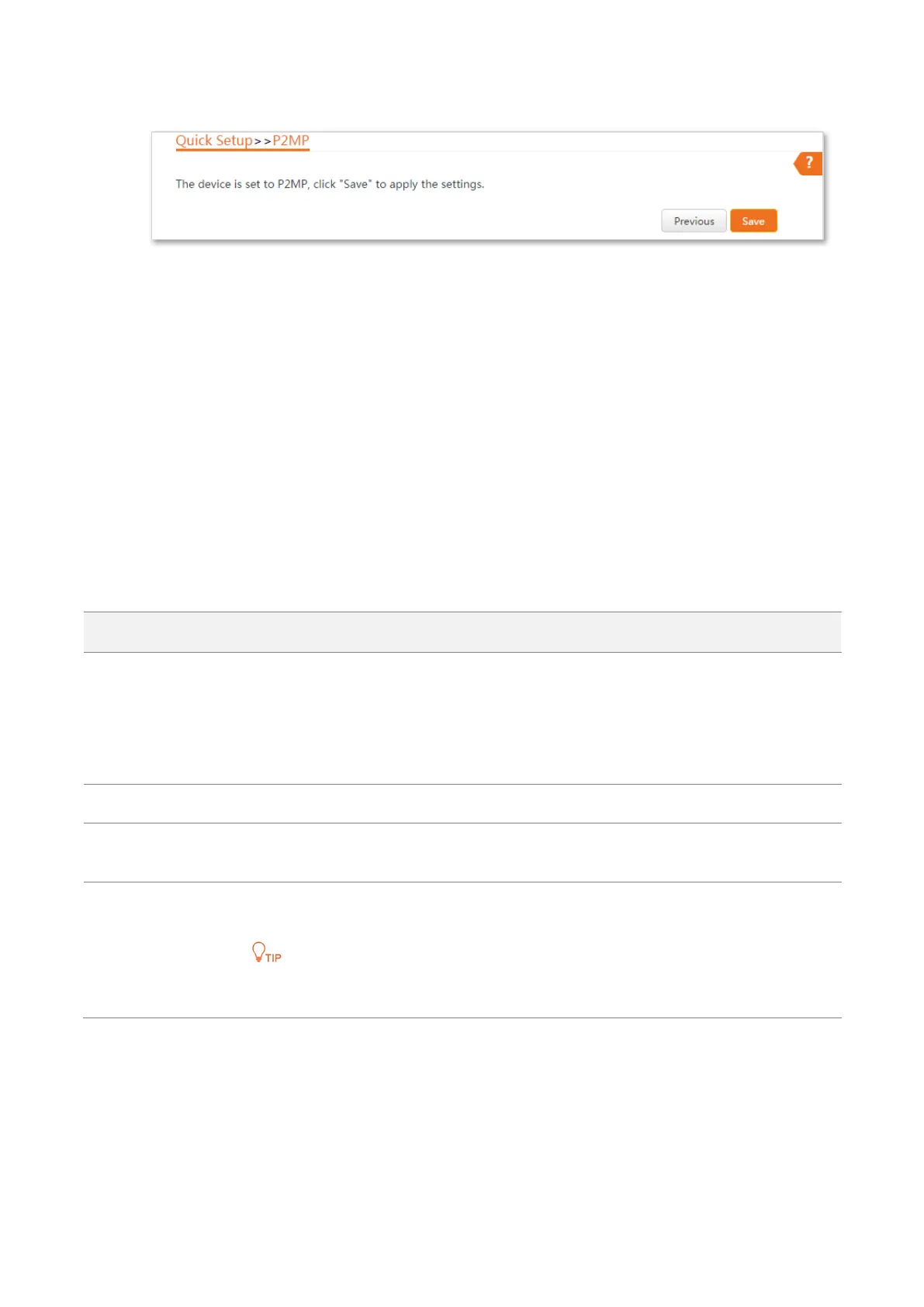

7. Click Save, and wait until the device reboots to activate the settings.
----End
To check whether the bridging is successful:
Method 1: When the LED1, LED2, and LED3 indicators of the CPEs are solid on, the bridging
succeeds.
Method 2:
Step 1 Start a web browser on the computer which is connected to the CPE1 and visit its IP
address.
Step 2 Choose Advanced > Diagnose, select Ping from the Diagnose drop-down list menu, enter
the IP addresses of the CPE2, CPE3, CPE4 and CPE5 respectively and click Start.
The bridging is successful when the ping succeeds.
Parameters description
Name
Description
Working modes
It specifies the working mode of this device.
P2MP mode: In this mode, the device can connect 2 or more (this device supports 4 at
most) wired networks with a wireless link, but cannot be connected with wireless
clients. P2MP mode is used to achieve communication between multiple offices of an
enterprise in a city.
Peer AP
It specifies the wireless network name (SSID) of the peer AP.
Channel
It specifies the operating channel of the WiFi network to be bridged. It will be
automatically populated when you select an SSID to bridge.
Security Mode
It specifies the security mode of the WiFi network to be bridged. It will be automatically
populated when you select an SSID to bridge.
The P2MP mode only supports WEP and None security modes.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
