Tenda O3 User Manual

26
4.2 Client mode
In Client mode, this device serves as a wireless adapter, and connects to a wireless network of
upstream AP. The CPE is unable to be connected by wireless devices in this mode.
Application scenario

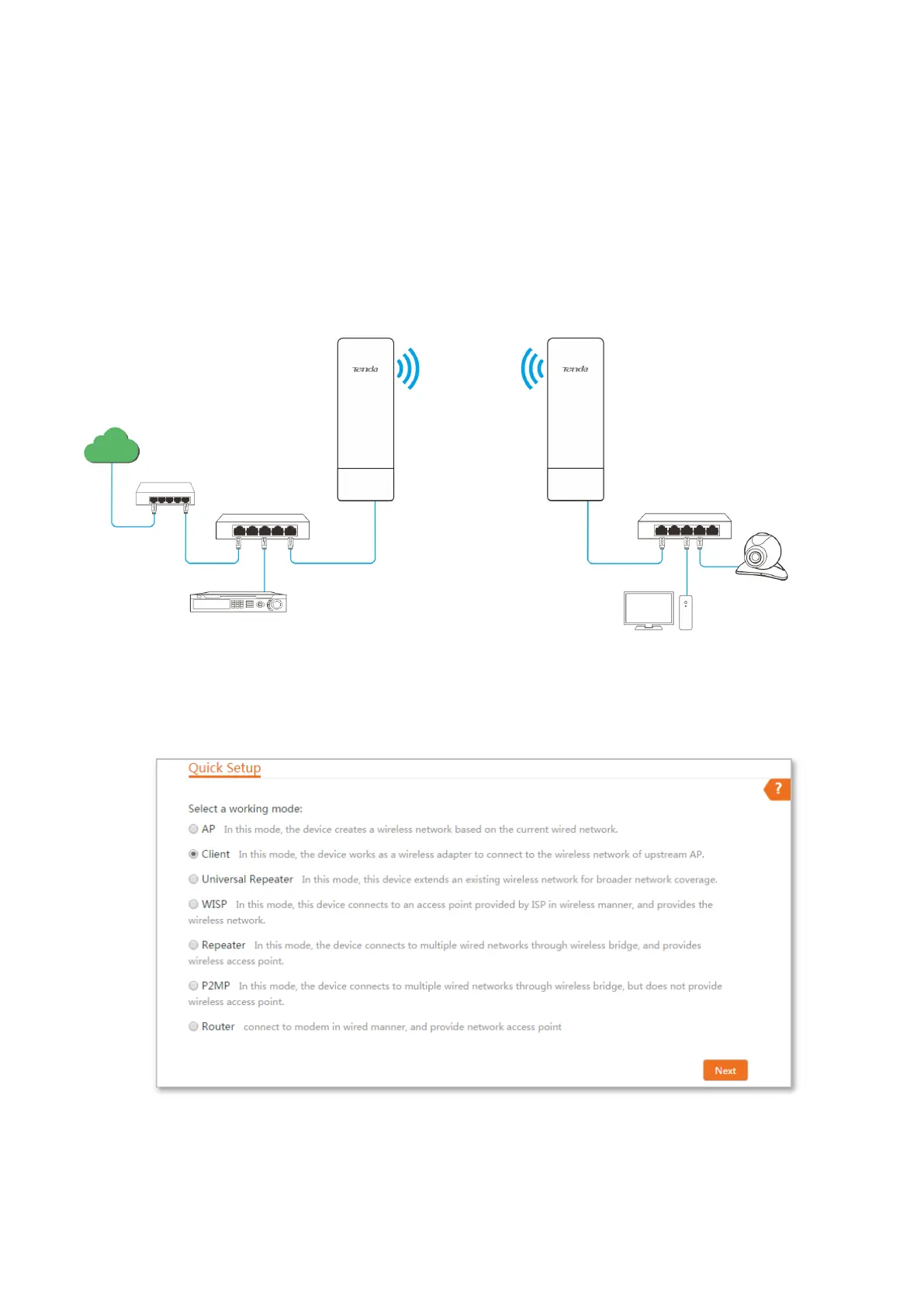

The CPE in AP mode usually works with another CPE in client mode to establish a CCTV
surveillance network, and use the CPE to connect to IP cameras. The network topology is shown as
below:
Configuration procedures:
Step 1 Log in to the web UI of CPE and choose Quick Setup to enter the configuration page.
Step 2 Select Client, and click Next.
AP mode
Client mode
Switch
Switch
IP camera
Computer
NVR
Router
Internet

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
