Tenda O3 User Manual

69
4.11 Router mode
In Router mode, this device serves as a router to provide a wireless network.
Application scenario
The CPE is used to provide a wireless network and assign IP addresses to your wireless devices.

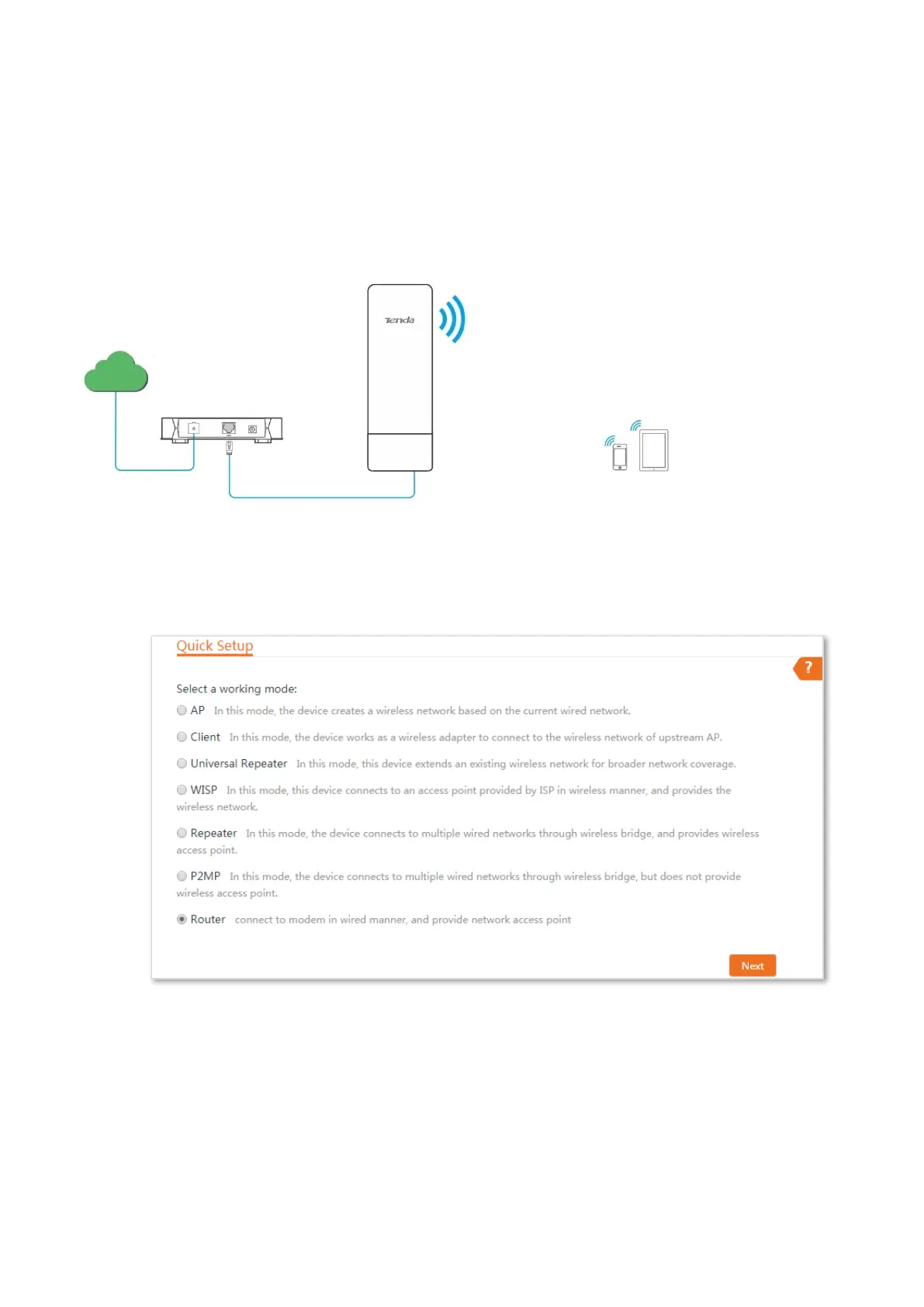

The network topology is shown as below:
Configuration procedures:
Step 1 Log in to the web UI of the CPE, and choose Quick Setup to enter the configuration page.
Step 2 Select Router mode, and click Next.
Step 3 Select your internet connection type, and set the related parameters. Take PPPoE as an
example here.
1. Select PPPoE.
2. Enter the PPPoE User Name and Password provided by your internet service provider,
which are both admin in this example.
3. Click Next.
Router mode
Modem
Internet

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
