Tenda O3 User Manual

63
4.10 Example of repeater mode and P2MP mode
Network requirement
You have three offices in an estate which are not far away from each other, and only one office has
internet service. Now you want to combine the networks in three offices into one, and provide
wireless networks to wireless devices in the offices without internet service.
Solution
Set CPE1 to P2MP mode, and set CPE2 and CPE3 to Repeater mode.

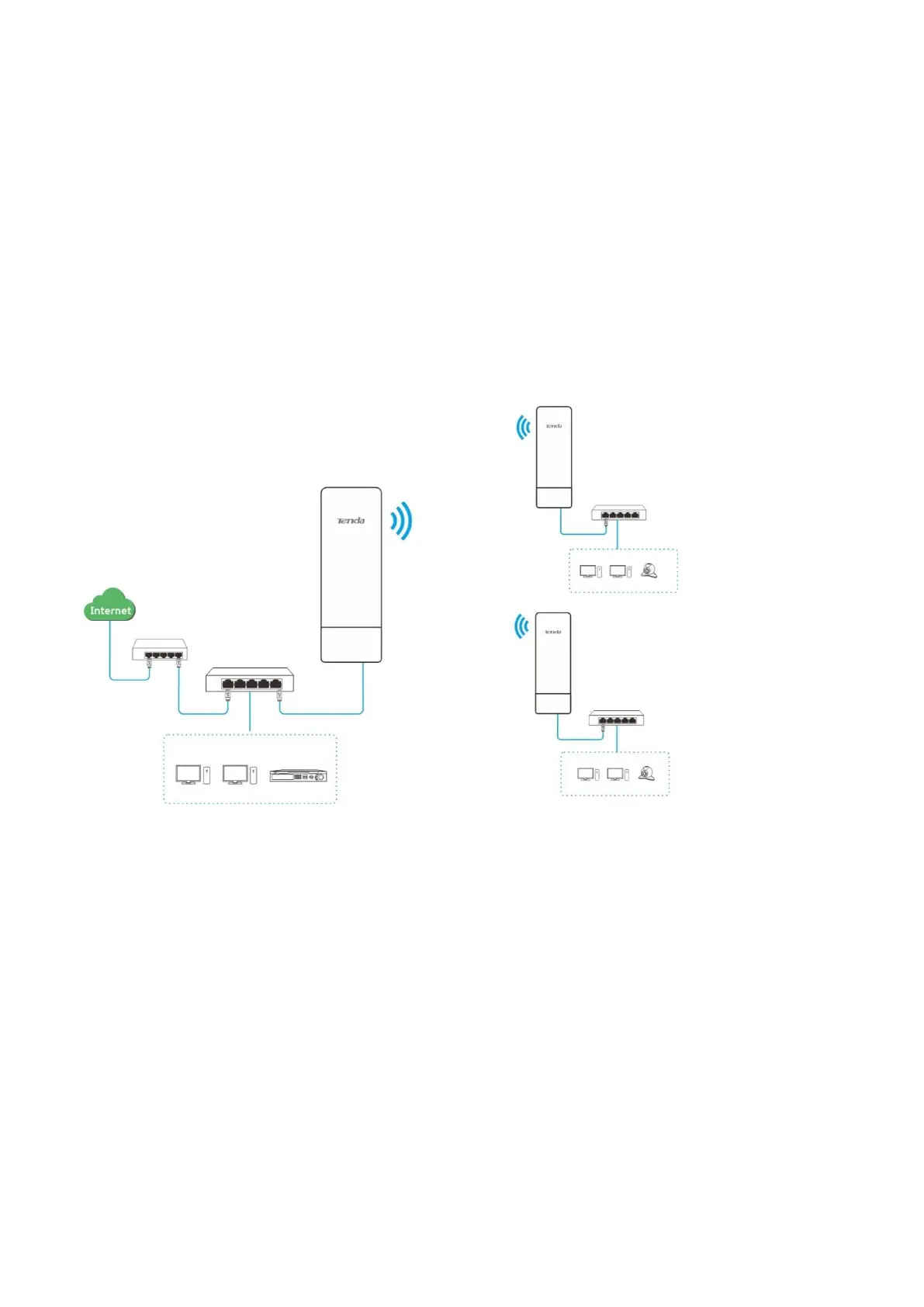

Network topology
Configuration procedures
Assume that the wireless parameters of CPE1 are shown as follows:
− IP Address: 192.168.2.1
− SSID: Tenda_123456
− Channel: 165
− Security mode: None
Step 1 Configure the wireless settings of CPE2.
1. Log in to the web UI of CPE2, and choose Wireless > Basic to enter the configuration page.
2. Change the SSID, which is Tenda_1 in this example.
3. Set the Channel to the same as that of CPE1, which is 165 in this example.
4. Set the Security Mode to the same as that of CPE1, which is None in this example.
CPE3: Repeater mode
CPE1 in P2MP mode
CPE2 in Repeater mode
Switch
Switch
Switch

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
