Tenda O3 User Manual

29
4.3 Example of AP mode and client mode
Network requirement
You want to use two CPEs to establish a CCTV surveillance network.
A CPE can support several IP cameras. The maximum number of IP cameras can be calculated with the
following formula:
Number of IP cameras=Transmitted/received rate of the CPE / Data rate of IP camera
Solution
− Set CPE1 to the AP mode, and connect it to the NVR.
− Set CPE2 to the Client mode, and connect it to IP cameras.

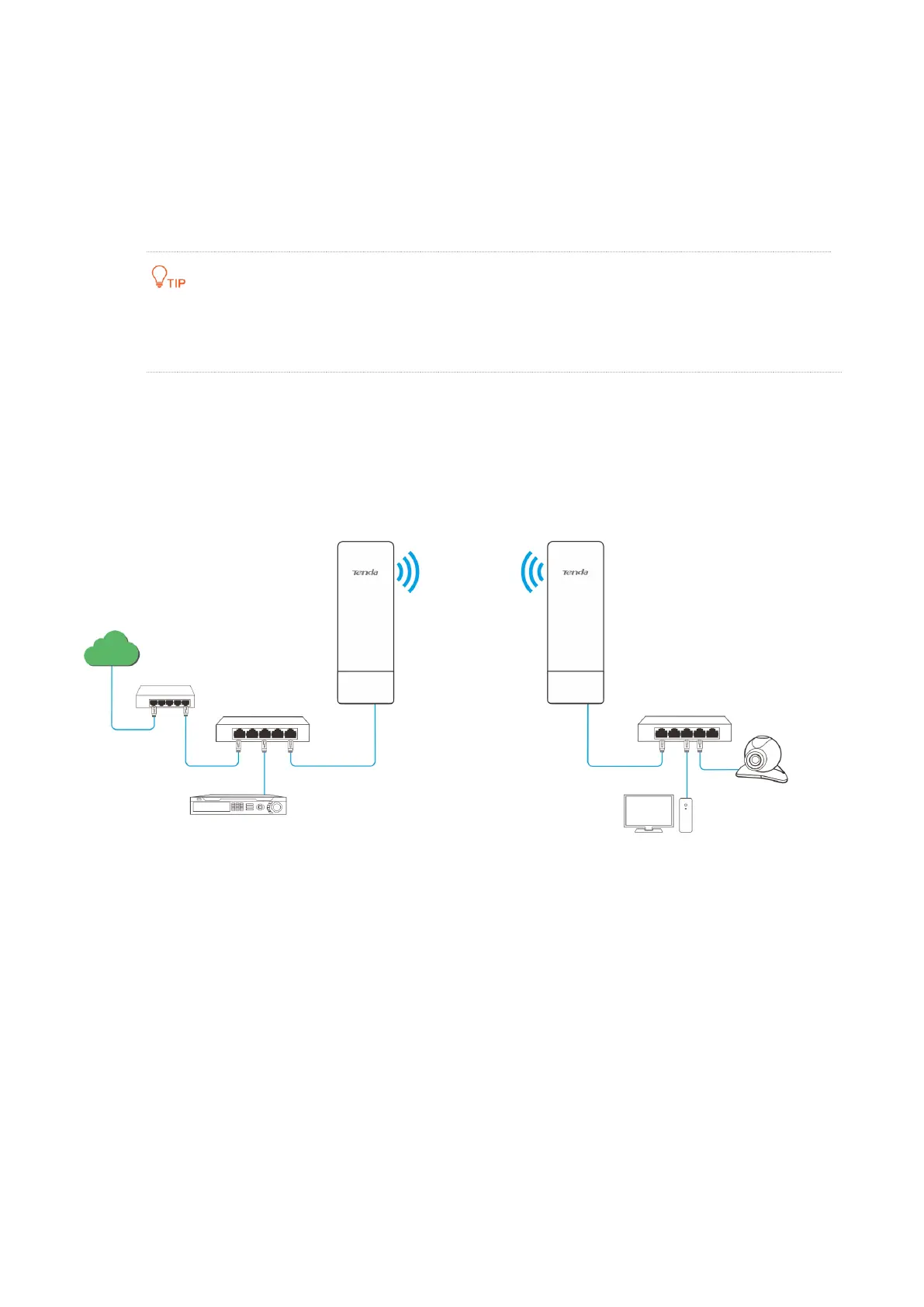

Network topology
Configuration procedures
Step 1 Set CPE1 to AP mode.
1. Log in to the web UI of CPE1, and choose Quick Setup to enter the configuration page.
2. Select AP mode and click Next.
CPE1: AP mode
CPE2: Client mode
Switch
Switch
IP camera
Computer
NVR
Router
Internet

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
