Tenda O3 User Manual

27

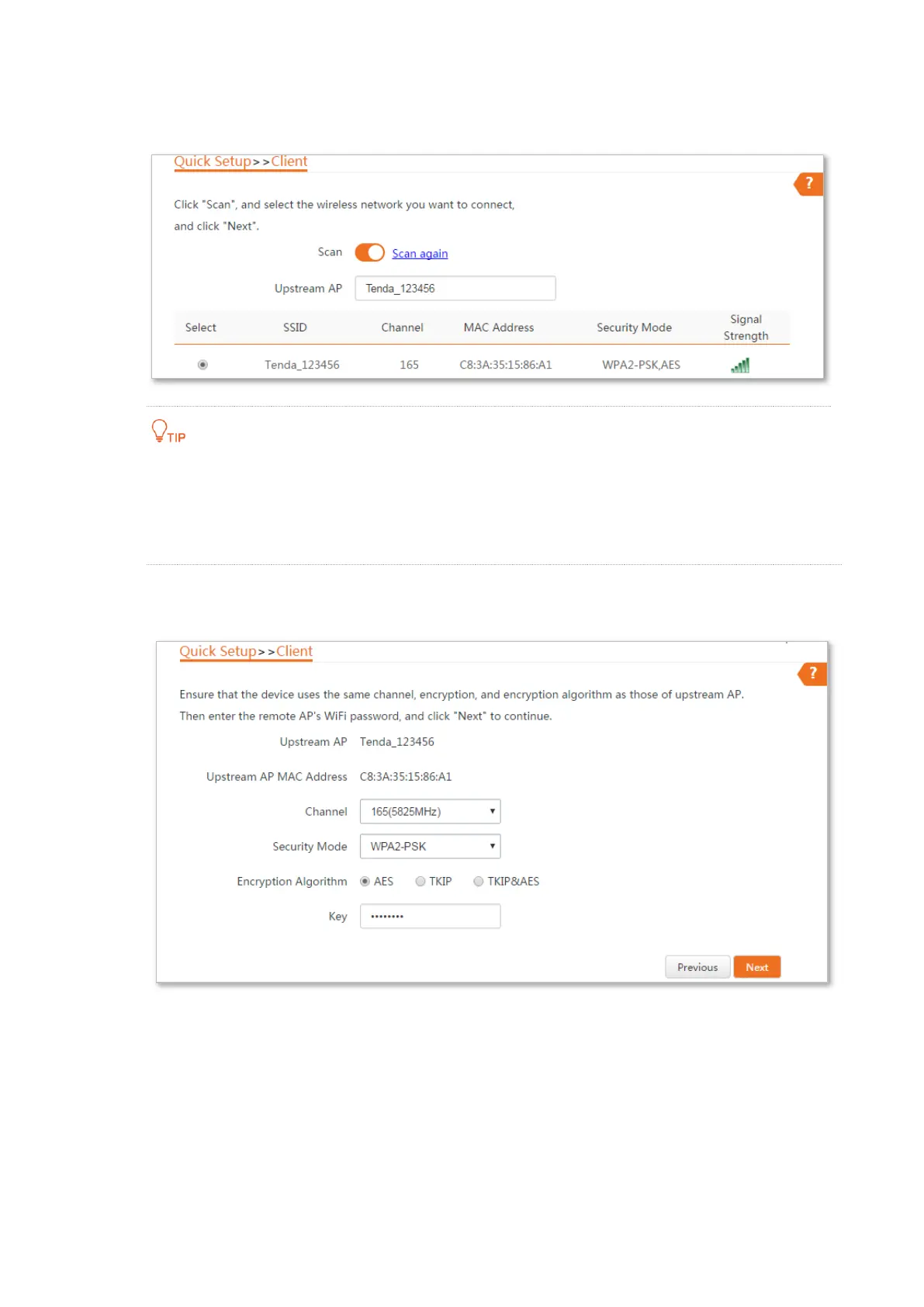

Step 3 Select the SSID of the peer device, which is Tenda_123456 in this example, and click Next
at the bottom of the page.

If you cannot find any SSID from the list, choose Wireless > Basic and enable the wireless function.
Then try again.

If you cannot find the SSID of the CPE in AP mode from the list, adjust the direction of CPE in client
mode, and move it close to the CPE in AP mode.
Step 4 Enter the WiFi password for the selected WiFi network Tenda_123456 in the Key text box,
and click Next.
*

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
