Tenda P200 User Manual

P200 200Mbps PowerLine Mini Adapter
7

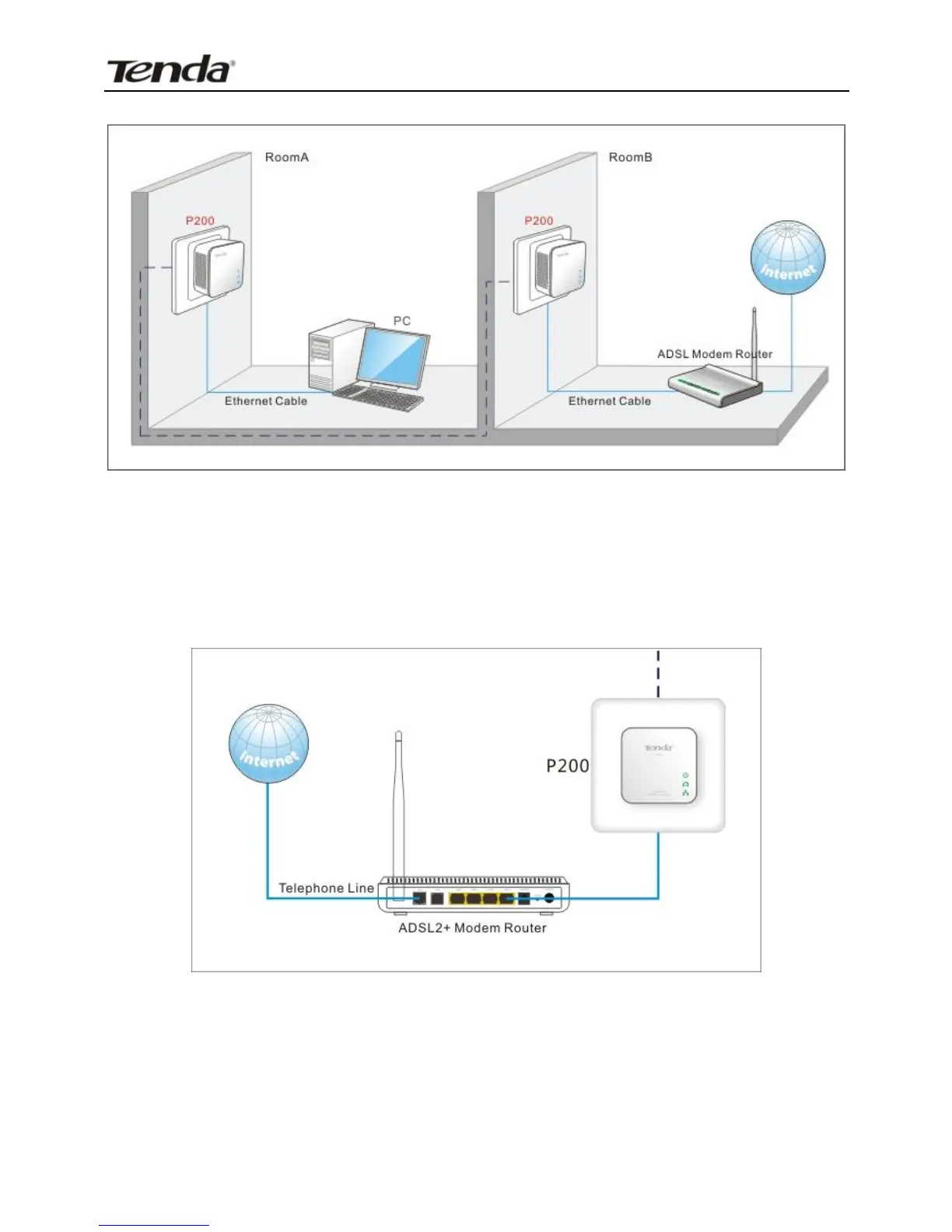

Figure 1-4 Connect Powerline Network to Internet
2.2 Installation Instructions
1. First connect the RJ45 port on the first P200 to one of the LAN ports on
the ADSL2+ Modem Router. And then plug it to a wall outlet as seen below:
Figure 1-5 Connect the First P200 to the Internet-enabled ADSL2+ Modem
Router
2. First connect the second P200 to the PC using an Ethernet cable. And then
plug it into a wall outlet as seen below:

Tenda P200 Specifications

General

Wi-Fi	No
Power plug	-
Ethernet LAN	Yes
Security algorithms	128-bit AES
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	200 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Certification	CE, FCC
Product color	White
LED indicators	LAN, Power
Sustainability certificates	RoHS
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	3 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	27 mm
Width	53 mm
