Wireless N150 Long Range AP/Router
15

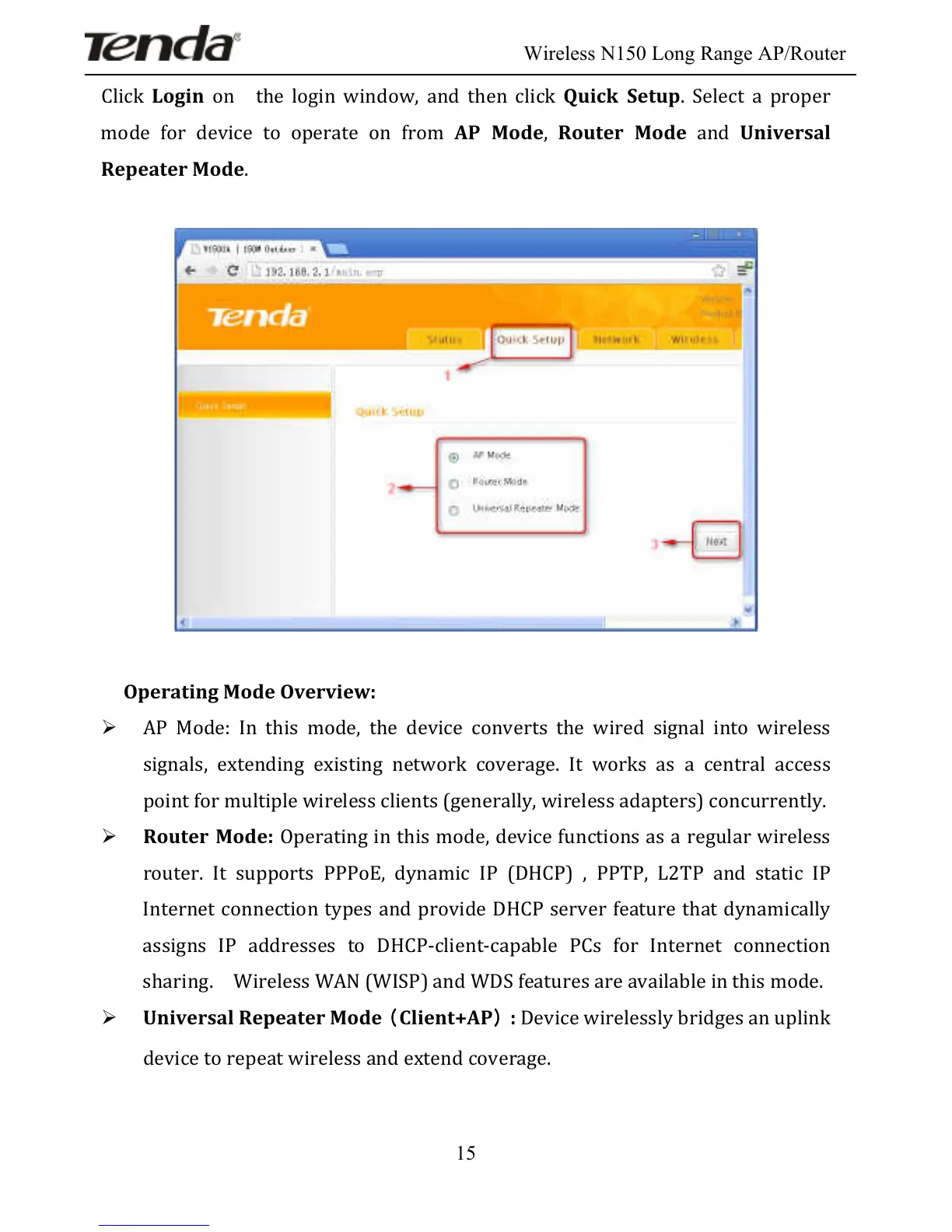

Click! Login! on! ! the! login! window,! and! then! click! Quick! Setup.! Select! a! proper!
mode! for! device! to! operate! on! from! AP! Mode,! Router! Mode! and! Universal!
Repeater!Mode.!
!
!
!
!!Operating!Mode!Overview:! ! !
Ø AP! Mode:! In! this! mode,! the! device! converts! the! wired! signal! into! wireless! !!!
signals,! extending! existing! network! coverage.! It! works! as! a! central! access!
point!for!multiple!wireless!clients!(generally,!wireless!adapters)!concurrently.!
Ø Router!Mode:!Operating!in!this!mode,!device!functions!as!a!regular!wireless!
router.! It! supports! PPPoE,! dynamic! IP! (DHCP)! ,! PPTP,! L2TP! and! static! IP!
Internet!connection!types!and!provide!DHCP!server!feature!that!dynamically!
assigns! IP! addresses! to! DHCP-client-capable! PCs! for! Internet! connection!
sharing.! ! Wireless!WAN!(WISP)!and!WDS!features!are!available!in!this!mode.! !
Ø Universal!Repeater!Mode（Client+AP）:!Device!wirelessly!bridges!an!uplink!
device!to!repeat!wireless!and!extend!coverage.!
