Tenda teg2124t - Chapter 2 Hardware Install; Hardware Install; Connect Device To A Power Source; Network Connection

Wireless N150 Long Range AP/Router
11

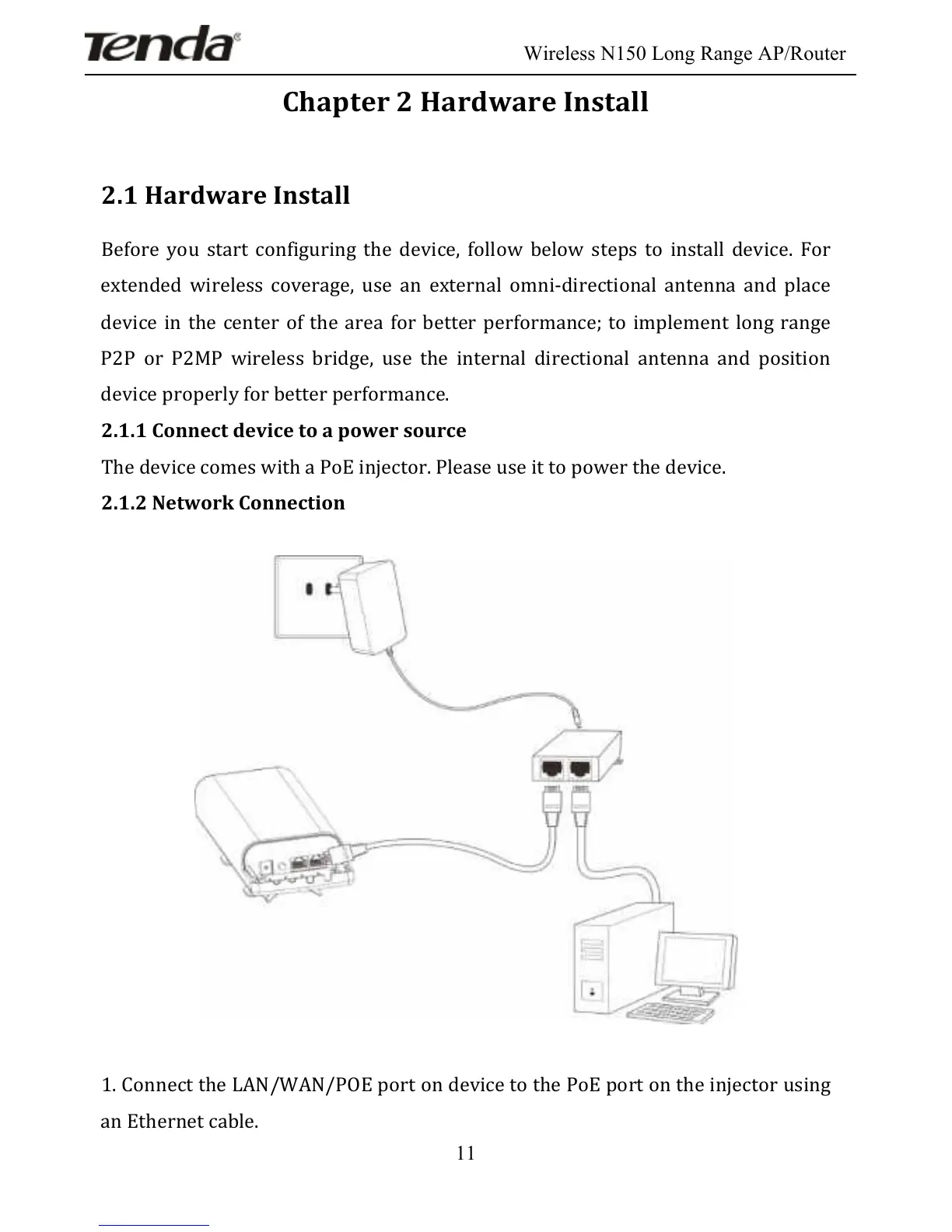

Chapter!2!Hardware!Install!
2.1!Hardware!Install!
Before! you! start! configuring! the! device,! follow! below! steps! to! install! device.! For!
extended! wireless! coverage,! use! an! external! omni-directional! antenna! and! place!
device!in!the!center!of!the!area!for!better!performance;!to!implement! long!range!
P2P! or! P2MP! wireless! bridge,! use! the! internal! directional! antenna! and! position!
device!properly!for!better!performance.!
2.1.1!Connect!device!to!a!power!source!
The!device!comes!with!a!PoE!injector.!Please!use!it!to!power!the!device.!
2.1.2!Network!Connection!
!
!
1.!Connect!the!LAN/WAN/POE!port!on!device!to!the!PoE!port!on!the!injector!using!
an!Ethernet!cable.! !
