Tenda W268R User Manual

11N Wireless Broadband Router
 WPA Algorithms
： Provides TKIP [Temporal Key
Integrity Protocol] or AES [Advanced Encryption
Standard]. The default is TKIP mode.
 Pass Phrase
： Enter the encrypted characters with
8-63 ASCII characters.
 Key Renewal Interval
Set the key’s renewal period. ：

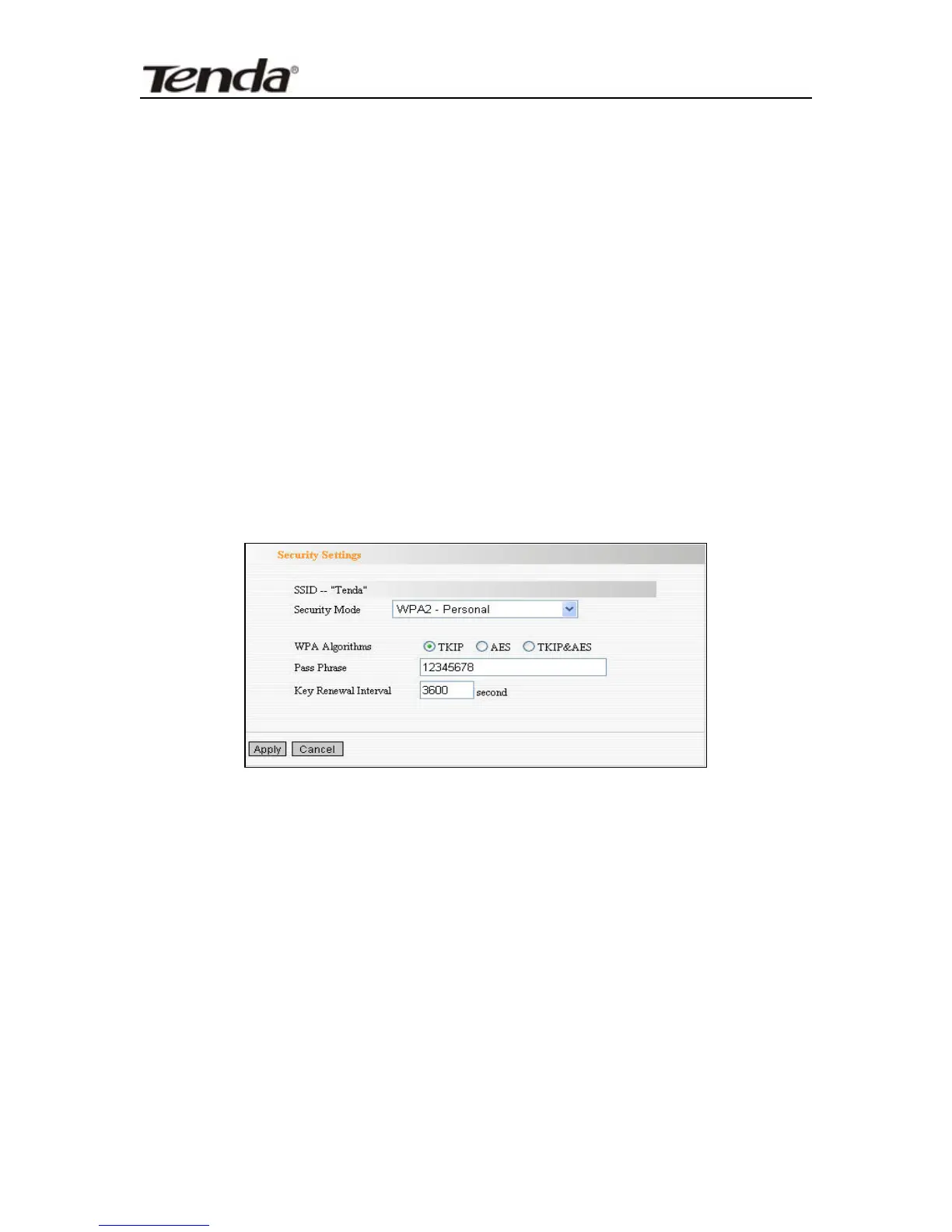

6.2.3 WPA2- Personal
WPA2 (Wi-Fi Protected Access version 2) provides higher
security than WEP (Wireless Equivalent Privacy) and WPA
(Wi-Fi Protected Access).
 Select SSID：Select the SSID (main SSID or minor
SSID) to configure security setting from the drop-down
menu.
 WPA Algorithms ： Provides TKIP [Temporal Key
Integrity Protocol] or AES [Advanced Encryption
Standard]. The default is TKIP mode.
 Pass Phrase
： Enter the encrypted characters with
8-63 ASCII characters.
30

Tenda W268R Specifications

General

VPN support	PPPoE/PPTP/L2TP/802.1x
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	11 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Bandwidth	2.4 GHz
Rack mounting	-
xDSL connection	No
Power requirements	9V DC, 1A
Minimum system requirements	Internet Explorer 5.5, Firefox 1.0+ CD-ROM
Ethernet LAN (RJ-45) ports	4
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Transmit power	0 dBmW
Antenna gain level (max)	2 dBi
Certification	FCC, CE, RoHS
AC input voltage	100 - 240 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product color	White
LED indicators	LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	172 mm
Width	110.2 mm
Height	31 mm
Weight	- g
