Tenda W268R User Manual

11N Wireless Broadband Router

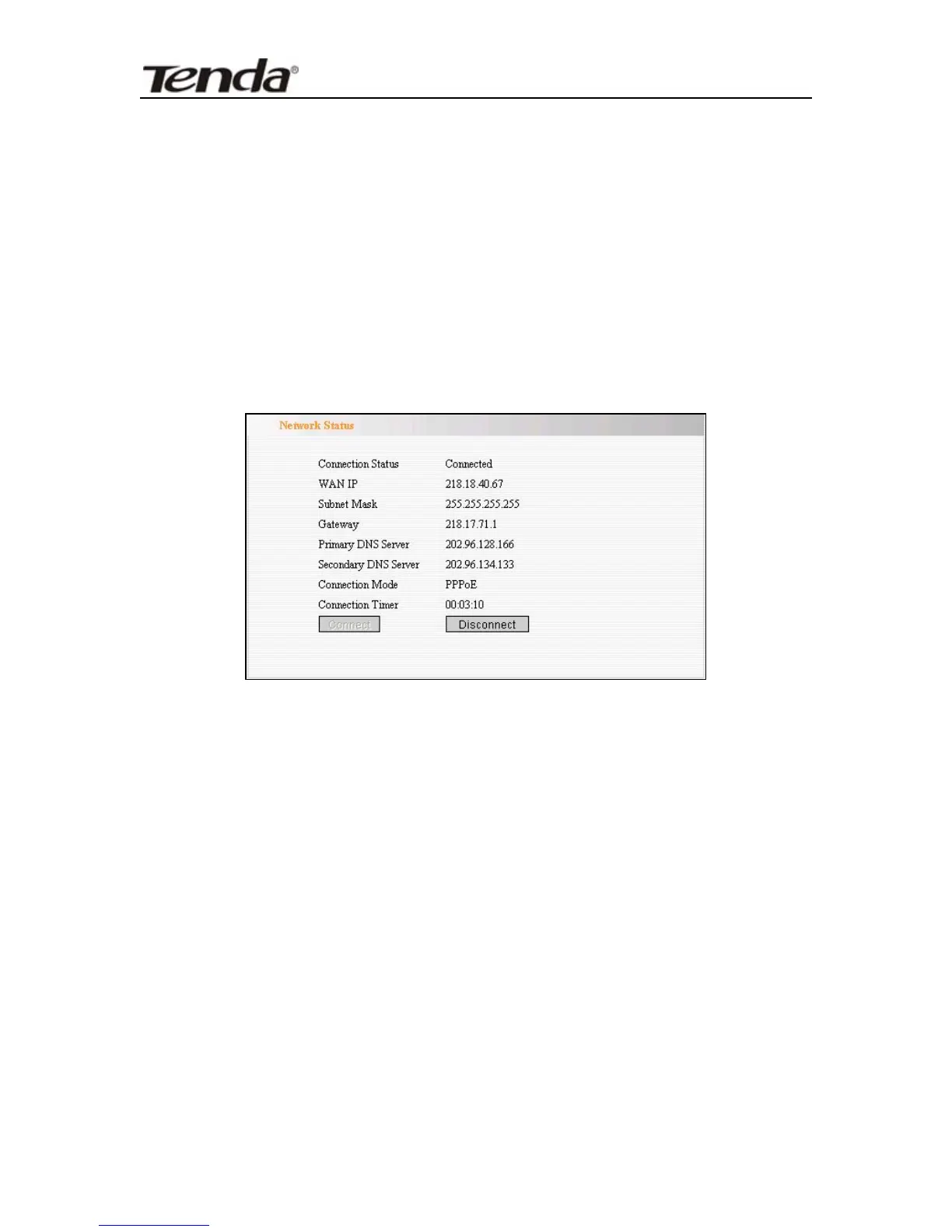

Click the “System Status” in the left menu of the
Web-based Utility to find out the current network and system
information. If the “Connection Status” is “Connected”,
Congratulations you on completing the Router’s basic
settings. You are on the Internet now. If you want to
configure more, please proceed to the following explanations
for Advanced Settings.
L2TP
L2TP Server IP: Enter the Server IP provided by your ISP.
User Name: Enter L2TP username.
Password: Enter L2TP password.
MTU: Maximum Transmission Unit, you may need to change
it for optimal performance with your specific ISP. 1400 is the
default MTU.
Address Mode: Select “Static” if your ISP supplies you with
the IP address, subnet mask, and gateway. In most cases,
17

Tenda W268R Specifications

General

VPN support	PPPoE/PPTP/L2TP/802.1x
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	11 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Bandwidth	2.4 GHz
Rack mounting	-
xDSL connection	No
Power requirements	9V DC, 1A
Minimum system requirements	Internet Explorer 5.5, Firefox 1.0+ CD-ROM
Ethernet LAN (RJ-45) ports	4
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Transmit power	0 dBmW
Antenna gain level (max)	2 dBi
Certification	FCC, CE, RoHS
AC input voltage	100 - 240 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product color	White
LED indicators	LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	172 mm
Width	110.2 mm
Height	31 mm
Weight	- g
