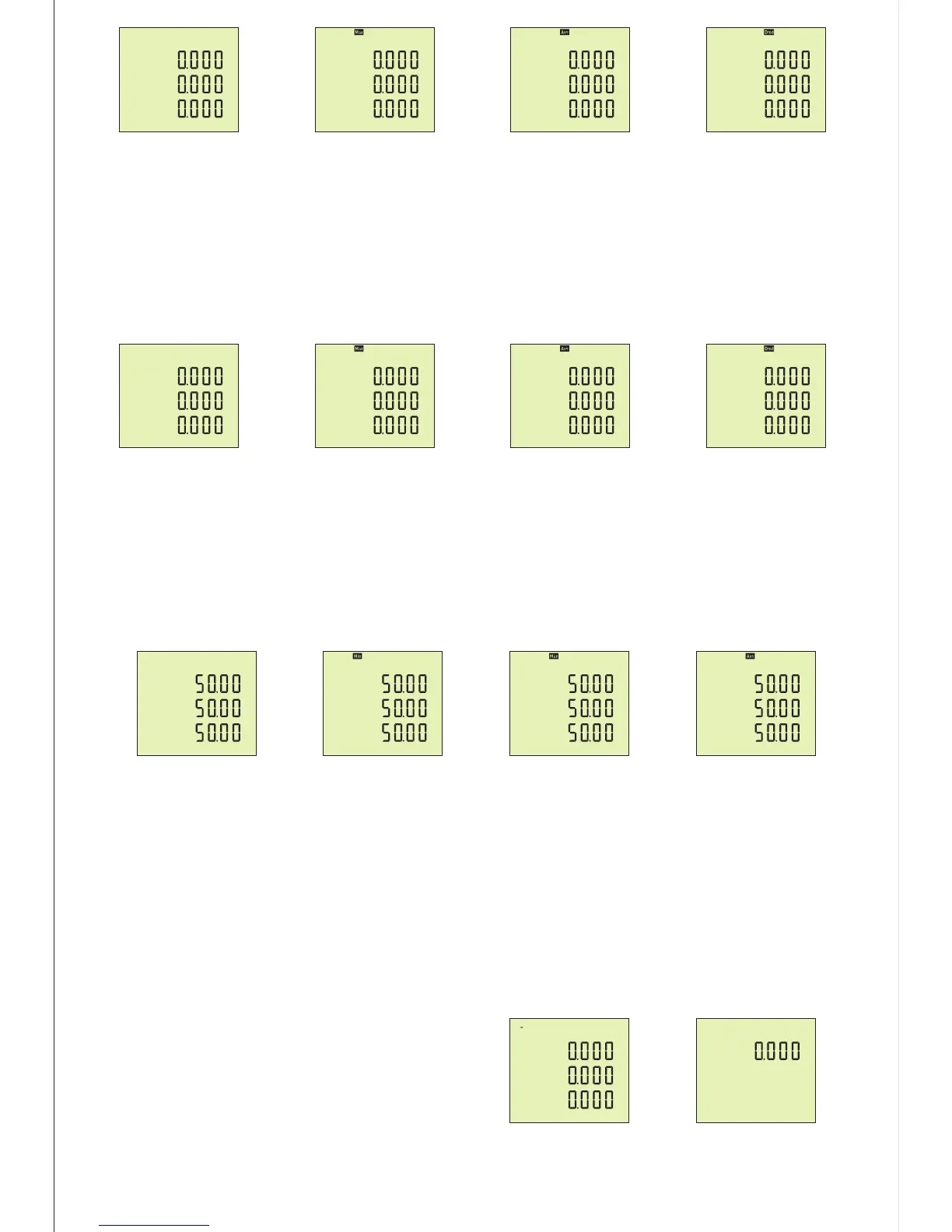

Figure-24: It shows the frequency values of each phase. The figure-25 is displayed when you press the

Down button.

Figure-25: It shows the minimum frequency values of each phase. The figure-26 is displayed when you

press the Down button.

Figure-26: It shows the maximum frequency values of each phase. The figure-27 is displayed when you

press the Down button.

Figure-27: It shows the mean frequency values of each phase. The figure-28 is displayed when you

press the Down button.

Figure-24

Figure-25

Figure-26

Figure-27

Figure-20: It shows the apparent power values of each phase. The figure-21 is displayed when you press

the Down button.

Figure-21: It shows the maximum apparent power values of each phase. The figure-22 is displayed when

you press the Down button.

Figure-22: It shows the mean apparent power values of each phase. The figure-23 is displayed when you

press the Down button.

Figure-23: It shows the apparent power demand values of each phase. The figure-24 is displayed when

you press the Down button.

Figure-20

kVA

Figure-21

kVA

Figure-23

kVA

Figure-22

kVA

Figure-16: It shows the active power values of each phase. The figure-17 is displayed when you press

the Down button.

Figure-17: It shows the maximum active power values of each phase. The figure-18 is displayed when

you press the Down button.

Figure-18: It shows the mean active power values of each phase. The figure-19 is displayed when you

press the Down button.

Figure-19: It shows the active power demand values of each phase. The figure-20 is displayed when

you press the Down button.

Figure-16

Figure-17

Figure-19

Figure-18

kWh

Figure-29

kWh

Figure-28

Figure-28: It shows the active energy values of each

phase. The figure-29 is displayed when you press the

Down button.

Figure-29: It shows total active energy values of each

phase. The Home Screen is displayed when you press

the Down button.
