Controls

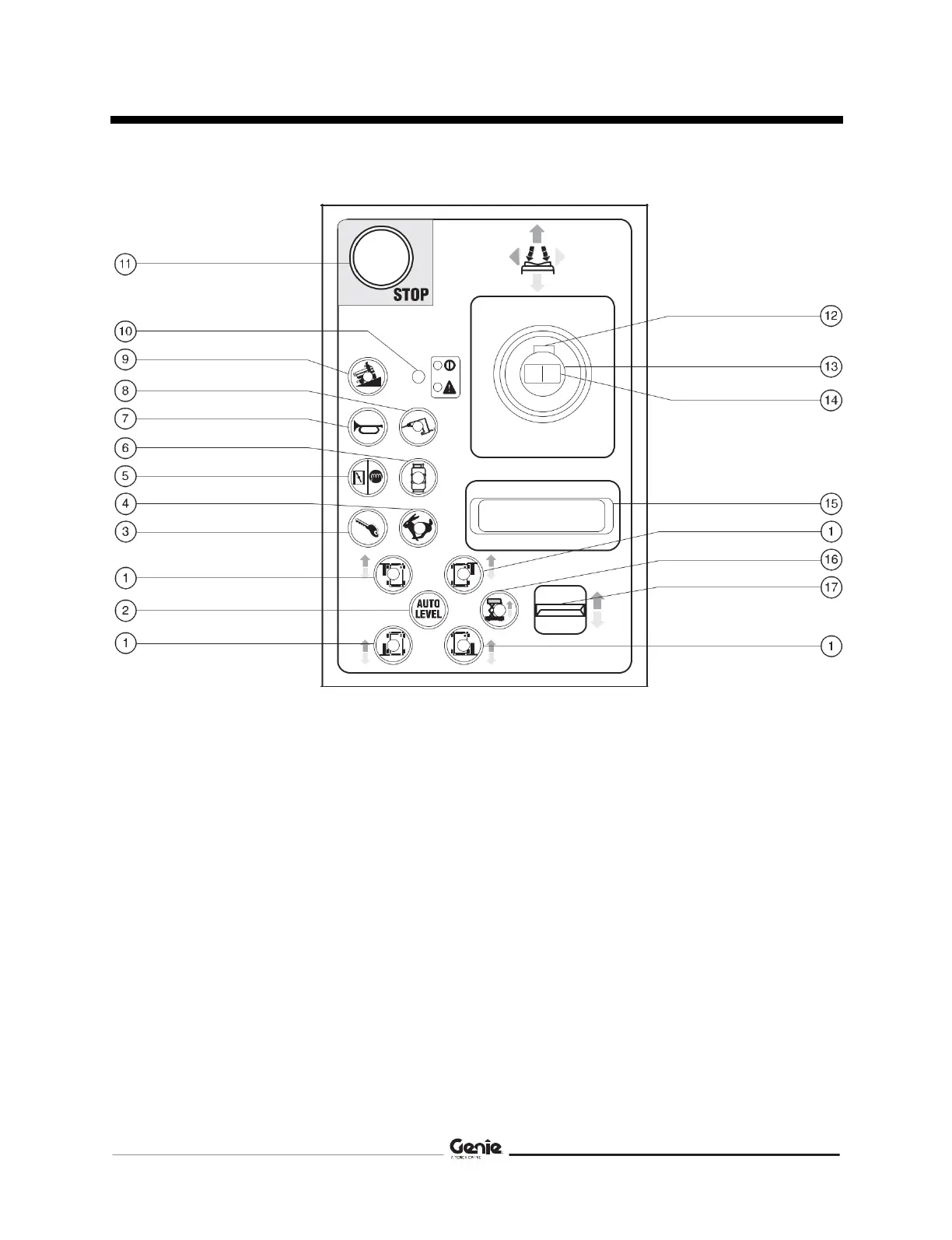

Platform Control Panel
1 Outrigger function enable button with indicator
light
2 Outrigger auto level button
3 Engine start button
4 Engine idle select button with indicator light
5 Gasoline/LPG models: Choke button
Diesel models: Glow plug button
6 Gasoline/LPG models: LPG operation button
with indicator light
7 Horn button
8 Generator select button with indicator light
9 Machine on incline button with indicator
light: Low speed operation for inclines
10 Green power light/Red error indicator light
11 Red Emergency Stop button
12 Function enable switch
13 Proportional control handle for drive function
14 Thumb rocker switch for steer function
15 Wrist rest
16 Lift function enable button with indicator light
17 Proportional rocker switch for outrigger
up/down and platform up/down
22 GS-3384 • GS-3390• GS-4390• GS-5390 Part No. 133564
