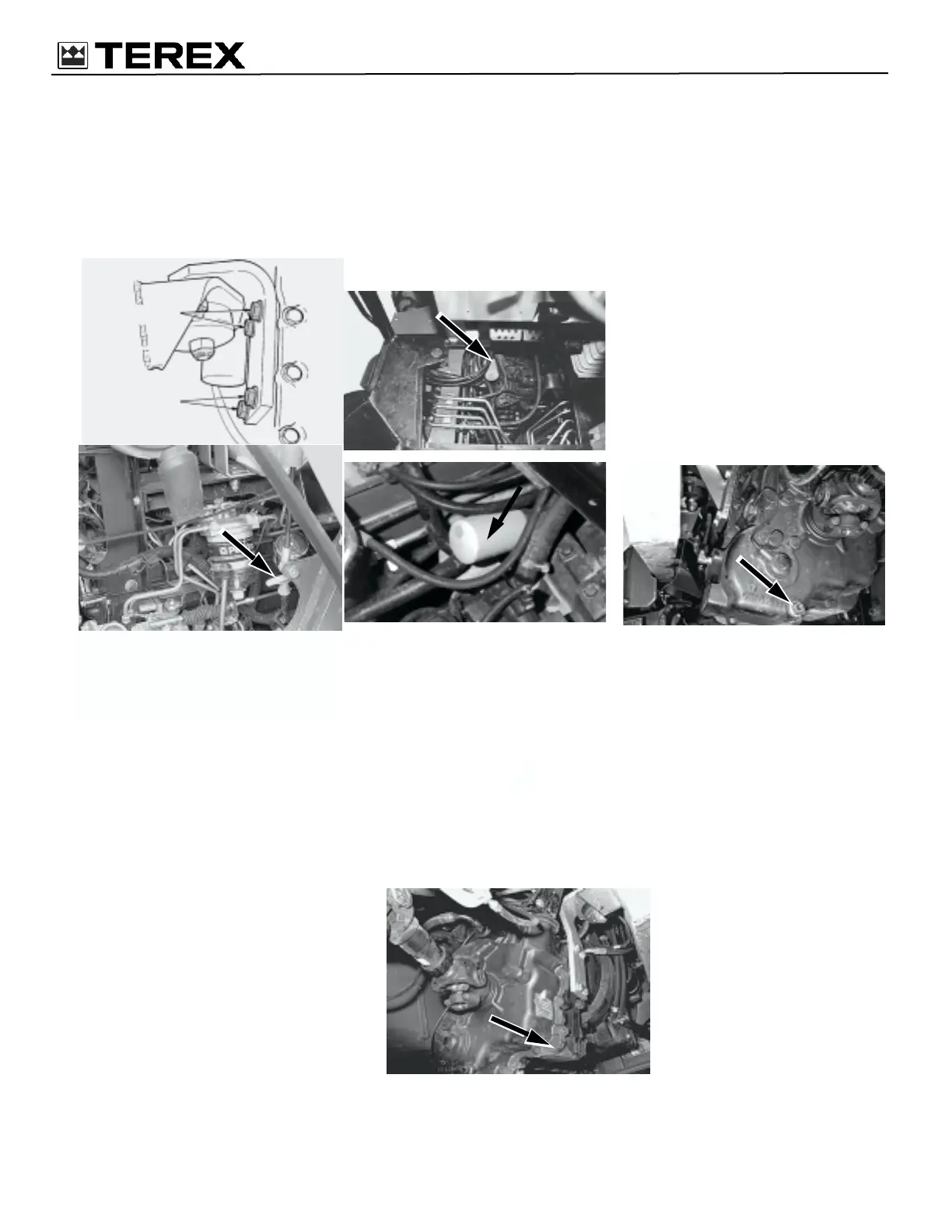

TRANSMISSION
Service specification
Check transmission mounting bolt torques ... Every 250 hours
(After the first 50 hours during the running in period)
Tool required -A torque wrench
Check the tightness of the eight transmission
mounting bolts. (4 each side of machine)
90 - 120 ft lbs.
90 - 120 ft lbs.
TRANSMISSION (After the first 50 hours during the running-in period all services need to be performed)
Oil level check ........................................................ Every 50 hours
NOTE : On synchroshuttle the transmission oil level must be checked with the engine switched
Filter replacement (synchroshuttle and powershift)...Every 500 hours
Cleaning the screen filter (synchroshuttle only) ........Every 1000 hours
Oil change .................................................................Every 1000 hours
Total system capacity (synchroshuttle only) ............. 4.1 US gals (15 litres)
Extreme pressure oil type API CD/SE grade 10W30.
screen filter
drain
17 mm
wrench
Service
Training
43
Replacing the filter
Tools required
- One filter wrench
- One 13 mm wrench
- One oil can
Clean around the cover plate and remove
it. Check the condition of the O-ring and
replace it if necessary. Remove the screen
filter and clean it in a detergent solution.
IMPORTANT : Follow the instructions for
the detergent solution.
Dry the screen filter carefully with
compressed air and install it.
IMPORTANT : Make sure you protect your
face before using compressed air.
Install the cover plate.
Remove the access panel
in the cab to get to filter.
(synchroshuttle only).
Cleaning the Screen Filter
