OIL PUMP PRESSURE TEST
Special tools
Pressure gauge 600 psi (50 bar) with adaptor.
Test procedure
1. Park the machine on a level surface.
2. Work the machine until the transmission reaches
its working temperature of 176°F (80°C).
3. Stop the engine and set the parking brake to on.
4. Remove the test point M5 plug and connect the
pressure gauge to the test point.
5. Start the engine and set the engine speed at
2200rpm.Thepressuregaugereadingmustbe
200 to 220 psi (14 to 15 bar).
6. Stop the engine, remove the pressure gauge and
adaptor and install plug.

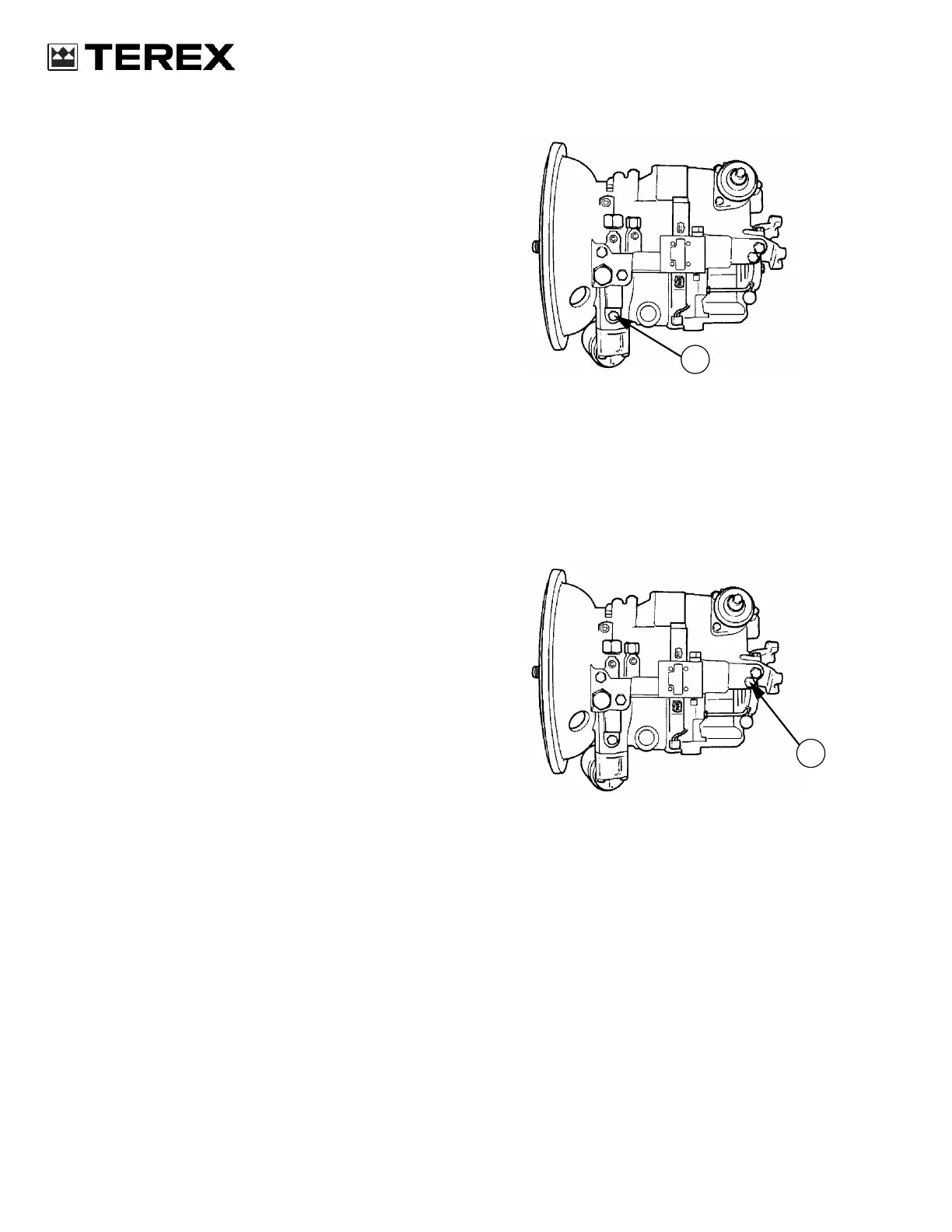

CI98G502
M5. Oil pump pressure test connection
M5
REVERSE CLUTCH PRESSURE TEST
Special tool :
Pressure gauge 600 psi (50 bar) with adaptor.
test procedure
1. Park the machine on a level surface.
2. Works the machine until the transmission
reaches its working temperature of 176°F (80°C).
3. Stop the engine and set the parking brake to on.
4. Remove the test point M2 plug and connect the
pressure gauge to the test point.
5. Start the engine, select reverse travel direction
and set the engine speed at 2200 rpm. The
pressure gauge reading must be 196 to 210 psi
(13.5to14.5 bar).
6. Stop the engine, remove the pressure gauge
and adaptor and install plug.
CI98G502
M2. Reverse clutch test point
M2
