9001-6
78
PARKING BRAKE ADJUSTMENT
(750, 760 and 860 Versions AGCO Axle)
STEP 1
Park the machine on hard level ground, lower the
loader bucket to the ground and place blocks under
the rear wheels.
STEP 2
Release the parking brake and stop the engine.
STEP 3
Make sure the cables (7) are correctly attached to the
parking brake lever.
STEP 4
Adjust the lock nuts (1) on the cables so that the play
between the end of the cable eyes (2) and the brake
lever pins (3), (4) measures 1 to 2 mm.
NOTE :
The cables must not be taut.
WARNING :
Before making adjustments to
the parking brake is correctly adjusted (see
Section 7000).
!
PARKING BRAKE SWITCH
ADJUSTMENT (750, 760 and
860 Versions)
STEP 1
Place the parking brake in released position.
STEP 2
Tighten the contactor (5) in the plate (6) until the con-
tactor plunger is completely compressed.
STEP 3
Loosen the contactor two complete turns and then
lock it in this position.

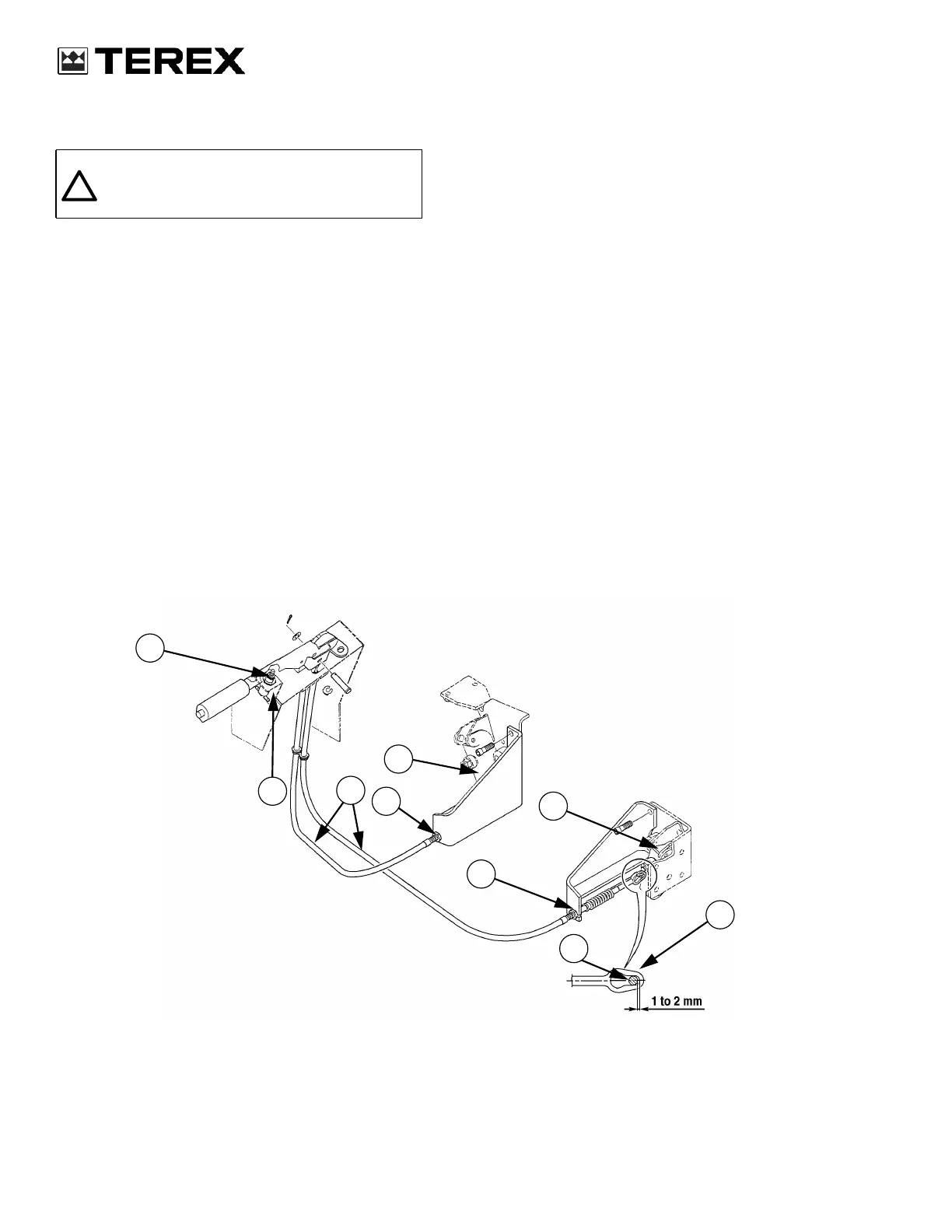

CI98F510
2
1
4
4
1
7
6
5
3
1. Lock nut
2. Eyes
3. Pin
4. Brake lever
5. Contactor
6. Plate
7. Cable
