FORWARD CLUTCH PRESSURE TEST
Tools
Pressure gauge 600 psi (50 bar) with adaptor.
Test procedure
1. Park the machine on a level surface.
2. Work the machine until the transmission reaches
its working temperature at 176°F (80°C).
3. Stop the engine and set the parking brake to on.
4. Remove the test point M1 plug and connect the
pressure gauge to the test point.
5. Start the engine, select forward travel direction
andsettheenginespeedat2200rpm.The
pressure gauge reading must be 196 to 210 psi
(13.5 to 14.5 bar).
6. Stop the engine, remove the pressure gauge and
adaptor and install plug.

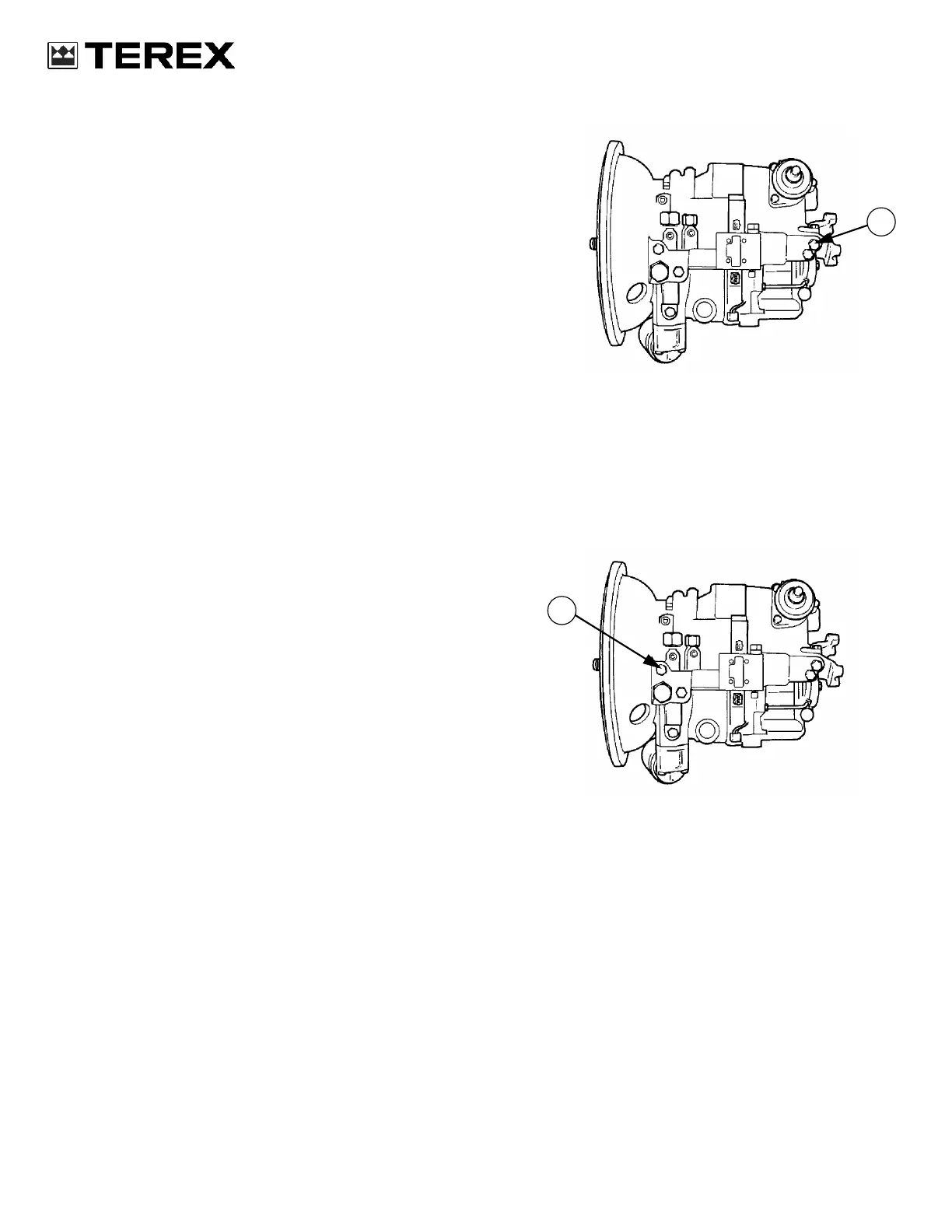

CI98G502
M1. Forward clutch test point
M1
TORQUE CONVERTER RELIEF VALVE PRESSURE TEST
Tools
Pressure gauge 600 psi (50 bar) with adaptor.
Test procedure
1.Park the machine on a level surface.
2. Work the machine until the transmission
reaches its working temperature of 176°F (80°C).
3. Stop the engine and set the parking brake to on.
4. Remove the test point M3 plug and connect to
the pressure gauge to the test point.
5. Start the engine and set the engine speed at
2200rpm.Thepressuregaugereadingmustbe
95 to 110 psi (6.5 to 7.5 bar).
6.Stoptheengine,removethepressuregauge
and adaptor and install plug.
CI98G502
M3. Torque converter test point
M3
