6002-12
46
LUBRICATION CIRCUIT PRESSURE TEST
Tools
Pressure gauge 0 to 50 bar with adaptor.
Test procedure
1. Park the machine on a level surface.
2. Work the machine until the transmission reaches
its working temperature of 176°F (80°C).
3. Stop the engine and set the parking brake to on.
4. Remove the test point M4 plug and connect the
pressure gauge to the test point.
5. Start the engine and set the engine speed at
2200 rpm. The pressure gauge reading must be
22 to 44 psi (1.5 to 3 bar).
6. Stop the engine, remove the pressure gauge and
adaptor and install plug.

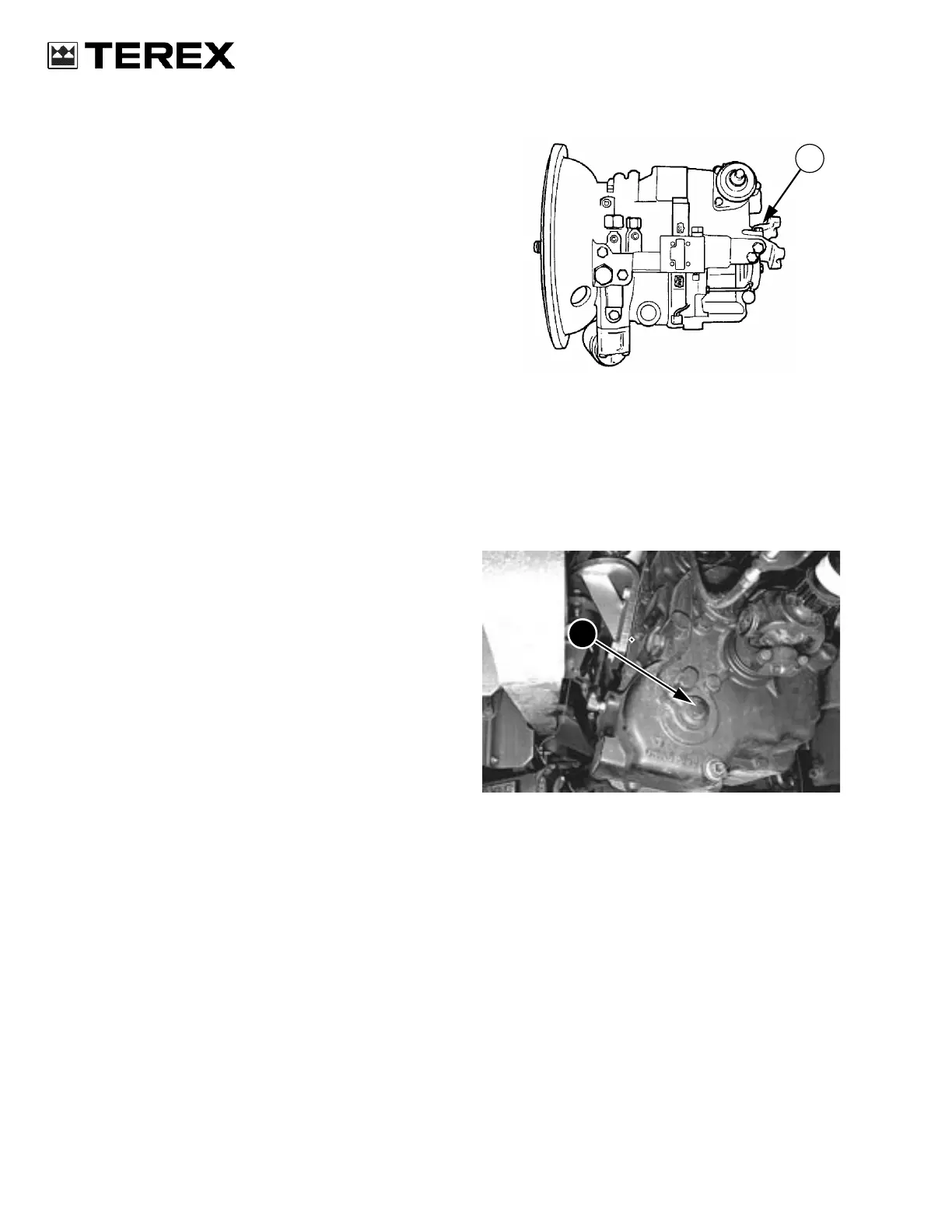

CI98G502
M4. Lubrification pressure test point.
M4
FOUR WHEEL DRIVE CLUTCH PRESSURE TEST
Tools
Pressure gauge 0 to 50 bar with adaptor.
Test procedure
1. Park the machine on a level surface.
2. Work the machine until the transmission
reaches its working temperature of 176°F (80°C).
3. Stop the engine and set the parking brake to on.
4. Remove the test point M6 plug and connect the
pressure gauge to the test point.
5. Start the engine and set the engine speed at
2200 rpm. The pressure gauge reading must be
200 to 218 psi (14 to 15 bar).
6. Stop the engine, remove the pressure gauge
and adaptor and install plug.
CK98G001
M6. Four wheel drive test point.
M6
