Routine checks:
In the axle, lubricant should be flush with control plug
(1) and (3). If not, make up level with the same oil.
If leakage or any other factor determining fall in the oil
level is found, then it is advisable to check immediately,
in order to avoid damages to the mechanical parts.

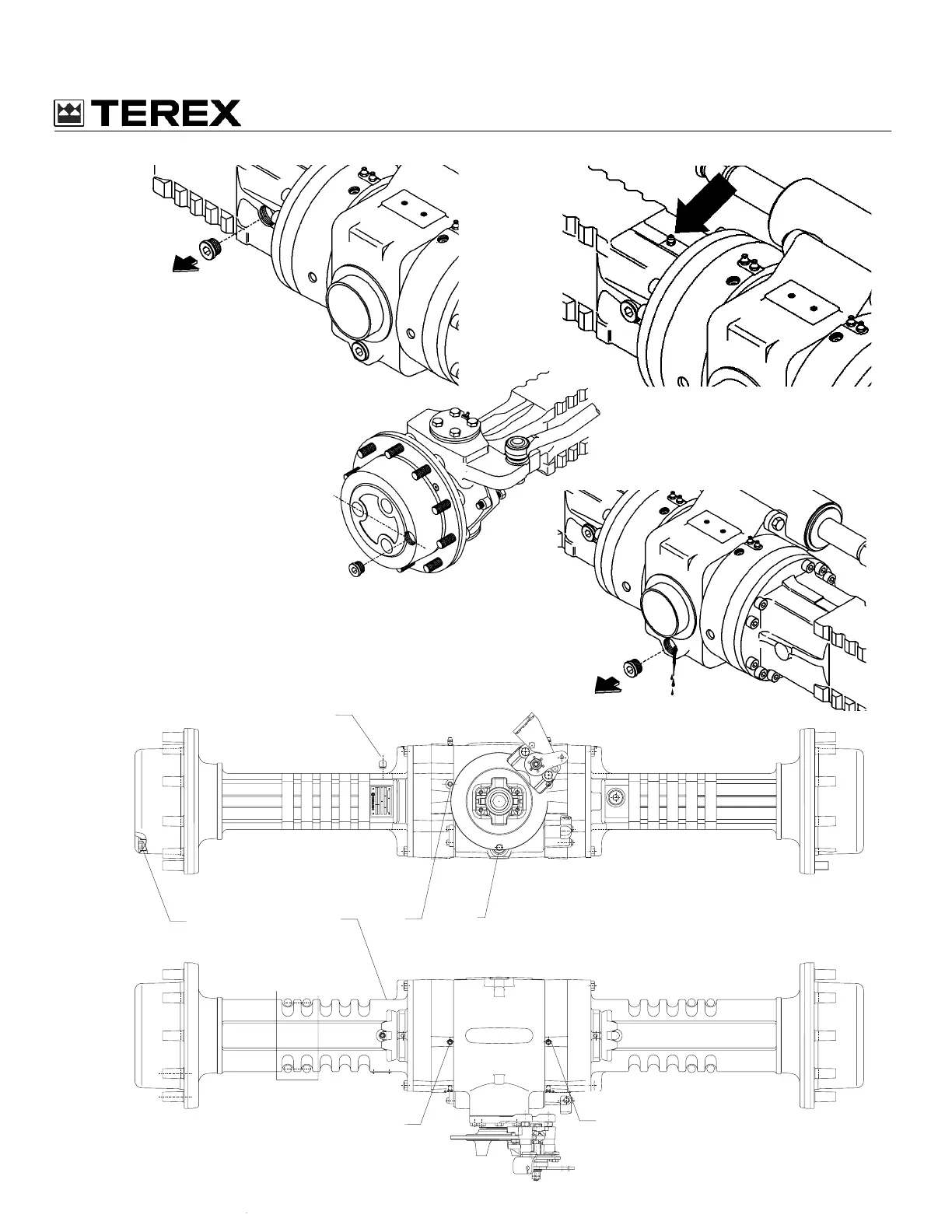

Loosen and remove the drain plug for oil draining (4 and 3).
1
DIFFERENTIAL OIL FILLING AND
LEVEL PLUG
2
OIL BREATHER
3
FILL / DRAIN AND LEVEL PLUG OF
EPICYCLIC REDUCTION GEAR OIL
4
DIFFERENTIAL OIL DRAIN PLUG
GREASING POINTS
5
BRAKE BLEED PLUG
6
SERVICE BRAKE OIL PORT
3
6
5
1
5
5
4
