Terex Fermec 760 - AXLES AND TIRES; BRAKES AND STEERING SYSTEMS

To Next Page

To Previous Page

Service

Training

AXLES

• Fixed rear axle Manufacturer – CARRARO, differential with lock, planetary gears, epicyclical hubs and wet disc brakes.

• Oscillating front axle All models - Make...... CARRARO

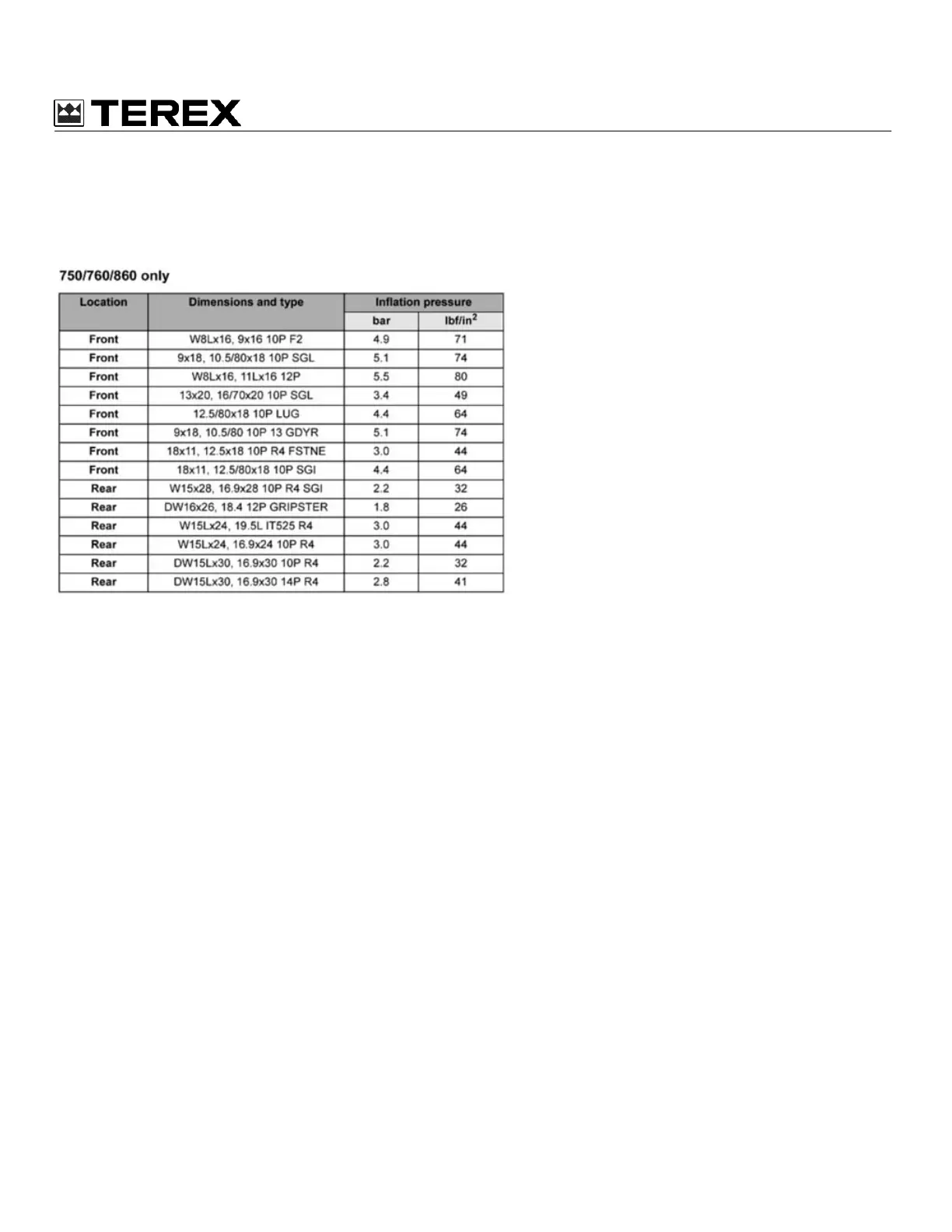

TIRES

WHEEL TIGHTENING TORQUE

• Front wheel nuts (750/760/860 only)....................................... 220 ft lbs (300 Nm)

• Rear wheel nuts (all models).................................................... 220 ft lbs (300 Nm)

BRAKES

Service Brakes

• Oil-immersed disc brakes in the rear drive shafts. Hydraulic operation by brake pedal master cylinders

Parking Or Emergency Brake

• Hand-lever and cables operated through a totally separate mechanical system to directly operate a large caliper type disc brake.

STEERING

• Type ................................………………………………………. Hydrostatic

• Pressure................................................................................... 2500 psi (175 bar)

Turning circle

760 only (

Turning circles are the same for both 4WD and 2WD machines)

• Outside front wheels, no brakes................................................................. 27’ 7” (8.4 m)

• Outside front wheels, with brakes .............................................................. 23’ 8” (7.2 m)

• Outside bucket, no brakes ......................................................................... 36’ 5” (11.1 m)

• Outside bucket, with brakes ..................................................................... 32’ 10” (10.0 m)
