BOOM LATCH CABLE ADJUSTMENT
1. Make sure the cable is correctly fixed to the
boom latch control lever (1).
2. Adjust the cable sheath stop (2) on the latch side
of the boom, so the cable is slighty slack.
3. Try the boom latch a few times. If the catch (3)
does not engage in its housing, slacken the
cable by moving the cable sheath stop (2)
towards the boom.

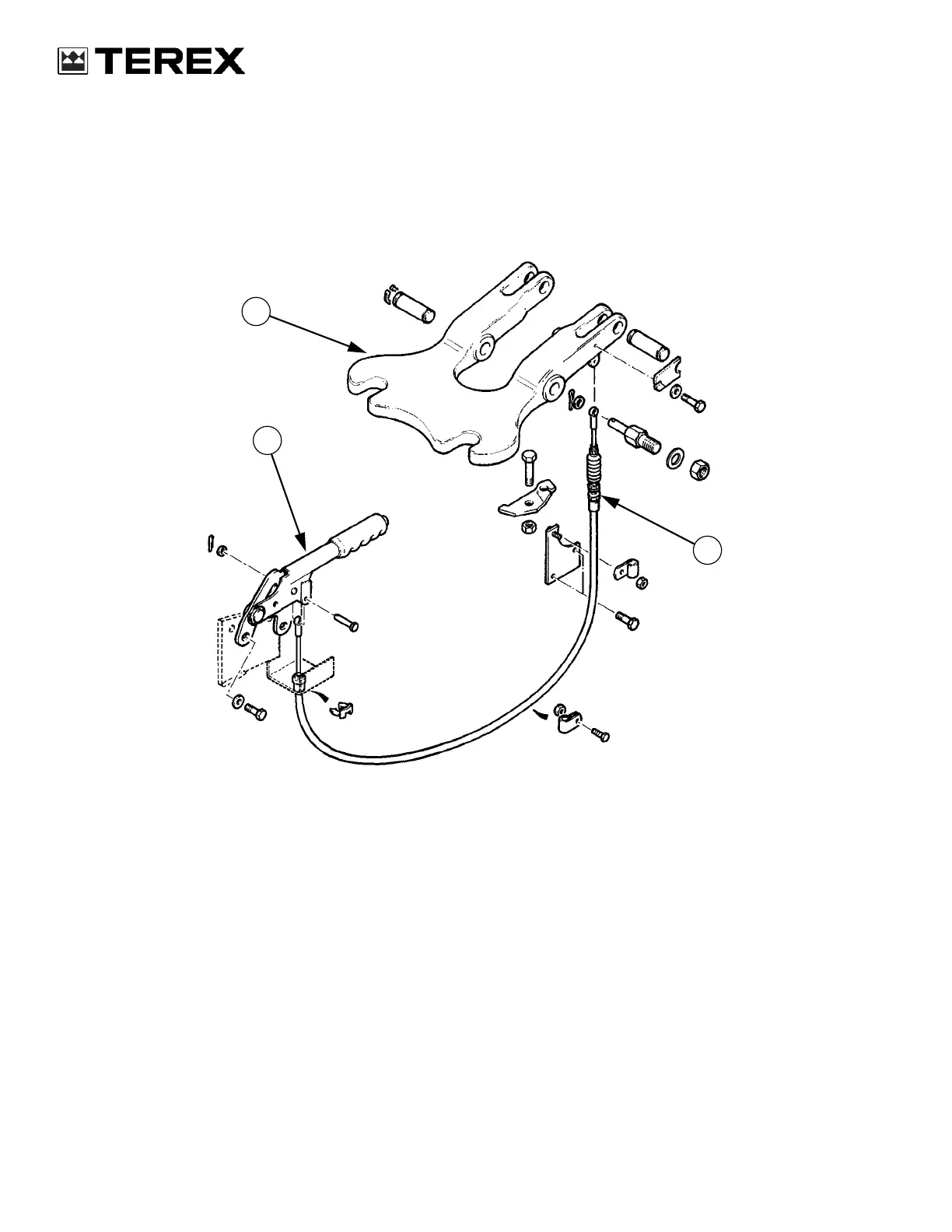

CI98F514
3
1
2
1. Boom latch control lever
2. Sheath stop
3. Catch
