May 2015
106 GTH 4016 R - GTH 4018 R - GTH-5021 R Part No. 57.0009.0607
Second Edition - First Printing

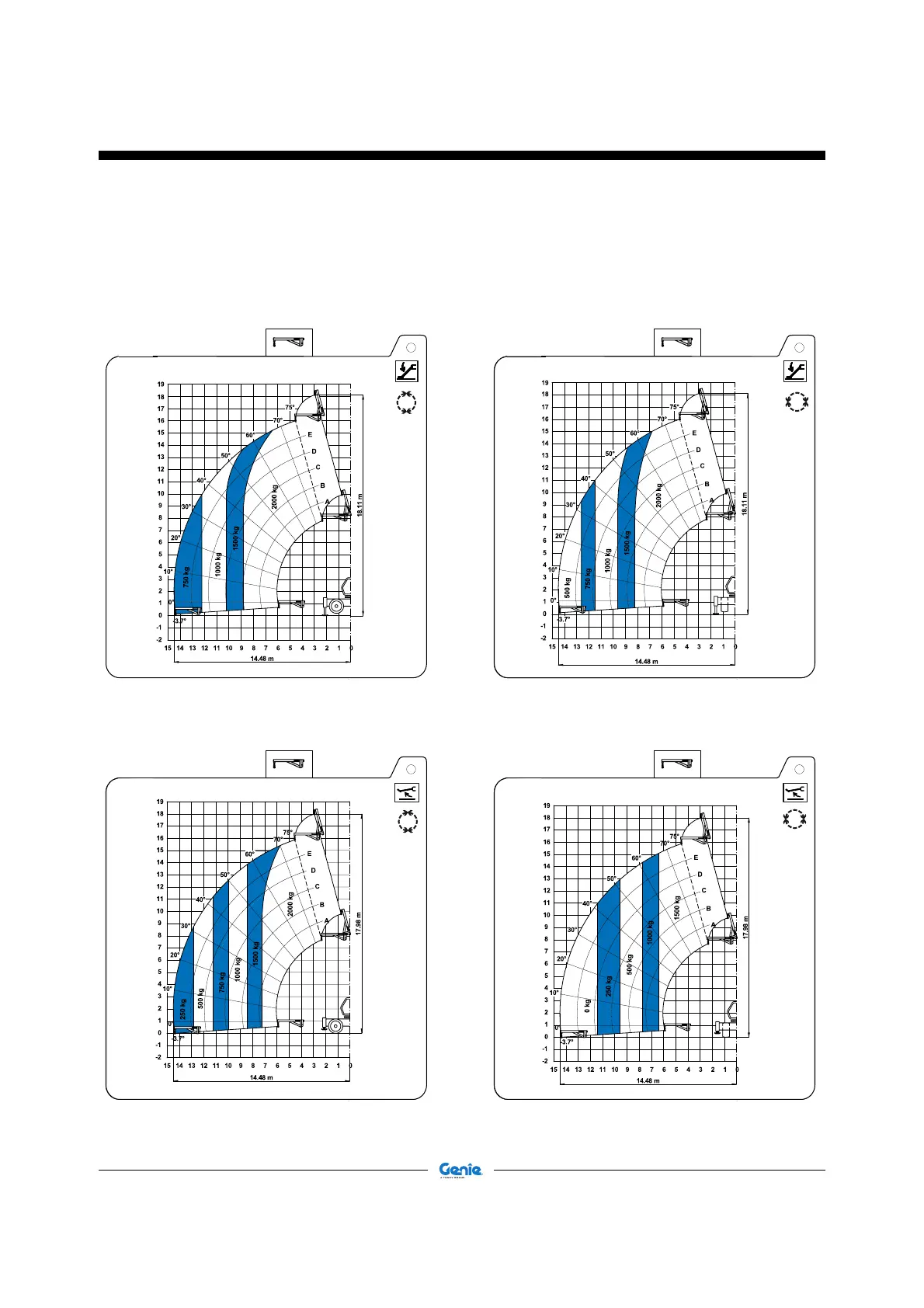

Load Charts
GTH-4016 R, 2000Kg Jib
09.4618.1931
GTH-4016 R
0°
180°
09.4618.1932
GTH-4016 R
±90°ĈĈĈ
09.4618.1933
GTH-4016 R
0°
180°
09.4618.1934
GTH-4016 R
±90°ĈĈĈ
