May 2015
28 GTH 4016 R - GTH 4018 R - GTH-5021 R Part No. 57.0009.0607
Second Edition - First Printing

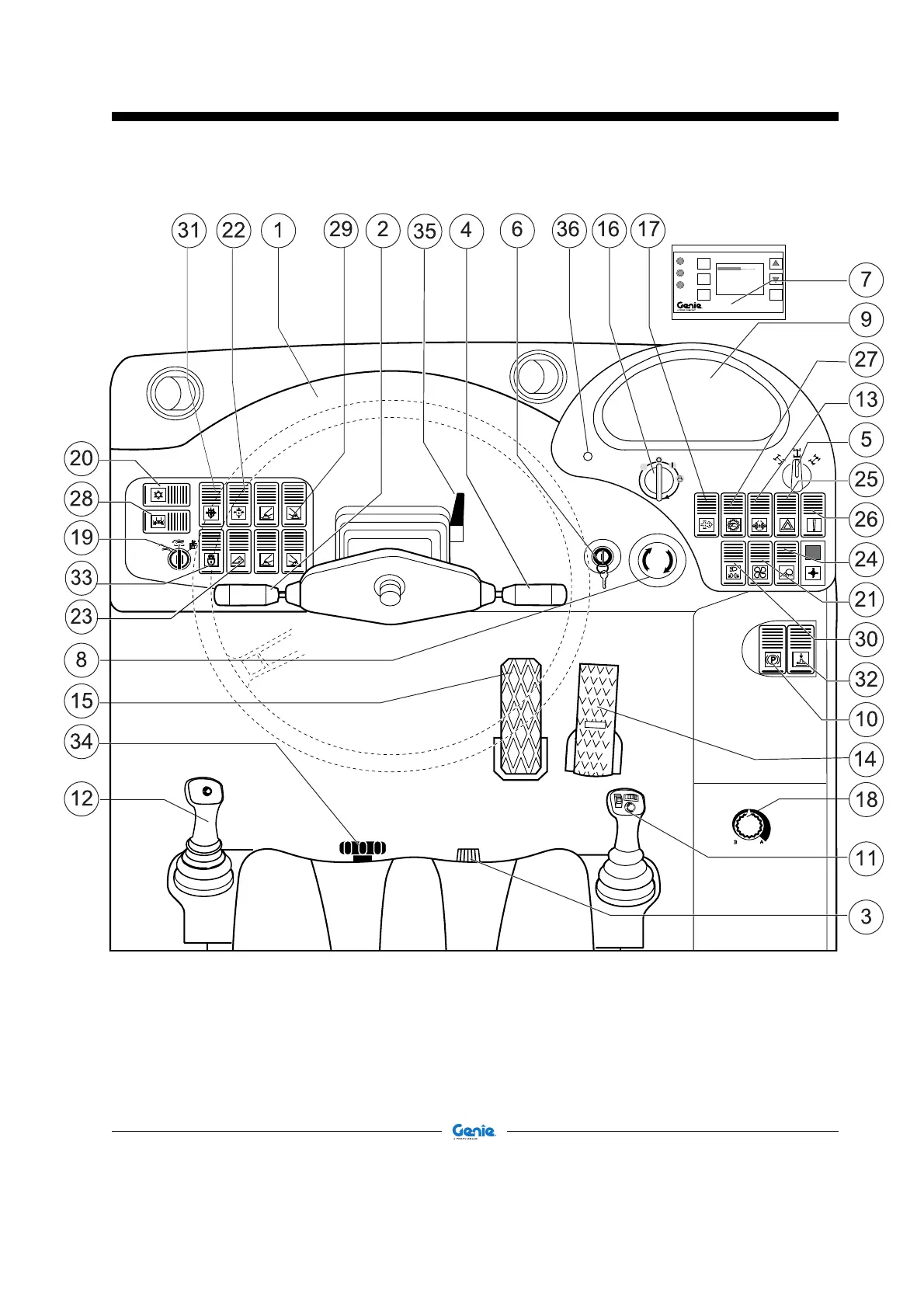

Controls
P
ENTER
FORCHE
STAB. FRONTALE
PESO SOLL. ......................50.3t
CARICO MAX ....................10.2t
RAGGIO ............................12.3m
55%
ESC
+
-
