Terex Genie GTH-4016 R User Manual

May 2015Second Edition - First Printing
Part No. 57.0009.0607 GTH 4016 R - GTH 4018 R - GTH-5021 R 27

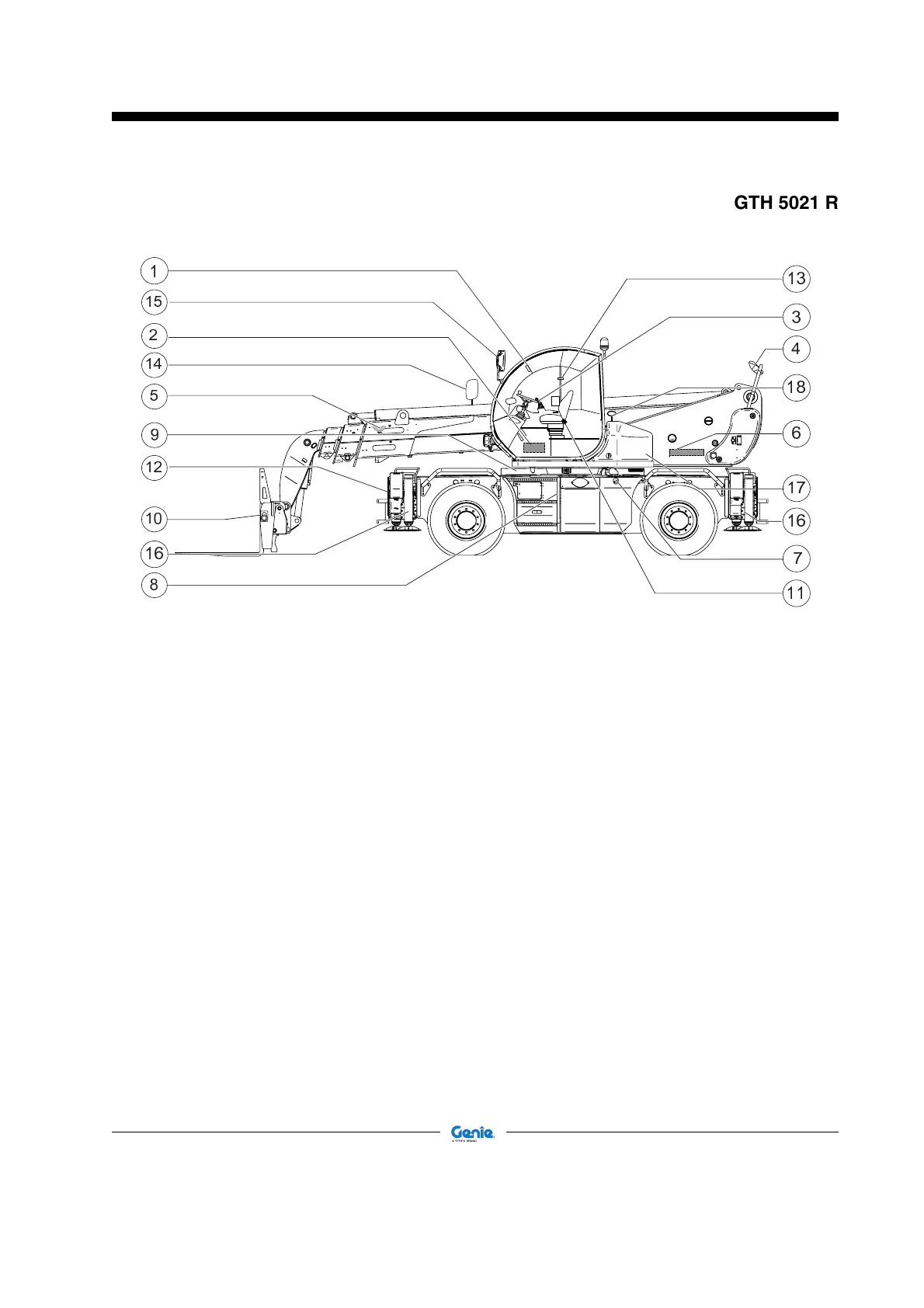

Legend
1. Left/right level indicator
2. Operator’s manual storage
(door internal side)
3. Right functions joystick
4. Rear fish eye mirror
5. Boom angle indicator
6. Maintenance collar (on
opposite side of machine)
7. Fuel filler
8. Hydraulic oil level gauge
9. Engine (on opposite side of
machine)
10. Forks
11. Seat belt
12. Outriggers pads (if equipped)
13. Front/rear level indicator
14. Right rear view mirror
15. Left rear view mirror
16. Outriggers
17. Main valve housing
18. Slewing upper structure locking
pin
 

 

 


 





 
 

 
 

 
GTH 5021 R

Terex Genie GTH-4016 R Specifications

General

Brand	Terex
Model	Genie GTH-4016 R
Category	Lifting Systems
Language	English
