Terex Genie GTH-4016 R User Manual

May 2015Second Edition - First Printing
Part No. 57.0009.0607 GTH 4016 R - GTH 4018 R - GTH-5021 R 73
Operating Instructions
3
1
2

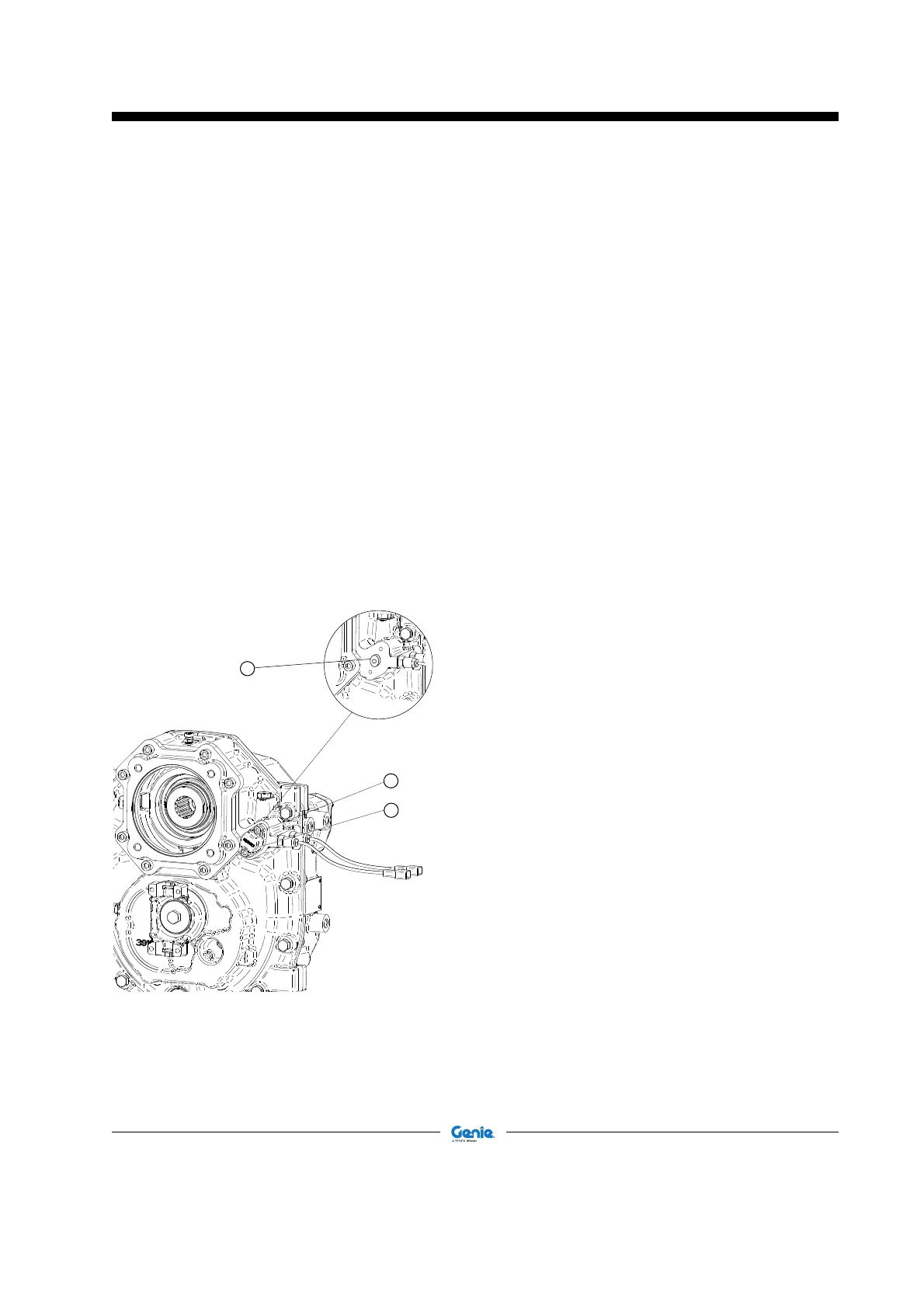

Setting the transmission to neutral
Do not tow the machine without setting the
transmission to neutral.
To set the transmission to neutral:
• Unscrew the screw M8X25 1
• Remove the Cover 2
• Move pin n°3 with a M10 extractor
until both switches are activated
• Reassemble the components. Tightening torque
of screw n 1 is 23Nm (+5%/-15%)
This emergency operation must be performed with
the engine turned off and on level ground.
