Part No. 57.0009.0607 GTH 4016 R - GTH 4018 R - GTH-5021 R 79
Transport and Lifting Instructions
Observe and Obey:
R Only qualified riggers should rig the machine.
R Only certified crane operators should lift the
machine and only in accordance with the
applicable crane regulations.
R Be sure the crane capacity, loading surfaces
and straps or lines are sufficient to withstand
the machine weight. See the serial label for the
machine weight.
Lifting Instructions
Fully lower and retract the boom.
Retract the outriggers.
Lock the slewing upper structure.

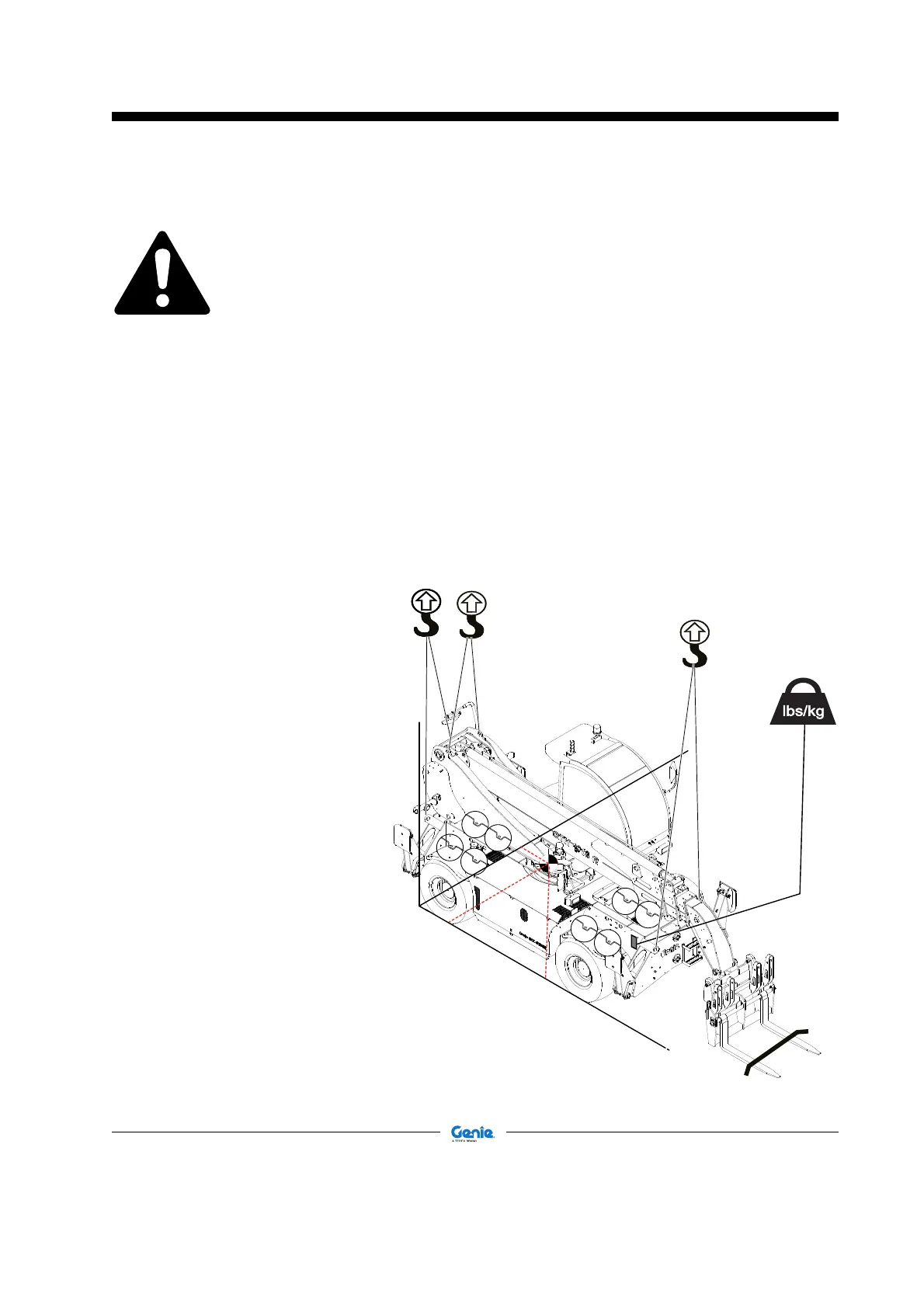

Determine the center of gravity of your machine
using the picture on this page.
Remove all loose items on the machine.
Attach the rigging only to the designated lifting
points on the machine.
Adjust the rigging to prevent damage to the
machine and to keep the machine level.
GTH 4016 R
A 1292 mm Height from ground
B 892 mm Rear Offset
C 1236 mm Side Offset
A
B
C
GTH 4018 R
A 1385 mm Height from ground
B 900 mm Rear Offset
C 1236 mm Side Offset
